55.32.8.024.0000 Finder Control Relays

55.32.8.024.0000 on Advantage Electric Supply
Finder

Part#:55.32.8.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 17, 2025

Product description

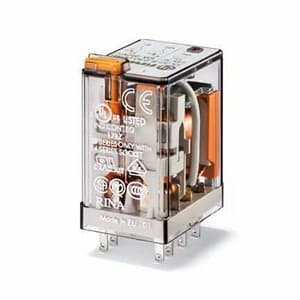

Finder 55.32.8.024.0000 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation at 500VA (230Vac) and for storage at 2500VA (250Vac). The rated voltage for AC operation is specified with a wide ambient temperature range of -40 to +85 degrees Celsius. It features a communication protocol of type C, protection functions rated at 250Vac, and a net depth of 37.2 mm. The control voltage (AC) withstands up to 4 kV, with mounting dimensions of 27.7 mm by 20.7 mm, and a color code for 24Vac (50Hz/60Hz) supply. The relay is designed for plug-in mounting, has 2 poles, and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

Product Details

  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Product series / family name
    55 Series
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Electrical durability (with load)
    200 000 operations
  • Main function
    Relay
  • Poles
    2 Pole(s)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+85 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Depth (mm)
    20.7 mm
  • Primary brand
    Finder
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    37.2 mm
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Mounting mode
    Plug-in
  • Net Width (mm)
    27.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

55.32.8.024.0000 Related Documents

Finder - 55 Series - Catalogue.pdf
