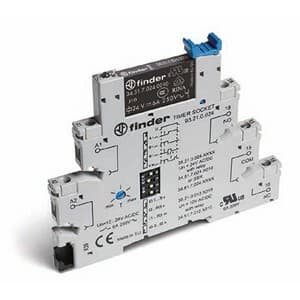

38.21.0.024.0060 Finder Control Relays

Name: 38.21.0.024.0060
Brand: Finder

38.21.0.024.0060 on Advantage Electric Supply

Part#:38.21.0.024.0060

Manufacturer:Finder

Product Lifecycle:Active

In-stock parts: 6

Sep 30, 2024

Finder 38.21.0.024.0060 is a relay with a box-clamp connection type, designed for a rated current of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower current ratings of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), supporting an ambient air temperature for operation with a capacity of 1500VA at 250Vac (AC-1) and an ambient air temperature for storage ranging from -40 to +70 degrees Celsius. The rated voltage for AC operations is categorized under type C, with a rated impulse voltage (Uimp) of 4 kV. This relay features a net width of 24Vdc, poles rated at 250Vac, and a net depth indicating a control voltage of 6.2 mm for AC. It is designed for mounting on a DIN rail or through plug-in, with a single pole configuration and a power consumption specified for 24Vac (50Hz/60Hz). The color is standardized for this type of component, and it is protected according to EN61984 standards. The mechanical durability is enhanced by AgNi (Silver Nickel) contacts, ensuring compatibility with a wide range of automation applications.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Advantage Electric Supply site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 38.21.0.024.0060 Finder price in the box on the right side or send a quick quote.

Product Details

Primary brand
Finder
Product series / family name
38 series
Control Voltage (AC)
24Vac (50Hz/60Hz)
Poles
1 Pole(s)
Contents
(Socket) 93.21.0.024 (Relay) 34.51.7.024.0010
Contacts coating
AgNi (Silver Nickel)
Rated current
6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
Mounting mode
DIN rail Plug-in
Compliant with standard(s)
cURus EAC CE EN 60664-1 EN 60715 EN 61810-1 EN 61984
Net Width (mm)
6.2 mm
Main function
Relay
Rated voltage (AC)
250Vac
Control Voltage (DC)
24Vdc
Ambient air temperature for operation
-40...+70 °C
Mounting location
EN61984
Connection type
Box-clamp
Degree of protection
IP20
Rated impulse voltage (Uimp)
4 kV
Rated power
1500VA (250Vac; AC-1)
Contacts type
1C/O / SPDT (Single Pole Double Throw)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Relevant products

55.32.9.024.0080

Verified stock: 12

Finder 55.32.9.024.0080 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower currents of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and can handle ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay is rated for 500VA at 230Vac (AC-15) and 2500VA at 250Vac (AC-1), with a rated voltage of 24Vdc and a control voltage of 4 kV. It features a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm by 20.7 mm, and is designed for plug-in mounting. The relay has a power consumption for 2 poles, uses a diode for its cross-section, and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

Finder

55.32.8.120.0050

Verified stock: 16

Finder 55.32.8.120.0050 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage of 4 kV and a rated active power of 2 poles. It has a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption width of 20.7 mm. The relay is designed for plug-in mounting and can handle up to 200,000 operations for Normally Closed (NC) circuits and 20,000,000 operations overall. The contact material is AgNi (Silver Nickel).

Finder

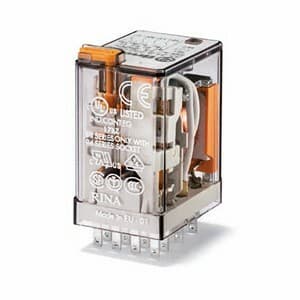

55.34.9.024.5080
