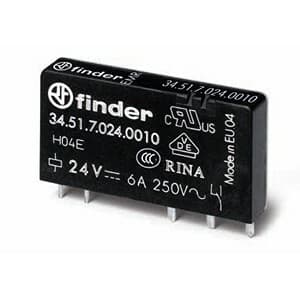

34.51.7.024.0010 Finder Control Relays

Finder 34.51.7.024.0010 Finder 34.51.7.024.0010 is a relay with a solder pin connection type, designed for various rated currents including 6A at 250Vac (AC-1), 3A at 30Vdc (DC-1), 0.2A at 110Vdc (DC-1), and 0.12A at 220Vdc (DC-1) with Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw) and can handle ambient air temperatures for operation and storage of -40 to +85 degrees Celsius. The relay is rated for 250VA at 230Vac (AC-15) and 1500VA at 250Vac (AC-1) with a speed of 0.17W. Its rated voltage for AC applications is supported by a control voltage of 6 kV and a rated active power of 1 Pole(s). The relay features protection functions at 250Vac, a communication protocol of C, and a net width of 24Vdc. It is designed for PCB or plug-in mounting with a response time of 0.17 W and is capable of 60,000 operations. The relay's contacts are made of AgNi (Silver Nickel).
Finder

Part#:34.51.7.024.0010

Manufacturer:Finder

Product Lifecycle:Active

In-stock parts: 1

Sep 19, 2024

Finder 34.51.7.024.0010 is a relay with a solder pin connection type, designed for various rated currents including 6A at 250Vac (AC-1), 3A at 30Vdc (DC-1), 0.2A at 110Vdc (DC-1), and 0.12A at 220Vdc (DC-1) with Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw) and can handle ambient air temperatures for operation and storage of -40 to +85 degrees Celsius. The relay is rated for 250VA at 230Vac (AC-15) and 1500VA at 250Vac (AC-1) with a speed of 0.17W. Its rated voltage for AC applications is supported by a control voltage of 6 kV and a rated active power of 1 Pole(s). The relay features protection functions at 250Vac, a communication protocol of C, and a net width of 24Vdc. It is designed for PCB or plug-in mounting with a response time of 0.17 W and is capable of 60,000 operations. The relay's contacts are made of AgNi (Silver Nickel).

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Advantage Electric Supply site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 34.51.7.024.0010 Finder price in the box on the right side or send a quick quote.

Product Details

  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Rated power
    250VA (230Vac; AC-15) 1500VA (250Vac; AC-1) 0.17W
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Ambient air temperature for operation
    -40...+85 °C
  • Degree of protection
    RT II
  • Rated impulse voltage (Uimp)
    6 kV
  • Contacts coating
    AgNi (Silver Nickel)
  • Primary brand
    Finder
  • Poles
    1 Pole(s)
  • Mounting mode
    PCB Plug-in
  • Electrical durability (with load)
    60 000 operations
  • Product series / family name
    34 series
  • Rated current
    6A (250Vac; AC-1) 3A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Connection type
    Solder pin
  • Control Voltage (DC)
    24Vdc
  • Compliant with standard(s)
    cURus CCC RINA VDE EAC EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61810-1 EN 62314
  • Power consumption
    0.17 W

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 34.51.7.024.0010 Specs

34.51.7.024.0010 Finder - 34 Series - Catalogue.pdf

This item can ship within 24h!

Manufacturer warranty

$6.75

Stock:

1

Select Qty:

$6.75

$6.75 each
