62.23.9.012.0000 Finder Control Relays

62.23.9.012.0000 on Advantage Electric Supply
Finder

Part#:62.23.9.012.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

8 in stock

Apr 17, 2025

Product description

Finder 62.23.9.012.0000 is a relay with solder pin connection type, designed for a rated current of 16A at 250Vac (AC-1) and 16A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.4A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage from -40 to +70 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage (AC) of 4 kV and is rated for active power (kW) for 3 poles. It features PCB residual current sensitivity, is designed for up to 100,000 operations for Normally Closed (NC) circuits, and can endure up to 30,000,000 operations overall. The relay's contacts are made from AgCdO (Silver Cadmium Oxide), indicating its suitability for a wide range of applications.

Product Details

  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.4A (220Vdc; DC-1)
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+70 °C
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Main function
    Relay
  • Control Voltage (DC)
    12Vdc
  • Electrical durability (with load)
    100 000 operations
  • Product series / family name
    62 series
  • Poles
    3 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60664-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Mounting mode
    PCB
  • Mechanical durability (at no load)
    30 000 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

62.23.9.012.0000 Related Documents

Finder - 62 Series - Catalogue.pdf

Similar products from: Finder Control Relays

40.52.7.024.0000 on Advantage Electric Supply

40.52.7.024.0000

Finder

Finder 40.52.7.024.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for both operation and storage. This relay has a rated voltage of 250Vac, a control voltage of 6 kV, and is designed for PCB or plug-in mounting. It features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 0.5 W. The visual position indicator has a 5.3mm pins pitch, and the relay is capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The relay's poles are rated for 24Vdc, with a protection function of 250Vac, and it has a response time of 0.5 W.

4 in stock
99.02.0.230.98 on Advantage Electric Supply

99.02.0.230.98

Finder

Finder 99.02.0.230.98 is a suppressor module designed for use with a rated voltage of 110-240Vdc and a control voltage of 110-240Vac. It features a plug-in connection type and is characterized by its white power consumption indicator.

3 in stock
56.32.9.024.0000 on Advantage Electric Supply

56.32.9.024.0000

Finder

Finder 56.32.9.024.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation and has a rated voltage for AC operations. The relay supports a communication protocol of C, is designed for use with a control voltage (AC) of 24Vdc, and offers protection functions at 250Vac with a control voltage (AC) withstand of 4 kV. It is rated for an active power of 2 poles, features plug-in residual current sensitivity, and is capable of 100,000 operations for Normally Closed (NC) circuits. The relay's contacts are made from AgNi (Silver Nickel), ensuring durability for up to 50,000,000 operations.

1 in stock
56.34.9.024.0000 on Advantage Electric Supply

56.34.9.024.0000

Finder

Finder 56.34.9.024.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), operates within an ambient air temperature range of -40 to +70 degrees Celsius for both operation and storage, and has a rated voltage of 24Vdc. The relay is equipped with protection functions rated at 250Vac, a control voltage (AC) of 4 kV, and a rated active power of 4 poles. It features a plug-in design for residual current sensitivity, is capable of 100,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contacts are made of AgNi (Silver Nickel), ensuring compatibility with various applications.

4 in stock
55.34.9.024.5080 on Advantage Electric Supply

55.34.9.024.5080

Finder

Finder 55.34.9.024.5080 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), and is rated for ambient air temperatures between -40 and +85 degrees Celsius for operation, and has a rated voltage for AC operations. The relay supports a control voltage (AC) of 4 kV, mounts with a net depth of 37.2 mm, and has a rated active power for 4 poles. Its power consumption is specified, with a plug-in mounting mode, and it utilizes a diode for its cross-section. The relay is designed for up to 150,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contacts are made of AgNi+Au (Gold plated silver-nickel), indicating the materials used for enhanced conductivity and durability.

10 in stock
56.32.8.024.0000 on Advantage Electric Supply

56.32.8.024.0000

Finder

Finder 56.32.8.024.0000 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower currents of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is rated for ambient air temperatures between -40 and +70 degrees Celsius for operation, and has a control voltage (AC) of 24Vac (50Hz/60Hz). The relay features a protection function of 250Vac and a control voltage (AC) of 4 kV. It is designed for a rated active power of 2 poles, with a plug-in design for residual current sensitivity. The relay is capable of 100,000 operations for Normally Closed (NC) circuits and has a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

3 in stock

Manufacturer warranty

62.23.9.012.0000 Finder

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

8

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 62.23.9.012.0000 with other Control Relays products

Rated current

Connection type

Ambient air temperature f...

Contacts coating

Primary brand

Rated voltage (AC)

Contacts type

Rated impulse voltage (Ui...

Main function

Control Voltage (DC)

Selected product

62.23.9.012.0000
8 in stock
62.23.9.012.0000
Finder

Finder 62.23.9.012.0000 is a relay with solder pin connection type, designed for a rated current of ...

Rated current16A (250Vac; AC-1) 16A (30Vd...

Connection typeSolder pin

Ambient air temperature for operation-40...+70 °C

Contacts coatingAgCdO (Silver Cadmium Oxide)...

Primary brandFinder

Rated voltage (AC)250Vac

Contacts type3C/O / 3PDT (3 Pole Double T...

Rated impulse voltage (Uimp)4 kV

Main functionRelay

Control Voltage (DC)12Vdc

60.13.9.024.0070
18 in stock
60.13.9.024.0070
Finder

Finder 60.13.9.024.0070 is a relay with a solder pin connection type, designed for a rated current o...

Rated current10A (250Vac; AC-1) 10A (30Vd...

Connection typeSolder pin

Ambient air temperature for operation-40...+70 °C

Contacts coating-

Primary brandFinder

Rated voltage (AC)250Vac

Contacts type3C/O / 3PDT (3 Pole Double T...

Rated impulse voltage (Uimp)-

Main functionRelay

Control Voltage (DC)24Vdc

55.33.9.024.0010
20 in stock
55.33.9.024.0010
Finder

Finder 55.33.9.024.0010 is a relay with solder pin connection type, designed for a rated current of ...

Rated current10A (250Vac; AC-1) 10A (30Vd...

Connection typeSolder pin

Ambient air temperature for operation-40...+85 °C

Contacts coating-

Primary brandFinder

Rated voltage (AC)250Vac

Contacts type3C/O / 3PDT (3 Pole Double T...

Rated impulse voltage (Uimp)-

Main functionRelay

Control Voltage (DC)24Vdc

About the manufacturer

Finder

Advantage Electric Supply is an authorized Finder distributor, proud to partner with a renowned manufacturer that specializes in providing innovative and high-quality industrial automation and electromechanical products. Finder has carved its niche in the industry by offering an extensive range of reliable components designed to meet diverse automation and electrical control needs. With over 65 ye...

Recently viewed products

Relevant products

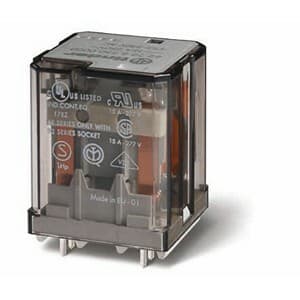

62.23.9.012.4000 on Advantage Electric Supply

62.23.9.012.4000

Verified stock: 0

Finder 62.23.9.012.4000 is a relay with a solder pin connection type, designed for a rated current of 16A at 250Vac (AC-1) and 16A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.4A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation and has a rated voltage for AC applications. The relay supports a communication protocol labeled as 'C', has 12Vdc poles, and offers protection functions at 250Vac. Its control voltage (AC) is rated at 4 kV, with a rated active power of 3 poles. The relay's design includes PCB for residual current sensitivity, is capable of 100,000 operations for Normally Closed (NC) circuits, and has a durability of 30,000,000 operations. The contact material is AgSnO2 (Silver / Tin Oxide), indicating its suitability for a wide range of applications.

Finder

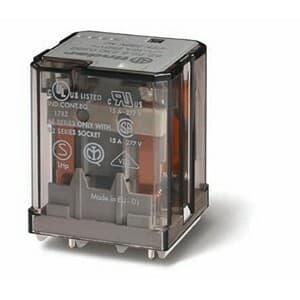

62.23.9.024.0300 on Advantage Electric Supply
