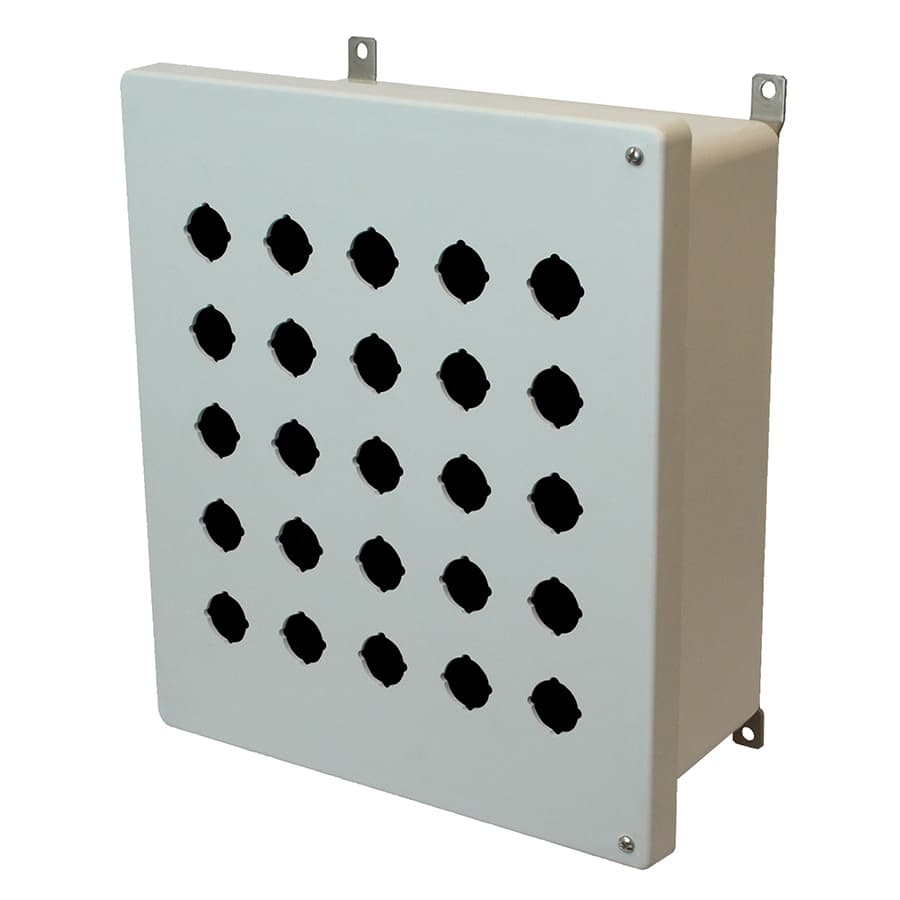

AM1426HP25 Allied Moulded Products Pushbutton Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  12.26 in
• Height
  14.14 in
• Depth
  6.01 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• Material:
  ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
• Application:
  Designed to protect push-button switches from damage and wear, these enclosures have holes for mounting push buttons and an internal compartment to house associated wires and mechanisms. Push buttons are often used for operating industrial machines or pro
• UNSPSC:
  39121326
• UPC:
  85339914372
• Country of Origin:
  United States of America
• Color:
  Gray (RAL 7035)
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Carton Quantity:
1
Carton Weight:
9 lbs
Brand:
AM Series
Closure Type:
2-Screw
Depth:
6.01 in
Volume:
1062 cu. in.
Usable Depth:
5.71 in
Mounting Description:
Stainless steel feet fastened to back side brass inserts
Cover Type:
Opaque
Enclosure Type:
Pushbutton
Width:
12.26 in
Height:
14.14 in

Related documents AM1426HP25 Specs
