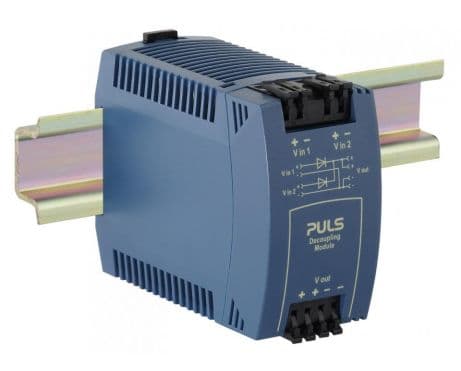

PULS MLY02.100 is a redundancy unit featuring a dual-input redundancy module with 2 inputs and 1 output, designed for DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C using diode technology. The unit has a rated current of 10A at 48Vdc, with a derating to 0.25A for temperatures between +60°C and +70°C. Connection is facilitated through spring-clamp connections. The dimensions of the MLY02.100 are 45mm in width, 75mm in height, and 91mm in depth. It supports a supply voltage range from 9Vdc to 60Vdc, accommodating 12Vdc, 24Vdc, and 48Vdc systems, with an output voltage range of 12-48Vdc. The unit is equipped with short-circuit protection, featuring a 16A threshold at 6V. Power dissipation at nominal load is 4W, and it boasts an electrical durability of a minimum of 218,000 hours at +40°C. Ripple is specified at 800mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

PULS YR40.241 is a redundancy unit belonging to the Y-series, designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy configurations and ATEX approval. It operates with a supply voltage range of 8.4Vdc to 36.4Vdc, supporting nominal voltages of 12Vdc and 24Vdc. The unit measures 36mm in width, 124mm in height, and 127mm in depth, featuring screw-clamp connections for secure installation. It is rated for a current of 40A at 28Vdc and is suitable for DIN rail mounting. The YR40.241 can operate in ambient air temperatures ranging from -40 to +70°C. It has a peak inrush current consumption of 1000A at input voltages between 8.4 and 36.4Vdc. Protection functions include short-circuit protection with a 65A threshold at 6V. The unit supports series or parallel operation for 1+1 redundancy, utilizing two identical power supplies, or N+1 redundancy with three or more power supplies, ensuring isolation between power supply outputs. The output voltage range is 12-28Vdc, with nominal values of 12Vdc and 24Vdc. Power dissipation losses are 2.15W for inputs of 2x10A and 2.65W for a 20A input. Electrical durability is rated at 553,000 hours at 40°C with a 20A output from 2x10A inputs, and 1,563,000 hours at 25°C with a 40A output from 2x10A inputs. The output stage capacitance is 320µF, with a ripple of 72mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

PULS YR40.482 is a redundancy unit belonging to the Y-series, designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy configurations and ATEX approval. It operates with a supply voltage range of 20.4Vdc to 64.4Vdc, supporting nominal voltages of 24Vdc, 48Vdc, and 60Vdc. The unit measures 46mm in width, 124mm in height, and 127mm in depth, featuring screw-clamp connections for secure installation. It is rated for a current of 40A at 56Vdc, with a derating to 1A at temperatures ranging from +60°C to +70°C. Designed for DIN rail mounting, it can function within an ambient air temperature range of -40°C to +70°C. The YR40.482 has a peak inrush current consumption of 1000A and offers protection functions including short-circuit protection with a 45A threshold at 6V. It supports both series and parallel operation for 1+1 and N+1 redundancy, ensuring continuous operation by using two or more identical power supplies in parallel. The output voltage range is 24-56Vdc, with power dissipation/losses of 1.8W for 2x10A input and 2.3W for 20A input. Its electrical durability is rated at 448000 hours at 40°C for 20A output with 2x10A input and 222000 hours for 40A output with 2x20A input. At 25°C, durability extends to 1267000 hours for 20A output with 2x10A input and 629000 hours for 40A output with 2x20A input. The output stage capacitance is 310 µF, with a ripple of 60mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

PULS YR80.242 is a redundancy unit from the Y-series designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy and ATEX approval. It operates with a supply voltage range of 8.4Vdc to 36.4Vdc, supporting nominal voltages of 12Vdc and 24Vdc. The unit measures 46mm in width, 124mm in height, and 127mm in depth, featuring screw-clamp connections for secure installation. It is rated for a current of 80A at 28Vdc, with a derating to 2A at temperatures ranging from +60°C to +70°C. Designed for DIN rail mounting, it can operate within an ambient air temperature range of -40°C to +70°C. The YR80.242 has a peak inrush current consumption of 1500A and offers protection functions including short-circuit protection with a 44A threshold at 6V. It supports series or parallel operation for 1+1 redundancy, utilizing two identical power supplies, or N+1 redundancy with three or more power supplies, ensuring continued operation following most single power supply failures. The output voltage is maintained between 12-28Vdc, with power dissipation/losses of 2.9W for 2x20A input and 4.6W for 40A input at 8.4-36.4Vdc. Its electrical durability is rated at 499,000 hours at 40°C with a 40A output from 2x20A input, and 1,410,000 hours at 25°C with an 80A output from 2x20A input. The output stage capacitance is 320µF, with a ripple of 65mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

PULS YR20.246 is a redundancy unit from the Y-series designed for dual-input redundancy (2 x inputs + 1 x output) with a built-in decoupling MOSFET, suitable for 1+1 or N+1 redundancy configurations and has ATEX approval. It operates with a supply voltage range of 18Vdc-35Vdc (24Vdc nominal) and supports a rated current of 20A at 48Vdc. The unit features screw-clamp connections for secure installation and is designed for DIN rail mounting. It can operate within an ambient air temperature range of -40 to +70°C. The dimensions of the unit are W32mm x H124mm x D117mm. It includes protection functions against short-circuits, with a threshold of 26A at 6V, and supports series or parallel operation for redundancy. The output voltage range is 24-48Vdc (24Vdc / 48Vdc nominal), with power dissipation/losses varying between 2.6 W and 5.6 W depending on the input conditions. The electrical durability of the unit ranges from 182,000 to 1,053,000 hours, depending on the operating conditions. The output stage capacitance is 320 µF, and the ripple is specified as 100-500mVpp (20Hz...20MHz; 50Ω).

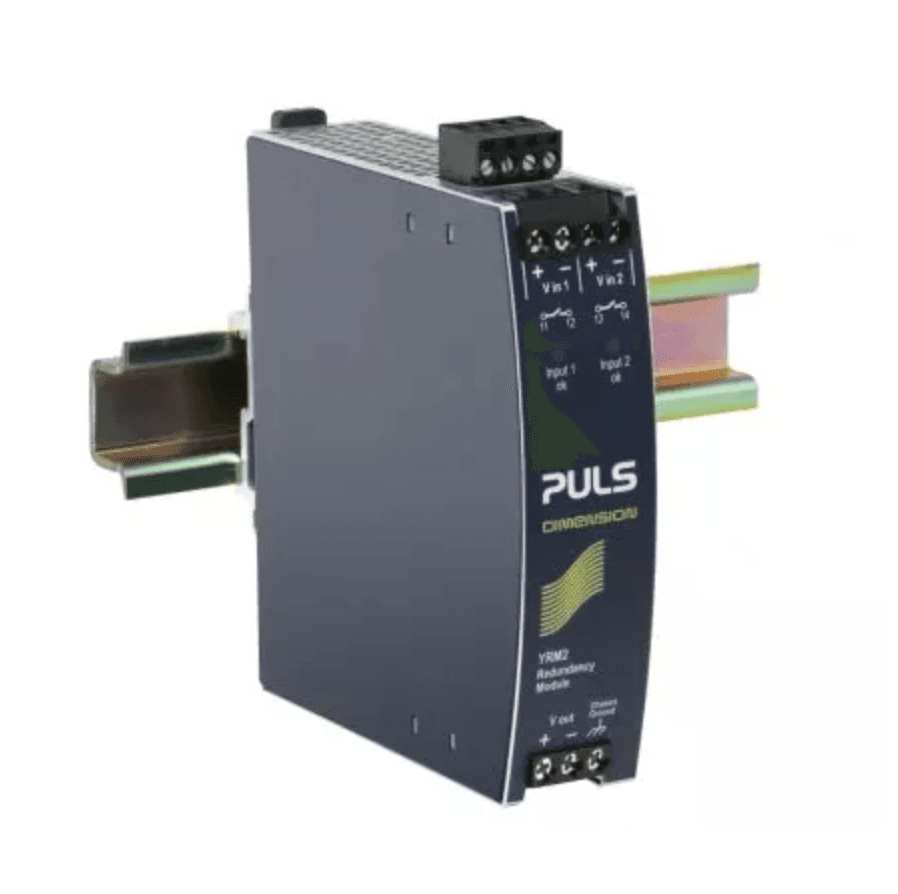

PULS YRM2.DIODE is a redundancy unit belonging to the Y-series, designed with diode technology and ATEX approval for enhanced safety in potentially explosive atmospheres. This dual-input redundancy module supports 2 x inputs and 1 x output, operating within a supply voltage range of 18Vdc-60Vdc, including nominal values of 24Vdc, 48Vdc, and 60Vdc. It features screw-clamp connections for secure installation and is designed for DIN rail mounting, ensuring compatibility with standard industrial setups. The unit is capable of handling a rated current of 20A at 48Vdc, with a derating to 0.5A in temperatures ranging from +60°C to +70°C. It can withstand ambient air temperatures for operation between -40°C and +70°C. The YRM2.DIODE measures 32mm in width, 124mm in height, and 117mm in depth, with a peak inrush current consumption of 150A at 18-60Vdc input. It includes protection functions against short-circuits, with a 25A threshold at 6V, and supports both series/parallel operation for 1+1 redundancy and N+1 redundancy, ensuring continuous operation by using multiple power supplies in parallel. The output voltage range is 24-48Vdc, with nominal values of 24Vdc and 48Vdc. Power dissipation/losses are rated at 8.8W for 18-60Vdc input with 2x5A input and 9.5W for a 10A input. The electrical durability of the unit is estimated at 25 years or 219,000 hours at both 40°C with a 20A output and 25°C with a 10A output. Lastly, the ripple is specified at 780mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

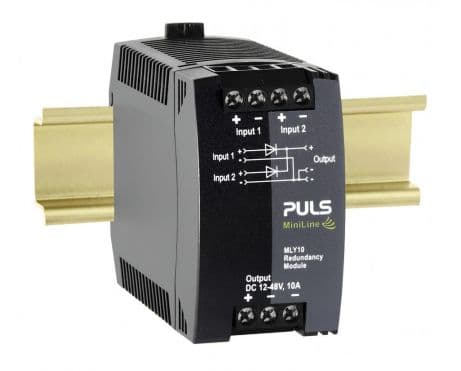

PULS MLY10.241 is a redundancy unit featuring dual-input redundancy module technology with 2 inputs and 1 output, designed for DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C using diode technology. The unit has a rated current of 10A at 48Vdc, with a derating to 0.25A between +60°C and +70°C. It offers screw-clamp connections for secure installation and measures W45mm x H75mm x D91mm. The supply voltage range is 9Vdc to 60Vdc, accommodating 12Vdc, 24Vdc, and 48Vdc systems, with an output voltage range of 12-48Vdc. It includes short-circuit protection with a 16A threshold at 6V, power dissipation/losses at nominal load are 4W, and it boasts an electrical durability of 218,000 hours at +40°C. Ripple is specified at 800mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

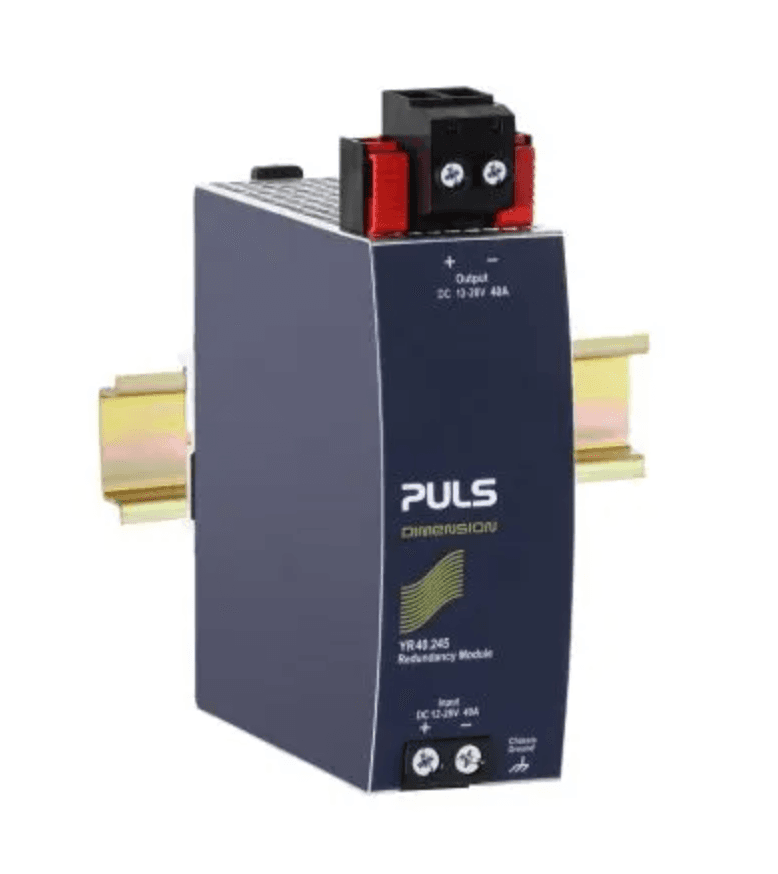

PULS YR40.245 is a redundancy unit within the Y-series, designed for single-input redundancy module applications, featuring 1 x input and 1 x output with built-in decoupling MOSFETs suitable for 1+1 or N+1 redundancy configurations. It has ATEX approval for hot-swappable connectors and operates on a supply voltage range of 8.4Vdc to 36.4Vdc, with nominal voltages of 12Vdc and 24Vdc. The unit measures 46mm in width, 124mm in height, and 127mm in depth, and utilizes screw-clamp connections for secure installation. It is rated for a current of 40A at 28Vdc, with a derating to 1A at temperatures ranging from +60°C to +70°C. Designed for DIN rail mounting, it can operate in ambient air temperatures from -40°C to +70°C. The YR40.245 has a peak inrush current consumption of 1500A and offers protection functions including short-circuit protection with a 22A threshold at 6V. It supports both series and parallel operation for 1+1 and N+1 redundancy, ensuring continued operation through the use of two or more identical power supplies in parallel. The output voltage range is 12-28Vdc, with power dissipation/losses of 1.8W at 20A input and 6.2W at 40A input. Its electrical durability is rated at 557,000 hours at 40°C and 20A output, and 1,576,000 hours at 25°C and 40A output. The output stage capacitance is 320µF, with a ripple of 80mVpp at 1x20A and 150mVpp at 40A, across a frequency range of 20Hz to 20MHz at 50Ω.

PULS YR80.241 is a redundancy unit belonging to the Y-series, designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy and ATEX approval. It operates with a supply voltage range of 8.4Vdc to 36.4Vdc, nominally at 12Vdc or 24Vdc, and can handle a rated current of 80A at 28Vdc. The unit features screw-clamp connections for secure installation and is designed for DIN rail mounting. It operates efficiently within an ambient air temperature range of -40 to +70°C. The YR80.241 has dimensions of W46mm x H124mm x D127mm and a net width of 46 mm. It is capable of a peak inrush current consumption of 1500A and offers protection functions including short-circuit protection with a 130A threshold at 6V. This model supports both series and parallel operation for 1+1 redundancy, utilizing two identical power supplies, and N+1 redundancy, using three or more identical power supplies, with all outputs isolated by diodes or other switching arrangements. The output voltage range is 12-28Vdc, nominally at 12Vdc or 24Vdc. Power dissipation/losses are rated at 2.7 W for 8.4-36.4Vdc input with 2x20A input and 3.6 W for 40A input. Its electrical durability is notable, with up to 1450000 hours at 25°C for 80A output with 2x20A input. The output stage capacitance is 320 µF, and the ripple is measured at 49mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

PULS YR2.DIODE is a redundancy unit designed for dual-input redundancy module applications, featuring 2 inputs and 1 output based on diode technology with ATEX approval. It operates on a supply voltage range of 9Vdc to 60Vdc, with nominal voltages of 12Vdc, 24Vdc, and 48Vdc. The unit has dimensions of W32mm x H124mm x D102mm and utilizes spring-clamp connections for connectivity. It is rated for a current of 20A at 48Vdc, with a derating to 0.5A between +60°C and +70°C. Designed for DIN rail mounting, it can operate in ambient air temperatures ranging from -40°C to +70°C. The unit has a net width of 32 mm and a peak inrush current consumption of 150A at 9-60Vdc input. It includes protection functions such as short-circuit protection with a 25A threshold at 6V and supports both series/parallel operation for 1+1 redundancy and N+1 redundancy, requiring the use of identical power supplies in parallel. The output voltage range is 12-48Vdc, with power dissipation/losses of 7.8 W for 2x5A input and 17 W for 2x10A input at 9-60Vdc. Its electrical durability is rated at 25 years or 219,000 hours at 40°C for 20A output and 2x5A/10A input, with the same durability at 25°C for 10A output. The ripple is specified as 800mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
