30018ST3HIERB449T-W2 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 300 HP
- Rated Speed 1780 rpm
- Flange Type Without
- Terminal box¹ Left position
- Number of poles 4
- Flange Without
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
- Output rating 300 HP
- Voltage 575 V
- Approx. weight³ 2966 lb
- Enclosure IC411 - TEFC
- Noise level² 75.0 dB(A)
- Mounting F-1
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Degree of Protection IP56
- Starting Method Direct On Line
- Temperature rise 80 K
- Service factor 1.15
- Insulation Class F
- Moment of inertia (J) 89.6 sq.ft.lb
- Design B
- Breakdown torque 229 %
- Locked rotor time 28s (cold) 16s (hot)
- Locked rotor torque 229 %
- Rated torque 885 ft.lb
- No load current 76.0 A
- Slip 1.11 %
- LRC 6.5x(Code G)
- Rated speed 1780 rpm
- Frequency 60 Hz
- L. R. Amperes 1716 A
- Rated current 264 A
- Rated voltage 575 V
- Number of Poles 4
- Frame 447/9T
- Output 300 HP (220 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30018ST3HIERB449T-W2 Related Documents
Manufacturer warranty
30018ST3HIERB449T-W2 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

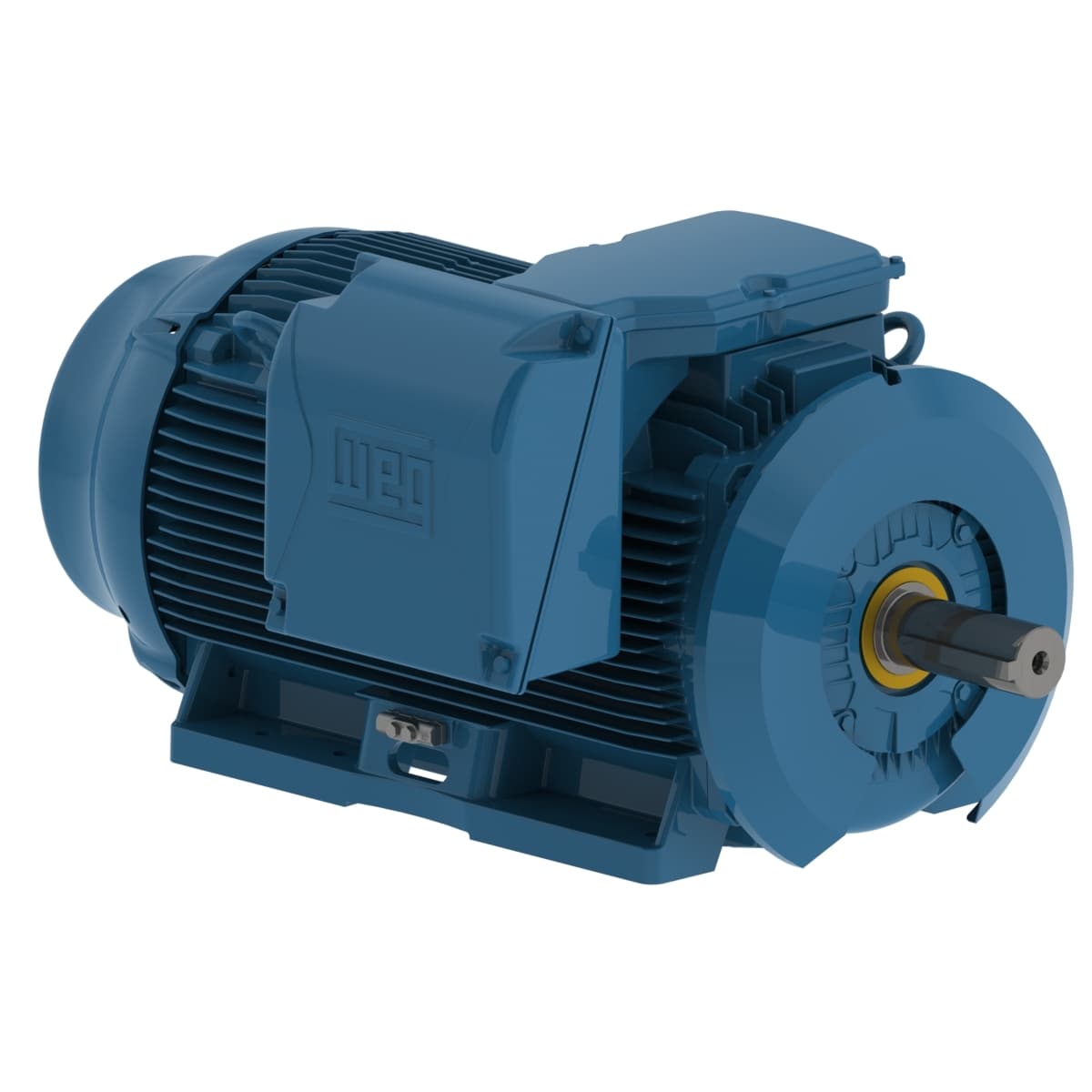

W22 IEEE 841 NEMA Premium Efficiency 300 HP 4P 447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
