30018ET3X5009-W50MV WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 2300 V
- Output Rating 300 HP
- Rated Speed 1782 rpm
- Flange Type Without
- Flange Without
- Output rating 300 HP
- Terminal box¹ Left position
- Mounting F-1
- Number of poles 4
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
- Noise level² 79.0 dB(A)
- Voltage 2300/4160 V
- Approx. weight³ 3797 lb
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Insulation Class F
- Service factor 1.00
- Moment of inertia (J) 114 sq.ft.lb
- Design A
- Locked rotor time 36s (cold) 20s (hot)
- Breakdown torque 210 %
- Rated torque 884 ft.lb
- L. R. Amperes 424 A
- No load current 22.0 A
- Locked rotor torque 140 %
- LRC 6.2x(Code G)
- Rated current 68.4 A
- Slip 1.00 %
- Rated voltage 2300 V
- Rated speed 1782 rpm
- Number of Poles 4
- Frequency 60 Hz
- Output 300 HP (220 kW)
- Frame 5009/10
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30018ET3X5009-W50MV Related Documents
Manufacturer warranty
30018ET3X5009-W50MV WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

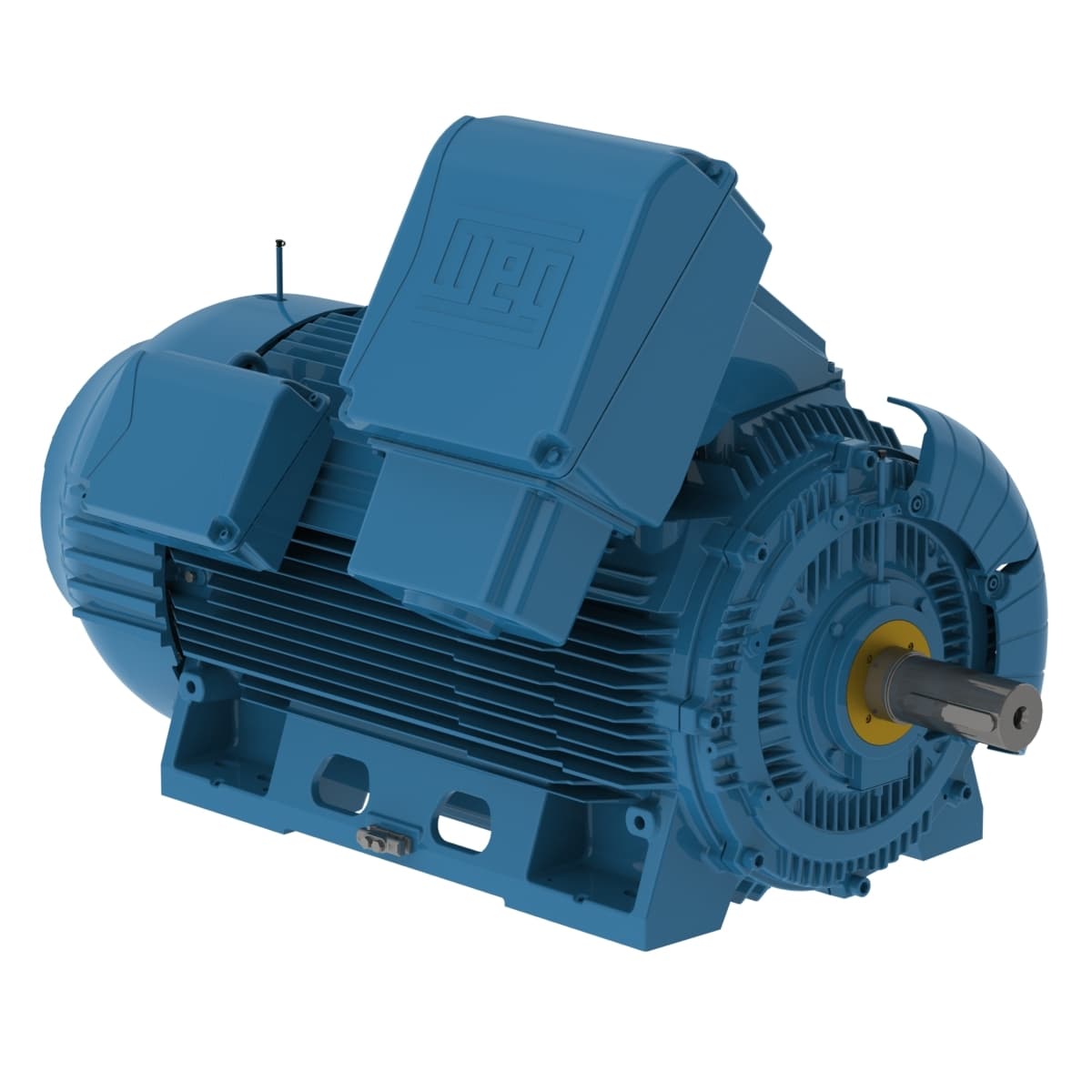

W50 300 HP 4P 5009/10 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted
