30009ET3GKD586/7-W22 WEG AC Motors
Product Details
- Number of Poles 8 Pole
- Voltage 460 V
- Output Rating 300 HP
- Rated Speed 895 rpm
- Flange Type Without
- Output rating 300 HP
- Number of poles 8
- Terminal box¹ Left position
- Synchronous speed 900 rpm
- Flange Without
- Voltage 460 V
- Standard NEMA MG-1
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Altitude 1000 m.a.s.l.
- Approx. weight³ 4518 lb
- Degree of Protection IP55
- Noise level² 75.0 dB(A)
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Locked rotor time 72s (cold) 40s (hot)
- Service factor 1.15
- Moment of inertia (J) 451 sq.ft.lb
- Locked rotor torque 200 %
- Breakdown torque 229 %
- Insulation Class F
- Rated torque 1760 ft.lb
- LRC 7.5x(Code H)
- No load current 150 A
- Slip 0.56 %
- Frame 586/7T
- Number of Poles 8
- Output 300 HP (220 kW)
- Rated current 356 A
- L. R. Amperes 2670 A
- Rated voltage 460 V
- Frequency 60 Hz
- Rated speed 895 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30009ET3GKD586/7-W22 Related Documents
Manufacturer warranty
30009ET3GKD586/7-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

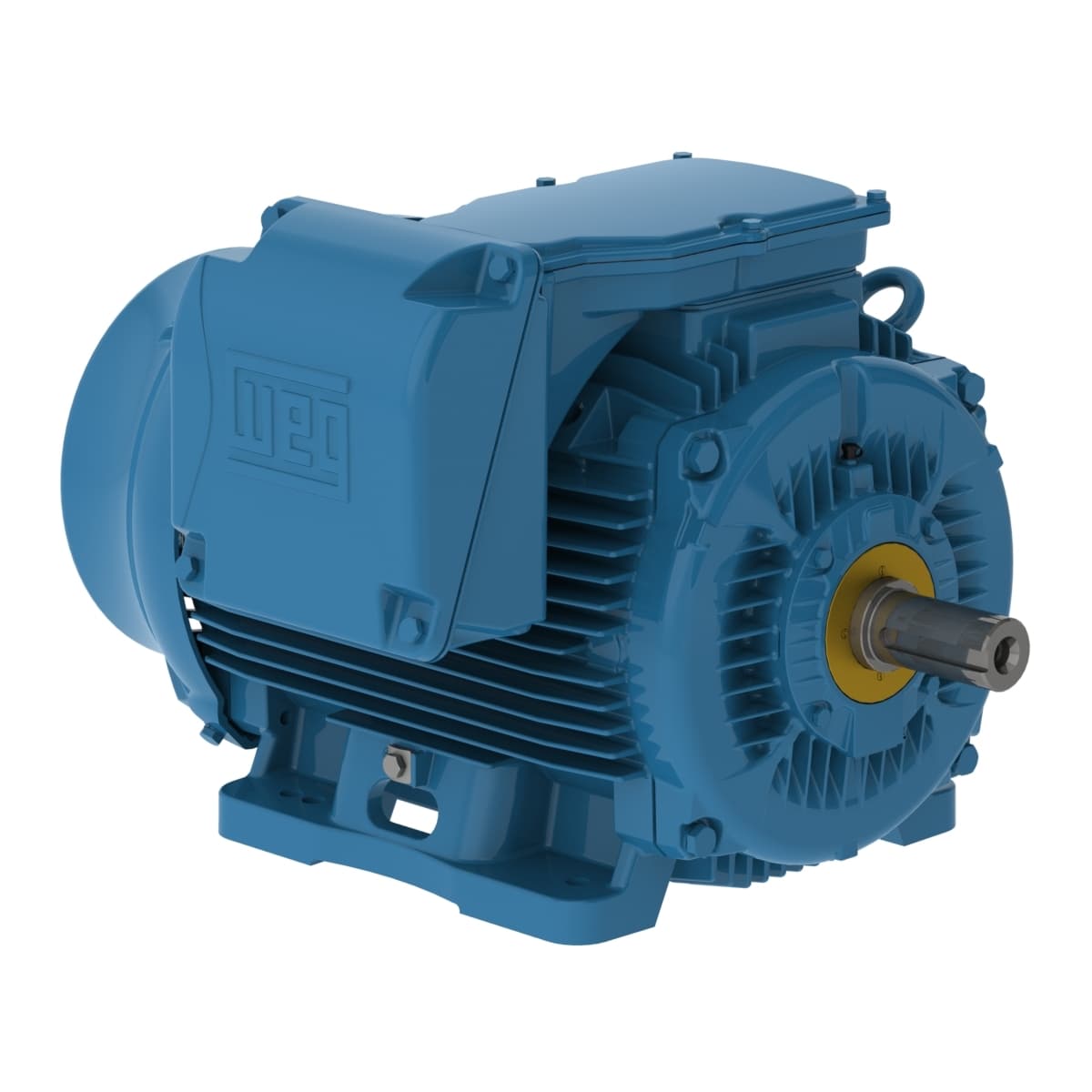

W22 NEMA Premium Efficiency 300 HP 8P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
