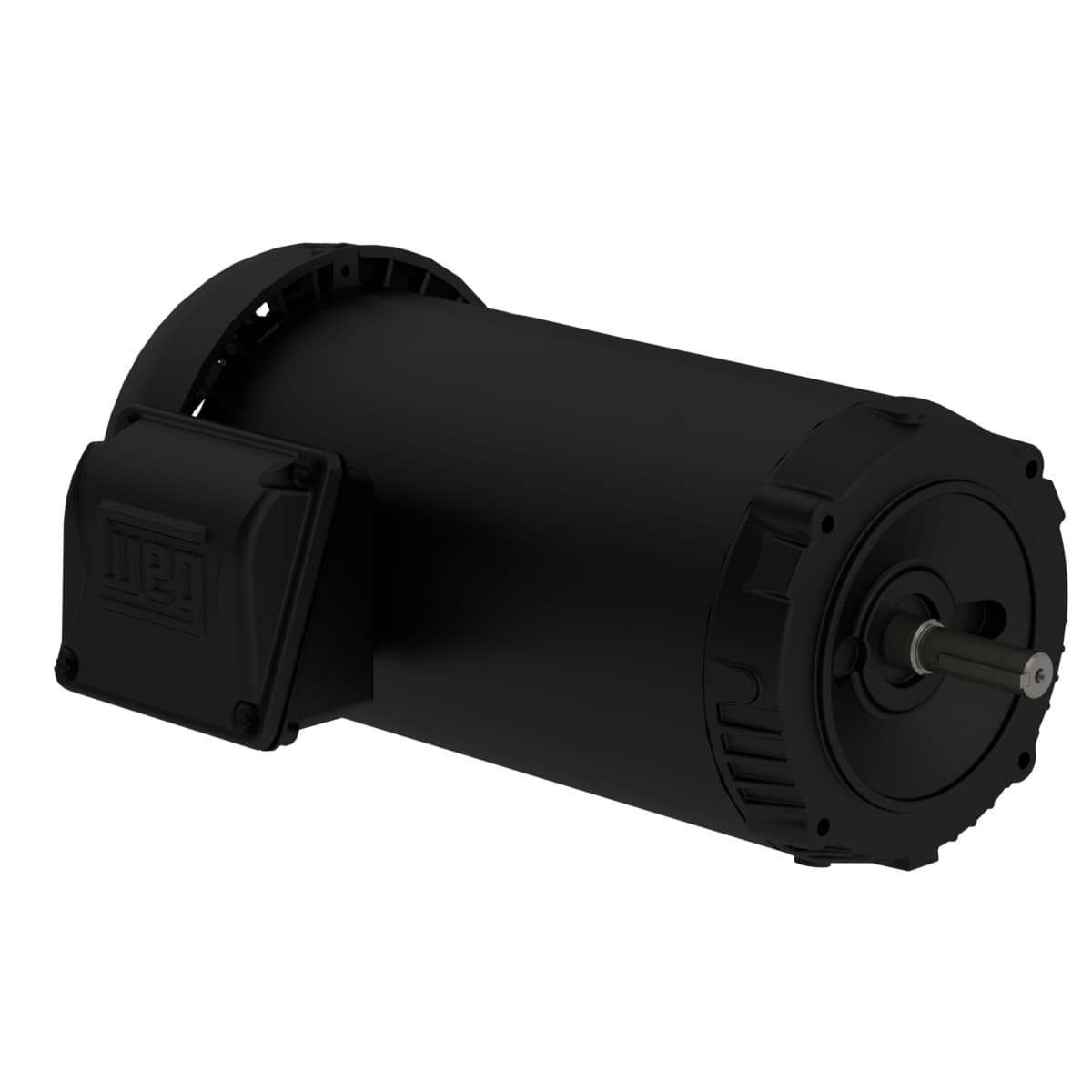

.5018ES3E56CFL-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 208-230/460 V
- Output Rating 0.5 HP
- Rated Speed 1760 rpm
- Flange Type C
- Flange C
- Output rating 0.5 HP
- Number of poles 4
- Voltage 208-230/460//190-220/380-415 V
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
- Terminal box¹ Left position
- Noise level² 52.0 dB(A)
- Degree of Protection IP55
- Approx. weight³ 21.2 lb
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Enclosure IC411 - TEFC
- Starting Method Direct On Line
- Insulation Class F
- Service factor 1.15 (1.00 @ 208V)
- Moment of inertia (J) 0.0584 sq.ft.lb
- Locked rotor time 36s (cold) 20s (hot)
- Temperature rise 80 K
- Breakdown torque 300 %
- Rated torque 1.49 ft.lb
- LRC 7.0x(Code L)
- Locked rotor torque 240 %
- No load current 1.03-1.20/0.600 A
- Rated speed 1760 rpm
- Output 0.5 HP (0.37 kW)
- L. R. Amperes 13.3-12.1/6.03 A
- Rated voltage 208-230/460 V
- Slip 2.22 %
- Frequency 60 Hz
- Rated current 1.91-1.72/0.862 A
- Number of Poles 4
- Frame 56C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
