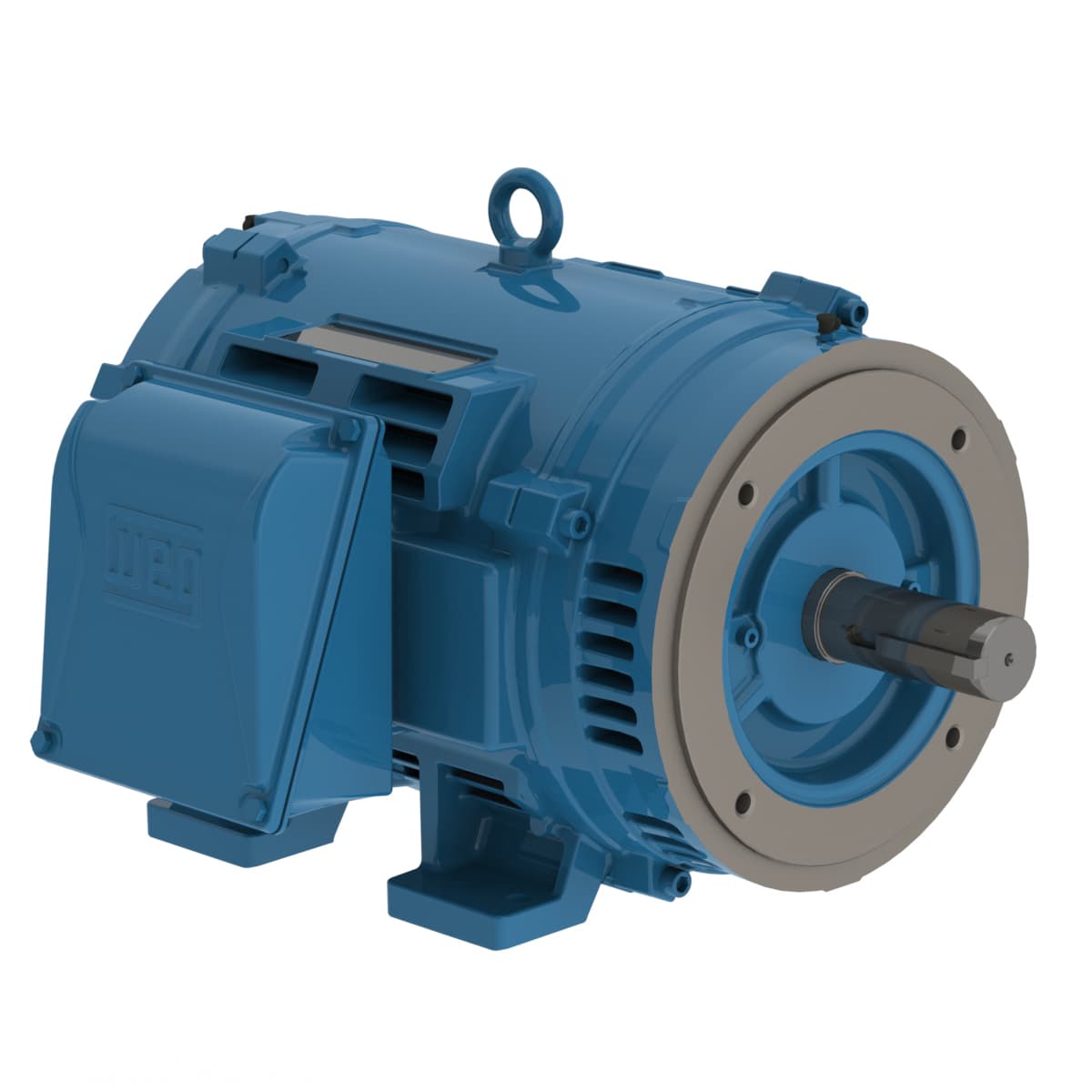

25036OT3G445TSC-W40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 250 HP
- Rated Speed 3570 rpm
- Flange Type C
- Number of poles 2
- Terminal box¹ Left position
- Synchronous speed 3600 rpm
- Flange C
- Voltage 460//380 V
- Output rating 250 HP
- Approx. weight³ 1428 lb
- Standard NEMA MG-1
- Noise level² 85.0 dB(A)
- Mounting F-1
- Enclosure IC01 - ODP
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Locked rotor torque 150 %
- Ambient temperature -20°C to +40°C
- Service factor 1.15
- Insulation Class F
- Design B
- Moment of inertia (J) 26.9 sq.ft.lb
- Breakdown torque 229 %
- Rated torque 368 ft.lb
- Locked rotor time 28s (cold) 16s (hot)
- Output 250 HP (185 kW)
- Number of Poles 2
- LRC 6.7x(Code G)
- No load current 72.0 A
- L. R. Amperes 1863 A
- Rated voltage 460 V
- Slip 0.83 %
- Frequency 60 Hz
- Rated speed 3570 rpm
- Rated current 278 A
- Frame 444/5TSC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
