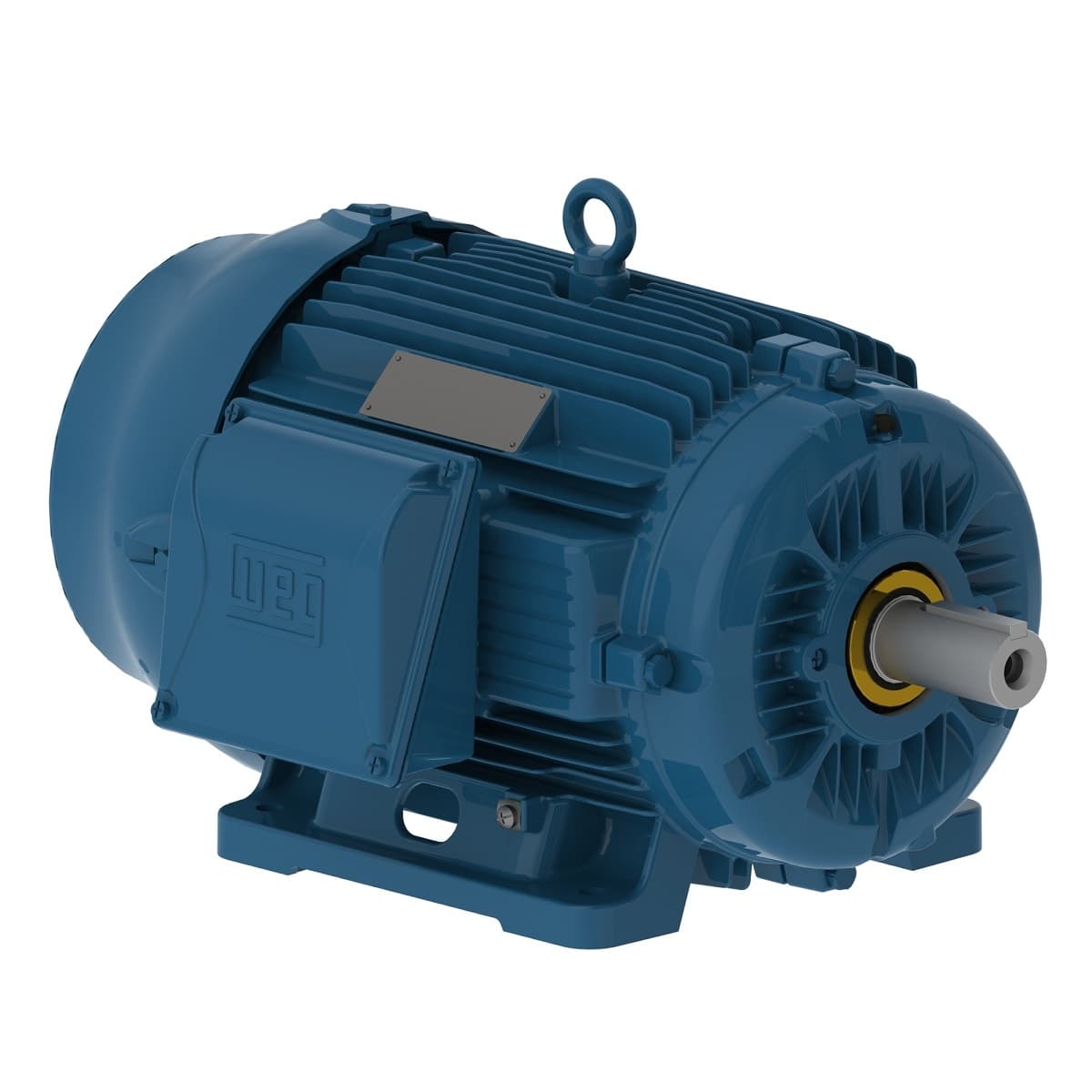

02018ST3HIE256T-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 20 HP
- Rated Speed 1770 rpm
- Flange Type Without
- Terminal box¹ Left position
- Output rating 20 HP
- Flange Without
- Synchronous speed 1800 rpm
- Approx. weight³ 347 lb
- Noise level² 64.0 dB(A)
- Voltage 575 V
- Number of poles 4
- Standard NEMA MG-1
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Enclosure IC411 - TEFC
- Degree of Protection IP56
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Insulation Class F
- Service factor 1.25
- Moment of inertia (J) 3.10 sq.ft.lb
- Design B
- Locked rotor time 41s (cold) 23s (hot)
- No load current 7.04 A
- Breakdown torque 250 %
- Locked rotor torque 240 %
- Rated voltage 575 V
- Rated torque 59.3 ft.lb
- LRC 6.5x(Code G)
- Rated current 19.3 A
- L. R. Amperes 125 A
- Frame 254/6T
- Frequency 60 Hz
- Rated speed 1770 rpm
- Output 20 HP (15 kW)
- Slip 1.67 %
- Number of Poles 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
