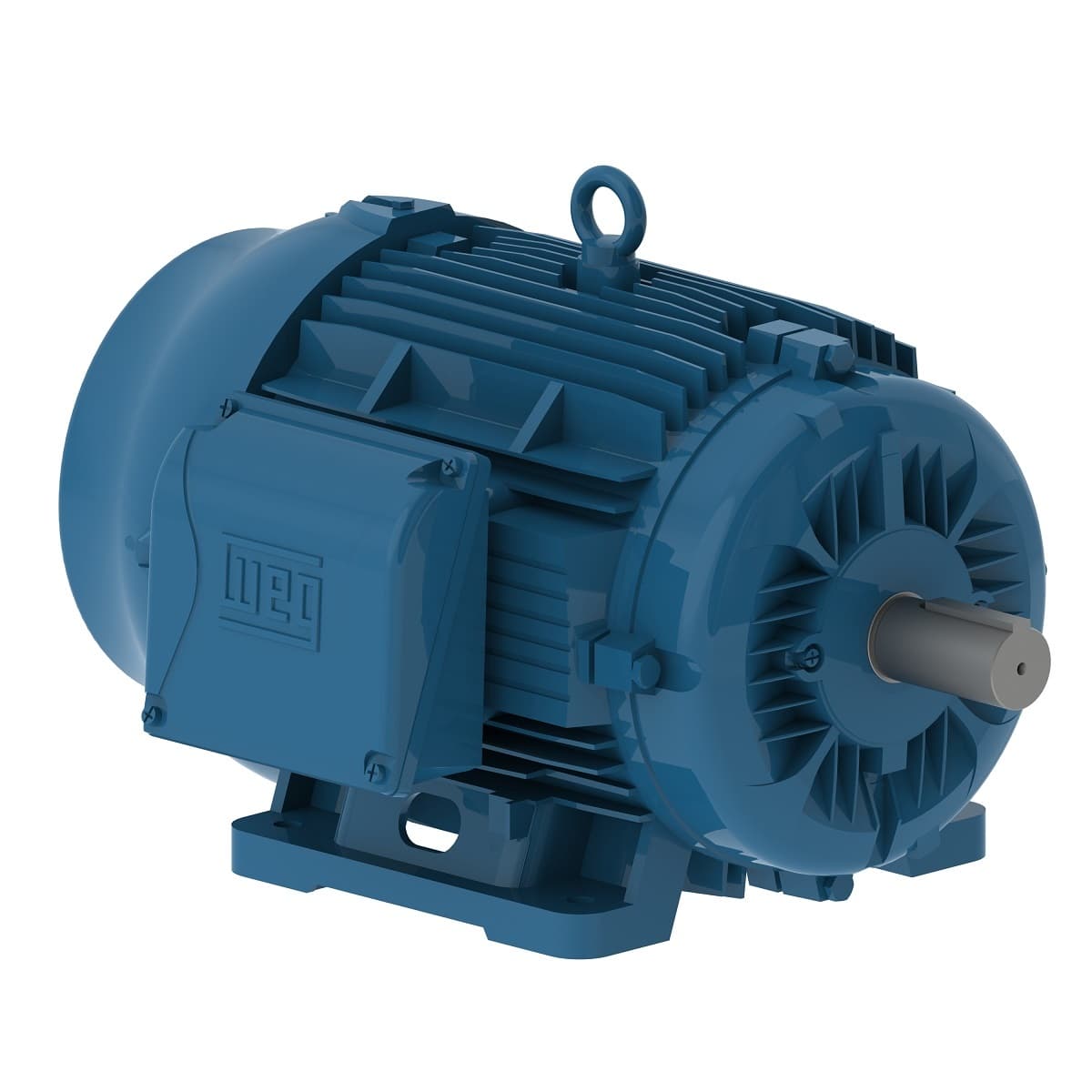

02012ET3H286T-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 575 V
- Output Rating 20 HP
- Rated Speed 1175 rpm
- Flange Type Without
- Flange Without
- Terminal box¹ Left position
- Output rating 20 HP
- Number of poles 6
- Approx. weight³ 437 lb
- Mounting F-1
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Temperature rise 80 K
- Insulation Class F
- Rated current 19.4 A
- Standard NEMA MG-1
- Voltage 575 V
- Synchronous speed 1200 rpm
- Rotation¹ Both (CW and CCW)
- Noise level² 59.0 dB(A)
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Service factor 1.25
- Locked rotor time 28s (cold) 16s (hot)
- Moment of inertia (J) 9.16 sq.ft.lb
- Design B
- Breakdown torque 260 %
- Locked rotor torque 229 %
- No load current 7.60 A
- Rated torque 89.4 ft.lb
- LRC 6.2x(Code G)
- Frequency 60 Hz
- Rated voltage 575 V
- Number of Poles 6
- L. R. Amperes 120 A
- Output 20 HP (15 kW)
- Slip 2.08 %
- Rated speed 1175 rpm
- Frame 284/6T
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
