02018OT3V256T-SG WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 200/400 V
- Output Rating 20 HP
- Rated Speed 1770 rpm
- Flange Type Without
- L. R. Amperes 362/181 A
- Terminal box¹ Left position
- Rated current 57.5/28.8 A
- Flange Without
- Output rating 20 HP
- Number of poles 4
- Voltage 200/400 V
- Approx. weight³ 214 lb
- Synchronous speed 1800 rpm
- Standard NEMA MG-1
- Duty Cycle Cont.(S1)
- Noise level² 64.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- Starting Method Direct On Line
- Temperature rise 80 K
- Insulation Class F
- Service factor 1.15
- Design B
- Breakdown torque 290 %
- Locked rotor torque 240 %
- No load current 26.3/13.1 A
- Locked rotor time 27s (cold) 15s (hot)
- Rated torque 59.3 ft.lb
- Moment of inertia (J) 2.23 sq.ft.lb
- Rated speed 1770 rpm
- Number of Poles 4
- LRC 6.3x(Code G)
- Frame 254/6T
- Rated voltage 200/400 V
- Frequency 60 Hz
- Output 20 HP (15 kW)
- Slip 1.67 %
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
02018OT3V256T-SG Related Documents
Manufacturer warranty
02018OT3V256T-SG WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

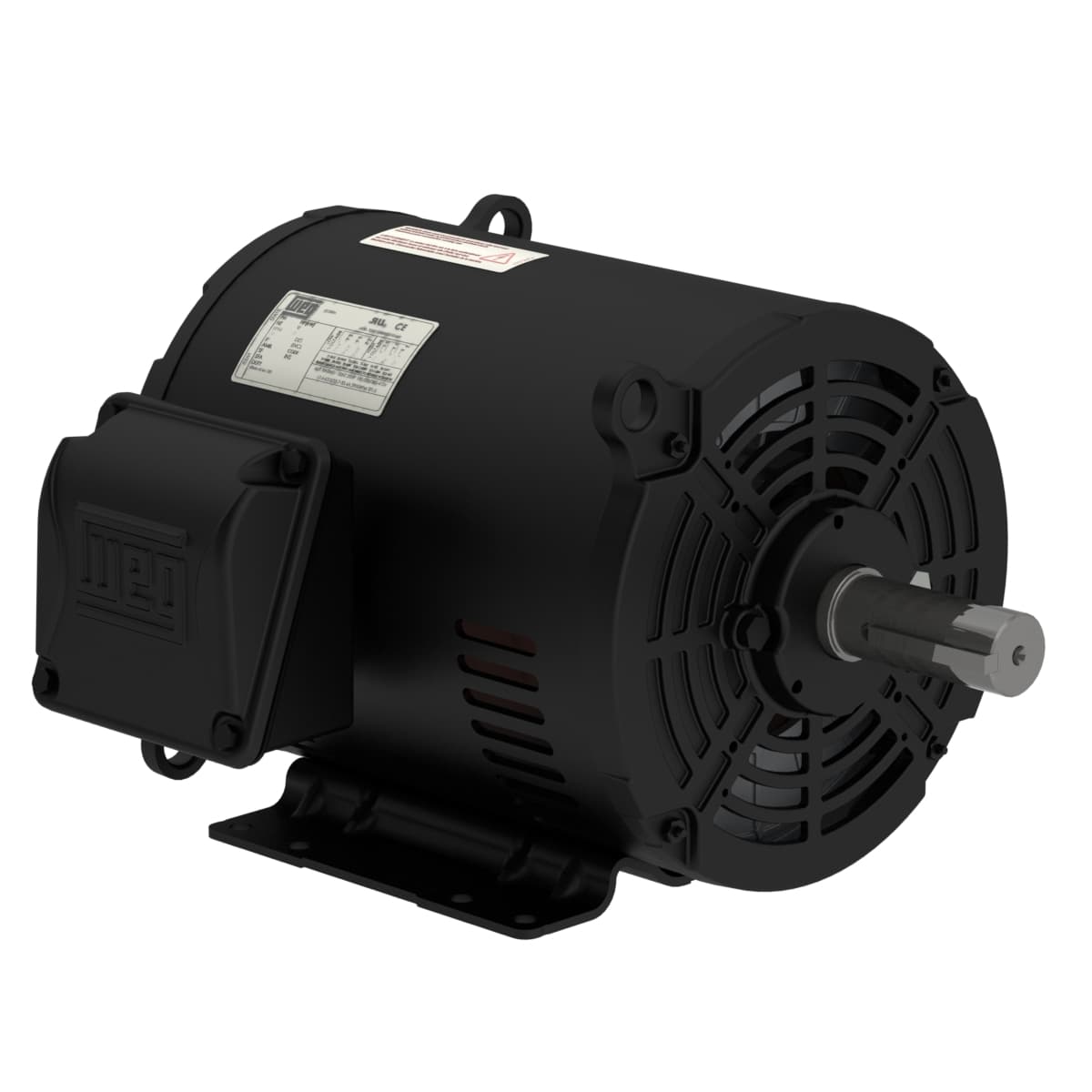

Rolled Steel NEMA Premium Efficiency 20 HP 4P 254/6T 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
