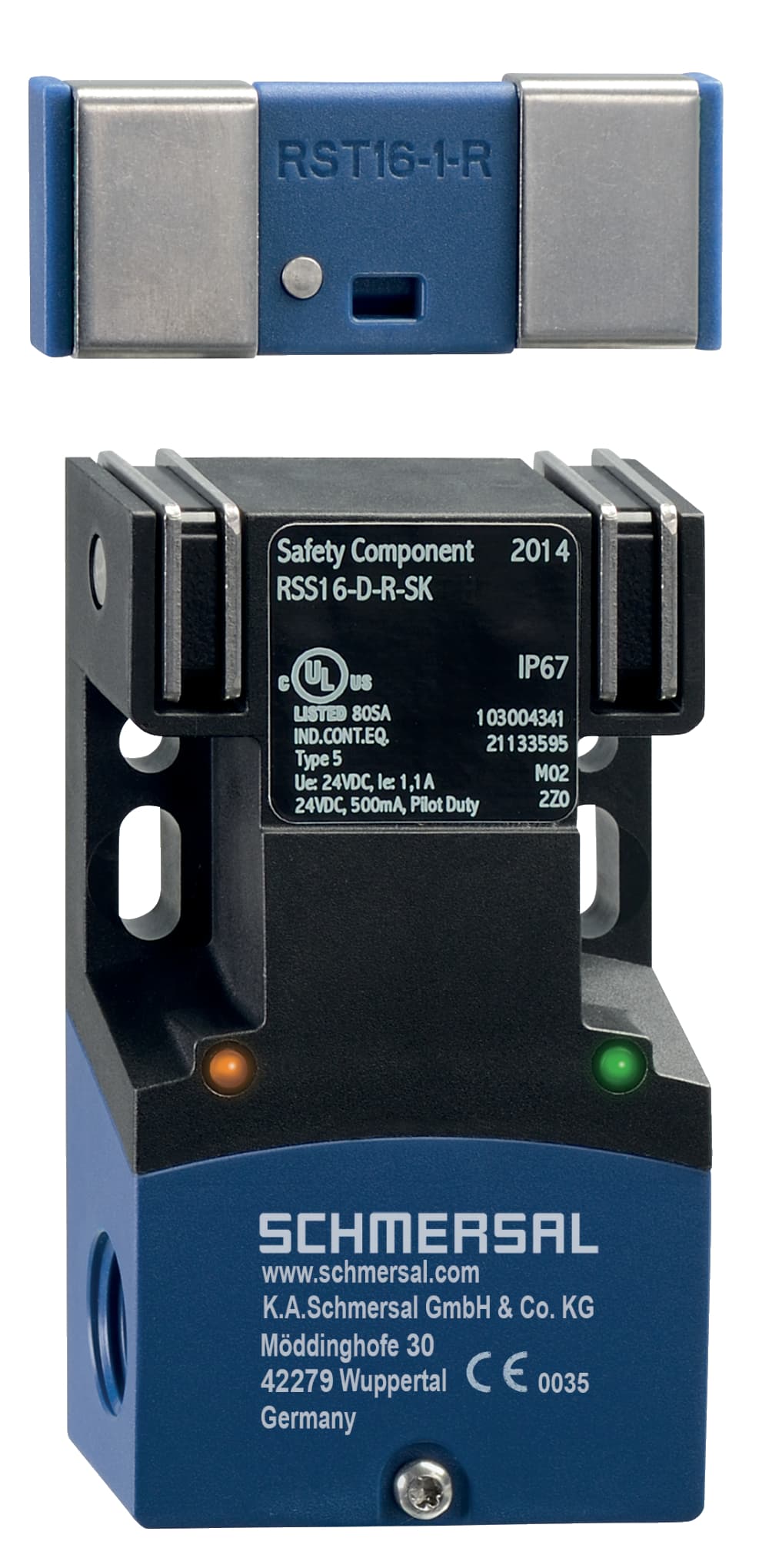

RSS16-D-R-CC Schmersal Safety Switches

Product Details

• EMC rating
  IEC 60947-3
• Interfering radiation
  IEC 61000-6-4
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Current, Utilisation category DC13
  0.05 A
• Current leakage Ir
  0.5 mA
• Output current, (fail-safe output), maximum
  1 A
• Voltage drop Ud, maximum
  2 V
• Voltage type
  DC (direct current)
• Rated impulse withstand voltage Uimp
  0.8 kV
• Overvoltage category
  III
• Protection rating
  0
• Storage and transport temperature, minimum
  -25 °C
• Ambient temperature, minimum
  -25 °C
• Ensured switch distance ON Sao
  5 mm
• Voltage, Utilisation category DC12
  24 VDC
• Versions
  p-type
• Rated operating current (safety outputs)
  1,000 mA
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Switching frequency, approx.
  1 Hz
Operating current
50 mA
Rated operating voltage, maximum
26.4 VDC
Rated operating voltage, minimum
20.4 VDC
Rated insulation voltage Ui
32 VDC
Degree of pollution to VDE 0100
3
No-load supply current I0
100 mA
Restistance to shock
30 g / 11 ms
Storage and transport temperature, maximum
+85 °C
Width of sensor
52 mm
Ambient temperature, maximum
+70 °C
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Height of sensor
30 mm
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Ensured switch distance OFF Sar
30 mm
Length of sensor
91 mm
Terminal Connector
Spring pulley connection
Switch distance
15 mm
Tightening torque of nuts, maximum
2 Nm
Repeat accuracy R R
0.5 mm
Mounting
2 x M5, Cylinder head screw
Hysteresis (Switch distance), maximum
2 mm
Number of LEDs
2
Number of fail-safe digital outputs
2
Actuating panels
front side, rear, from head
Safety functions
Yes
Number of semi-conductor outputs with signaling function
1
Integral System Diagnostics, status
Yes
Cascadable
Yes
Short-circuit recognition
Yes
Series-wiring
Yes
Short circuit detection
Yes
Reaction time, maximum
100 ms
Diagnostic output
Yes
Latching
Yes
Gross weight
208.7 g
Duration of risk, maximum
200 ms
Time to readiness, maximum
2,000 ms
Active principle
RFID
Housing construction form
Block
Sensor topology
Sensor for series wiring
Active area
lateral, front side, cover-side
Installation conditions (mechanical)
not flush
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Standards
IEC 60947-5-3
Coding level according to ISO 14119
Low
general information
Universal coding

Related documents RSS16-D-R-CC Specs
