PS116-Z11-LR200-K230 Schmersal Safety Switches
Part#:PS116-Z11-LR200-K230
Alt. Part#:103006571
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

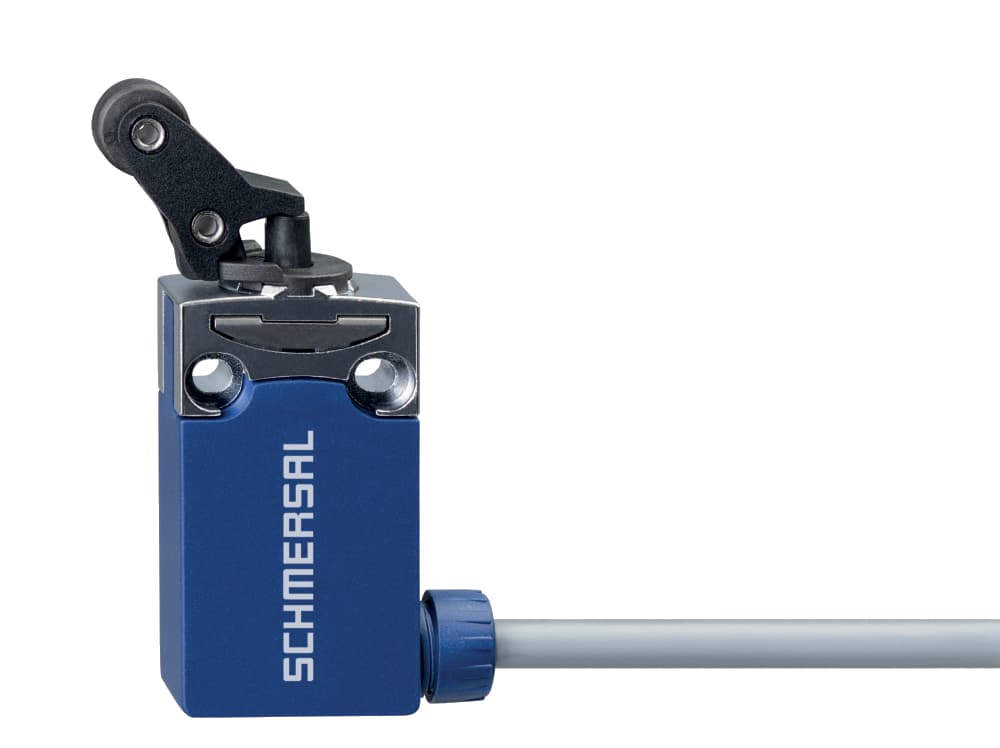

PS116-Z11-LR200-K230 Schmersal - Position switch; PS116; Pre-wired cable right, 2; Snap action 1 Normally open contact (NO) / 1 Opener (NC); Thermoplastic enclosure; Symmetric enclosure; Protection class IP66, IP67; Actuator heads can be repositioned by 8 x 45°
Product Details
- Switchover time, maximum 5.5 ms
- Switching element NO contact, NC contact
- Switching frequency 5,000 /h
- Bounce duration, maximum 3 ms
- Switching principle Snap switch element
- Thermal test current 5 A
- Utilisation category DC-13 1.5 A
- Rated impulse withstand voltage Uimp 4 kV
- Utilisation category AC-15 3 A
- Rated insulation voltage Ui 300 V
- Required rated short-circuit current to EN 60947-5-1 400 A
- Ambient temperature, maximum +80 °C
- Ambient temperature, minimum -30 °C
- Height of sensor 82 mm
- Length of sensor 16.6 mm
- Width of sensor 31 mm
- Degree of protection IP66, IP67
- Diameter of Castor 14 mm
- Cable type LiYY
- Length of cable 2 m
- Wire cross-section 0.5 mm2
- Actuating torque, minimum 0.2 Nm
- Positive break force, minimum 40 N
- Actuating speed, minimum 27 mm/min
- Terminal Connector Cable, 4-pole
- Actuating speed, maximum 1 m/s
- Positive break torque 0.6 Nm
- Actuating force, minimum 9.5 N
- Mechanical life, minimum 10,000,000 Operations
- Actuating element Angle roller lever K230
- Number of safety contacts 1
- Number of auxiliary contacts 1
- Gross weight 174.7 g
- Safety functions Yes
- Terminal (mechanical) right
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Housing construction form Norm construction design
- Standards IEC 60947-5-1
- Material of the contacts, electrical Silver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
