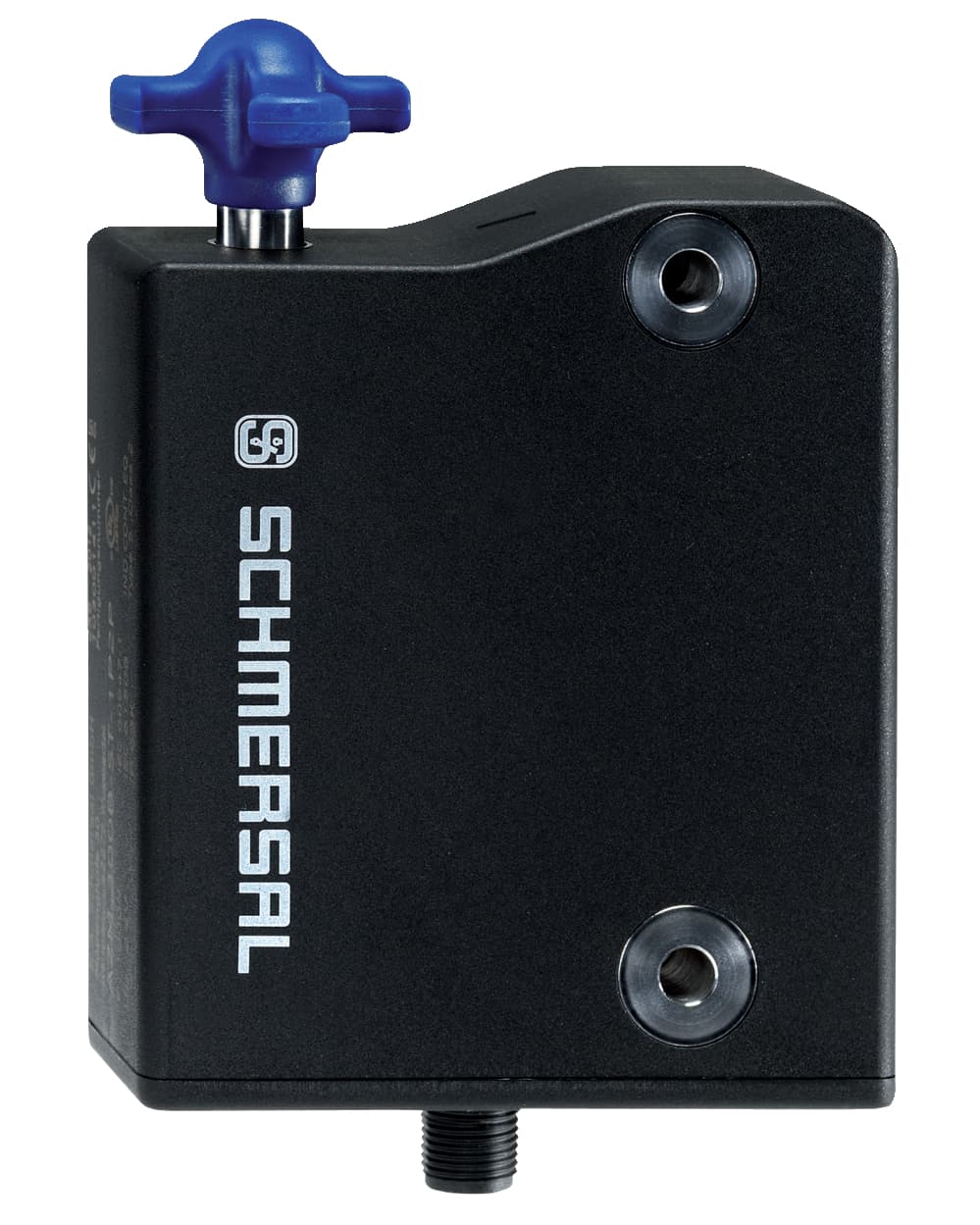

AZM300Z-ST-SD2P Schmersal Safety Switches

Product Details

• Wiring capacity
  50 nF
• Operation current
  150 mA
• Test pulse interval, typical
  1000 ms
• Voltage, Utilisation category DC13
  24 VDC
• Current leakage Ir
  0.5 mA
• Current, Utilisation category DC13
  0.05 A
• Current, Utilisation category DC12
  0.05 A
• Versions
  short-circuit proof, p-type
• Voltage drop Ud, maximum
  4 V
• Voltage, Utilisation category DC12
  24 VDC
• Classification ZVEI CB24I, Sink
  C1, C2
• Classification ZVEI CB24I, Source
  C2
• Test pulse interval, minimum
  100 ms
• Current consumption at 24V
  5 mA
• Test pulse duration, maximum
  0.5 ms
• Duty cycle solenoid
  100 %
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• External wiring and device fuse rating
  2 A gG
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• Required rated short-circuit current to EN 60947-5-1
  100 A
Current consumption with solenoid ON, average
200 mA
Switching frequency, maximum
0.5 Hz
No-load supply current I0
100 mA
Operating voltage, maximum
26.4 VDC
Notes (Power supply, general)
stabilised PELV power supply
Degree of pollution to IEC/EN 60664-1
3
Operating voltage, minimum
20.4 VDC
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+90 °C
Note (Relative humidity)
non-condensing, non-icing
Restistance to shock
30 g / 11 ms
Relative humidity, maximum
93 %
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Width of sensor
87.5 mm
Storage and transport temperature, minimum
-10 °C
Length of sensor
120 mm
Height of sensor
35 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Switch distance
2 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Ensured switch distance OFF Sar
20 mm
Ensured switch distance ON Sao
1 mm
Tightening torque of the fixing screws, minimum
6 Nm
Type of the fixing screws
2x M6
Tightening torque for the fixing screws, maximum
7 Nm
Latching force, adjustable, position 2
50 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Latching force, adjustable, position 1
25 N
Angular offset between interlocking device and actuator, maximum
2 °
Clamping force, maximum Fmax
1,500 N
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Number of fail-safe digital outputs
2
Mechanical life, minimum
1,000,000 Operations
Integral System Diagnostics, status
Yes
Safety functions
Yes
Series-wiring
Yes
Short-circuit recognition
Yes
Short circuit detection
Yes
Manual release
Yes
Guard locking monitored
Yes
Serial diagnostics
Yes
Latching
Yes
Power to unlock
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Duration of risk, maximum
200 ms
Coding level according to ISO 14119
Low
Time to readiness, maximum
5,000 ms
Frequency band RFID
125 kHz
Active principle
RFID
general information
Universal coding
Gross weight
550 g
Transmit power, maximum
-6 dB/m
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1

Related documents AZM300Z-ST-SD2P Specs
