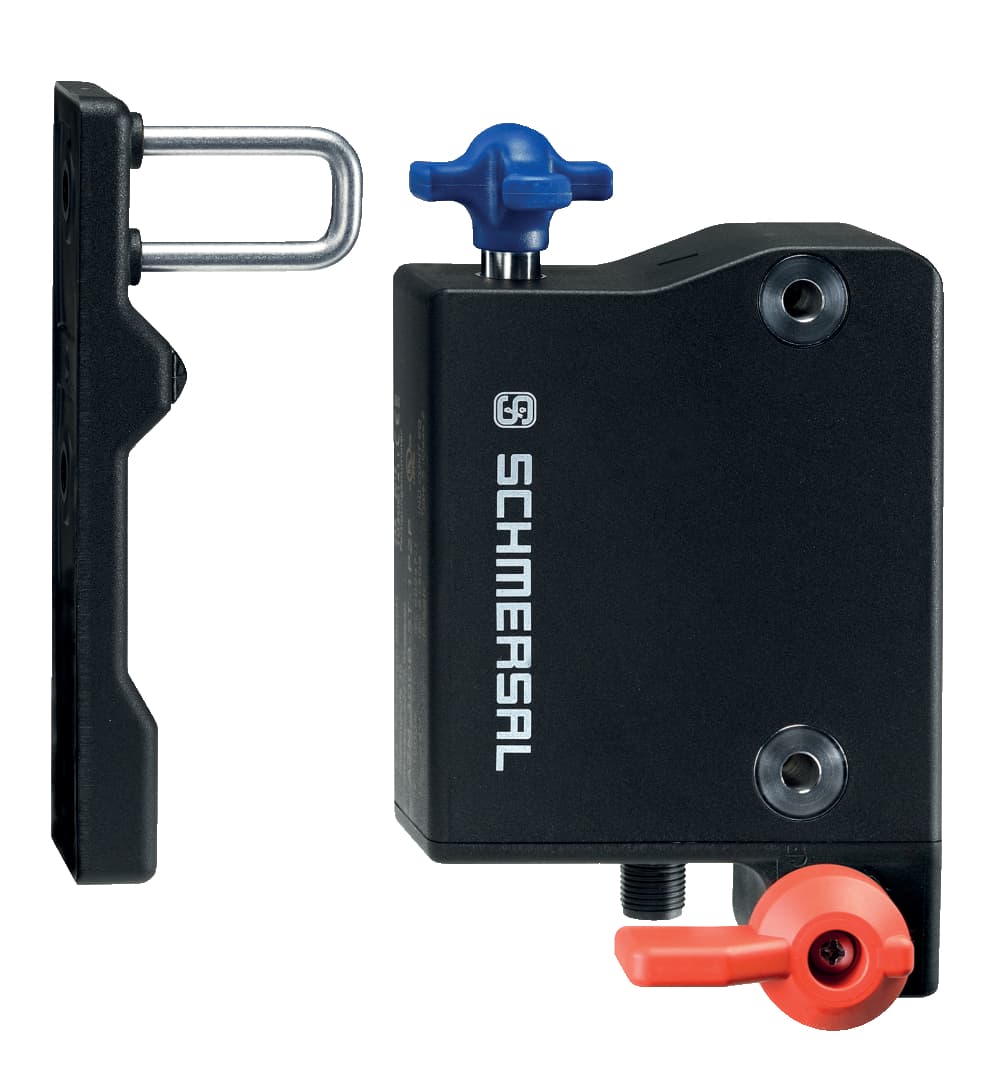

AZM300Z-ST-1P2P-T Schmersal Safety Switches

Product Details

• Operating voltage, maximum
  26.4 VDC
• Relative humidity, maximum
  93 %
• Height of sensor
  55 mm
• Ensured switch distance OFF Sar
  20 mm
• Mechanical life, minimum
  1,000,000 Operations
• Series-wiring
  Yes
• general information
  Universal coding
• Current, Utilisation category DC12
  0.05 A
• Current, Utilisation category DC13
  0.05 A
• Test pulse interval, typical
  1000 ms
• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category DC12
  24 VDC
• Current leakage Ir
  0.5 mA
• Voltage drop Ud, maximum
  4 V
• Versions
  short-circuit proof, p-type
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Test pulse interval, minimum
  100 ms
• Switching frequency, maximum
  0.5 Hz
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
Duty cycle solenoid
100 %
Current consumption at 24V
5 mA
Test pulse duration, maximum
0.5 ms
External wiring and device fuse rating
2 A gG
Required rated short-circuit current to EN 60947-5-1
100 A
Current consumption with solenoid ON, peak
350 mA / 200 ms
Current consumption with solenoid ON, average
200 mA
No-load supply current I0
100 mA
Operating voltage, minimum
20.4 VDC
Notes (Power supply, general)
stabilised PELV power supply
Degree of pollution to IEC/EN 60664-1
3
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Protection rating
III
Note (Relative humidity)
non-condensing, non-icing
Restistance to shock
30 g / 11 ms
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Width of sensor
87.5 mm
Length of sensor
146 mm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Tightening torque for the fixing screws, maximum
7 Nm
Terminal Connector
Connector M12, 8-pole, A-coded
Switch distance
2 mm
Ensured switch distance ON Sao
1 mm
Type of the fixing screws
2x M6
Tightening torque of the fixing screws, minimum
6 Nm
Latching force, adjustable, position 2
50 N
Angular offset between interlocking device and actuator, maximum
2 °
Latching force, adjustable, position 1
25 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Clamping force, maximum Fmax
1,500 N
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Number of fail-safe digital outputs
2
Integral System Diagnostics, status
Yes
Safety functions
Yes
Guard locking monitored
Yes
Latching
Yes
Power to unlock
Yes
Short-circuit recognition
Yes
Emergency exit
Yes
Short circuit detection
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Duration of risk, maximum
200 ms
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Active principle
RFID
Frequency band RFID
125 kHz
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Coding level according to ISO 14119
Low
Transmit power, maximum
-6 dB/m
Time to readiness, maximum
5,000 ms
Gross weight
610 g
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
