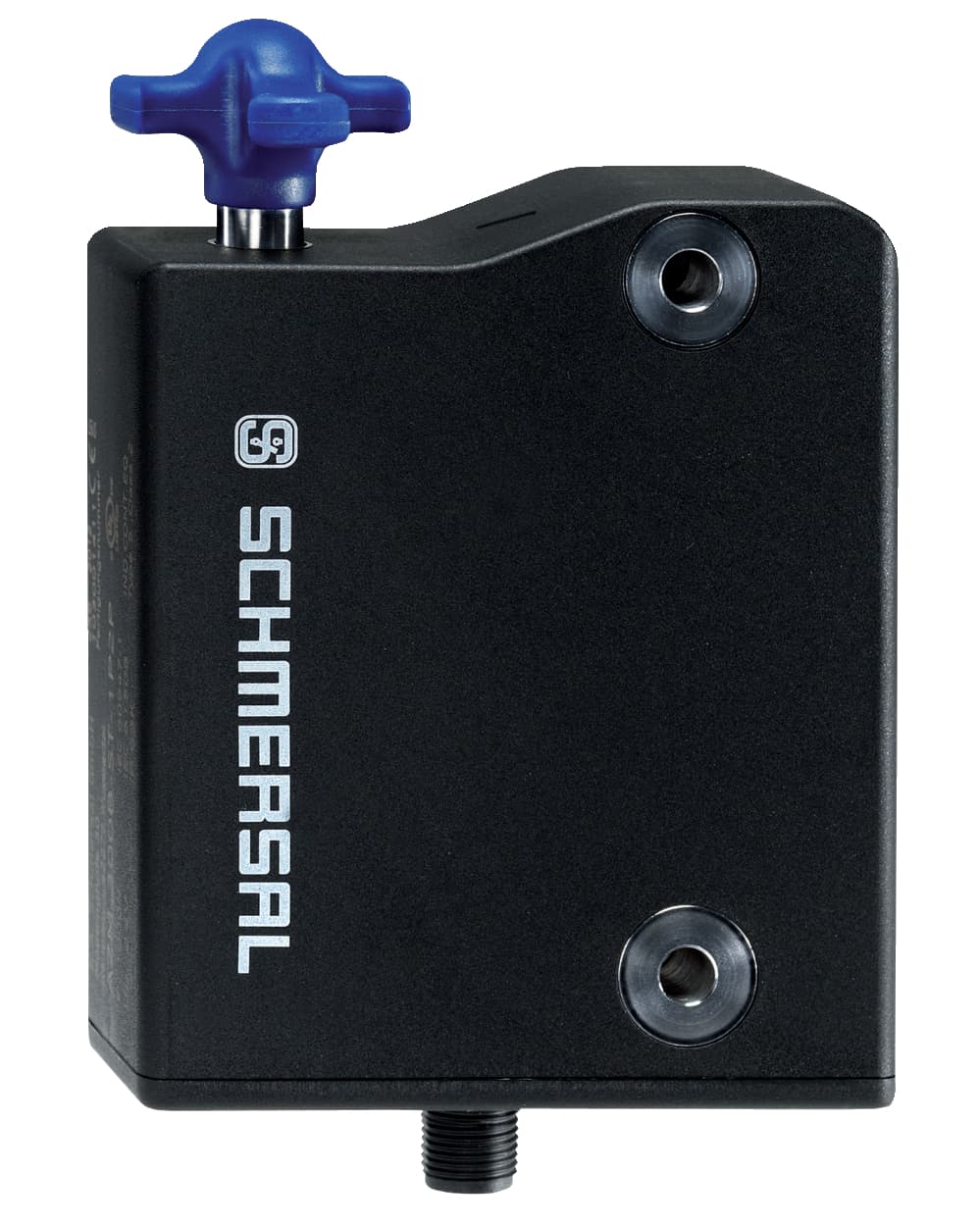

AZM300Z-I2-ST-1P2P Schmersal Safety Switches

Product Details

• Test pulse interval, typical
  1000 ms
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category DC12
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Current leakage Ir
  0.5 mA
• Versions
  short-circuit proof, p-type
• Voltage drop Ud, maximum
  4 V
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Test pulse duration, maximum
  0.5 ms
• Test pulse interval, minimum
  100 ms
• Duty cycle solenoid
  100 %
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Current consumption at 24V
  5 mA
• Switching frequency, maximum
  0.5 Hz
• External wiring and device fuse rating
  2 A gG
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• Current consumption with solenoid ON, average
  200 mA
No-load supply current I0
100 mA
Degree of pollution to IEC/EN 60664-1
3
Notes (Power supply, general)
stabilised PELV power supply
Operating voltage, maximum
26.4 VDC
Operating voltage, minimum
20.4 VDC
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Protection rating
III
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, maximum
93 %
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Height of sensor
35 mm
Width of sensor
87.5 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Length of sensor
120 mm
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Ensured switch distance OFF Sar
20 mm
Ensured switch distance ON Sao
1 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Switch distance
2 mm
Tightening torque for the fixing screws, maximum
7 Nm
Tightening torque of the fixing screws, minimum
6 Nm
Type of the fixing screws
2x M6
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Latching force, adjustable, position 2
50 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Latching force, adjustable, position 1
25 N
Clamping force, maximum Fmax
1,500 N
Angular offset between interlocking device and actuator, maximum
2 °
Mechanical life, minimum
1,000,000 Operations
Time to readiness, maximum
5,000 ms
Frequency band RFID
125 kHz
Number of fail-safe digital outputs
2
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Active principle
RFID
general information
Individual coding, multiple teaching
Integral System Diagnostics, status
Yes
Safety functions
Yes
Transmit power, maximum
-6 dB/m
Gross weight
550 g
Short-circuit recognition
Yes
Series-wiring
Yes
Short circuit detection
Yes
Manual release
Yes
Latching
Yes
Coding level according to ISO 14119
High
Power to unlock
Yes
Guard locking monitored
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Duration of risk, maximum
200 ms
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1

Related documents AZM300Z-I2-ST-1P2P Specs
