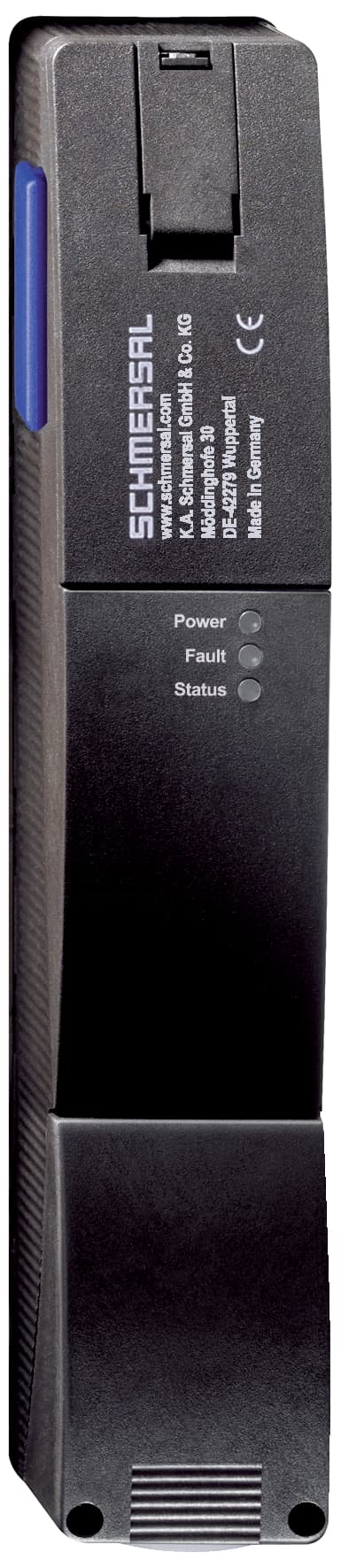

AZM201Z-I2-SK-T-1P2PW-A Schmersal Safety Switches

Product Details

• Classification ZVEI CB24I, Sink
  C1, C2
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Current leakage Ir
  0.5 mA
• Rated operating current (safety outputs)
  250 mA
• Voltage drop Ud, maximum
  4 V
• Classification ZVEI CB24I, Source
  C2
• Switching thresholds
  -3 V … 5 V (Low), 15 V … 30 V (High)
• Current consumption with solenoid ON, average
  200 mA
• Switching frequency, approx.
  1 Hz
• Operating voltage, minimum
  20.4 VDC
• Operating current
  50 mA
• Current consumption with solenoid ON, peak
  700 mA / 100 ms
• Operating voltage, maximum
  26.4 VDC
• No-load supply current I0
  50 mA
• Overvoltage category
  III
• Rated impulse withstand voltage Uimp
  0.8 kV
• Degree of pollution to VDE 0100
  3
• Note (Relative humidity)
  non-condensing
• Rated insulation voltage Ui
  32 VDC
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Protection rating
III
Restistance to shock
30 g / 11 ms
Relative humidity, maximum
95 %
Storage and transport temperature, maximum
+85 °C
Relative humidity, minimum
30 %
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Height of sensor
220 mm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Width of sensor
40 mm
Length of sensor
50 mm
Wire cross-section, minimum
23 AWG
Cable section, maximum
1.5 mm²
Wire cross-section, maximum
15 AWG
Actuating speed, maximum
0.2 m/s
Clamping force in accordance with ISO14119 Fzh
2,000 N
Latching force
30 N
Mechanical life, minimum
1,000,000 Operations
Terminal Connector
Screw connection
Clamping force, maximum Fmax
2,600 N
Cable section, minimum
0.25 mm²
Number of safety contacts
2
Power to lock
Yes
Integral System Diagnostics, status
Yes
Short-circuit recognition
Yes
Safety functions
Yes
Guard locking monitored
Yes
Manual release
Yes
Series-wiring
Yes
Short circuit detection
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
0.5 ms
Active principle
RFID
Duration of risk, maximum
200 ms
Gross weight
586 g
Coding level according to ISO 14119
High
Enclosure material
Glass-fibre, reinforced thermoplastic
Time to readiness, maximum
4,000 ms
general information
Individual coding, multiple teaching
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508

Related documents AZM201Z-I2-SK-T-1P2PW-A Specs
