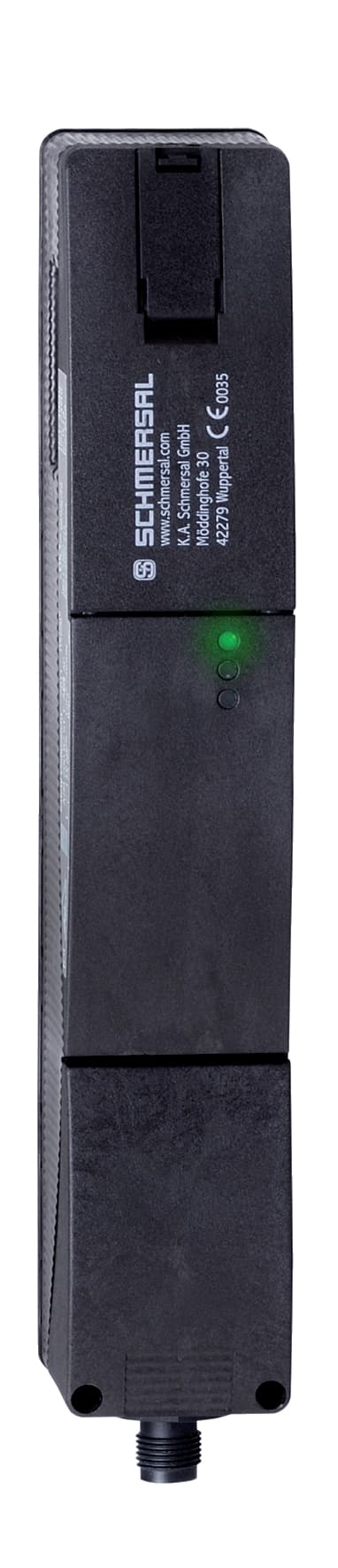

AZM201B-I2-ST-T-AS-A-P Schmersal Safety Switches

Product Details

• Operating current
  500 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Input module address
  0
• Note (AS-i Parameter bits)
  FID: periphery error
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 3
  No Function
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i, ID-Code2
  0xE
• AS-i, ID-Code1
  0xF
• AS-i, ID-Code
  0xB
• AS-i Profile
  S-7.B.F.E
• AS-i Version
  V 3.0
AS-i, IO-Code
0x7
AS-i Specification
Safety-Slave
AS-i Current consumption, maximum
100 mA
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Operating voltage, minimum
26.5 VDC
Switching frequency, maximum
1 Hz
Degree of pollution to IEC/EN 60664-1
3
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Protection rating
III
Rated impulse withstand voltage Uimp
0.8 kV
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, minimum
10 %
Relative humidity, maximum
95 %
Storage and transport temperature, maximum
+85 °C
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Height of sensor
220 mm
Storage and transport temperature, minimum
-25 °C
Length of sensor
50 mm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Actuating speed, maximum
0.2 m/s
Width of sensor
40 mm
Latching force
30 N
Tightening torque for the fixing screws, maximum
8 Nm
Clamping force in accordance with ISO14119 Fzh
2,000 N
Clamping force, maximum Fmax
2,600 N
Number of actuating directions
2
Mechanical life, minimum
1,000,000 Operations
Actuator monitored
Yes
Safety functions
Yes
Duration of risk, maximum
200 ms
Power to lock
Yes
Latching
Yes
Integral System Diagnostics, status
Yes
Manual release
Yes
Time to readiness, maximum
4,000 ms
Active principle
RFID
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Gross weight
538.5 g
general information
Individual coding, multiple teaching
Coding level according to ISO 14119
High
Reaction time, maximum
100 ms
Enclosure material
Glass-fibre, reinforced thermoplastic

Related documents AZM201B-I2-ST-T-AS-A-P Specs
