SCE-SPMP05 Saginaw Control Enclosure Accessories

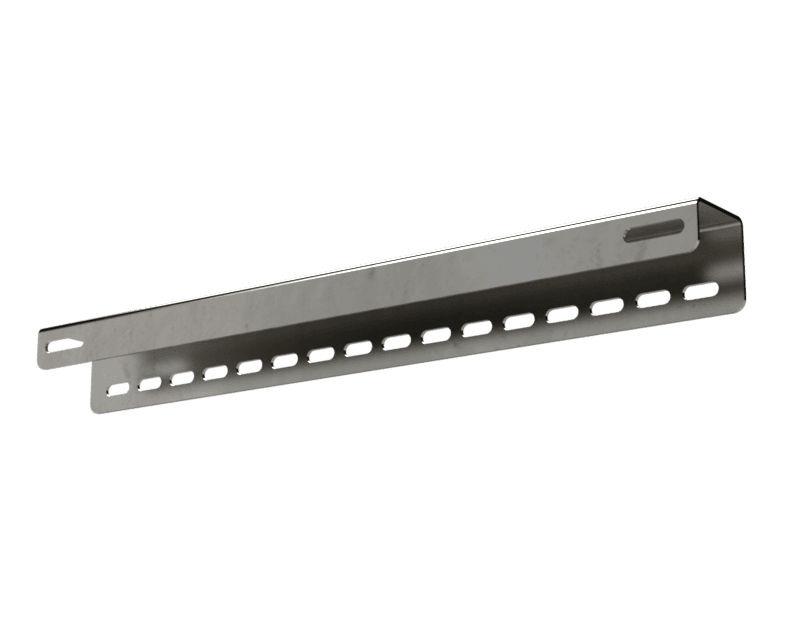

Saginaw Control SCE-SPMP05 Strap, IMS Subpanel Mtg. (Galvanneal), Height:1.75", Width:17.50", Depth:1.84", Powder coated white
Saginaw Control

Part#:SCE-SPMP05

Manufacturer:Saginaw Control

Product Lifecycle:Active

Get a quick Quote!

Strap, IMS Subpanel Mtg. (Galvanneal), Height:1.75", Width:17.50", Depth:1.84", Powder coated white

About the manufacturer: Saginaw Control is one of the manufacturers that offers Enclosure Accessories that you can order at Advantage Electric Supply site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-SPMP05 Saginaw Control price in the box on the right side or send a quick quote.

Product Details

  • Industry Standards
    NEMA Not Applicable; UL Not Applicable; CSA N/A
  • Depth
    1.84"
  • Width
    17.50"
  • Finish
    Powder coated white
  • Height
    1.75"

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SCE-SPMP05 Specs

SCE-SPMP05 Saginaw - CAD files-1630957680339.zip
