95551203 SAB Tray Cables

Name: 95551203
Brand: SAB

Part#:95551203

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

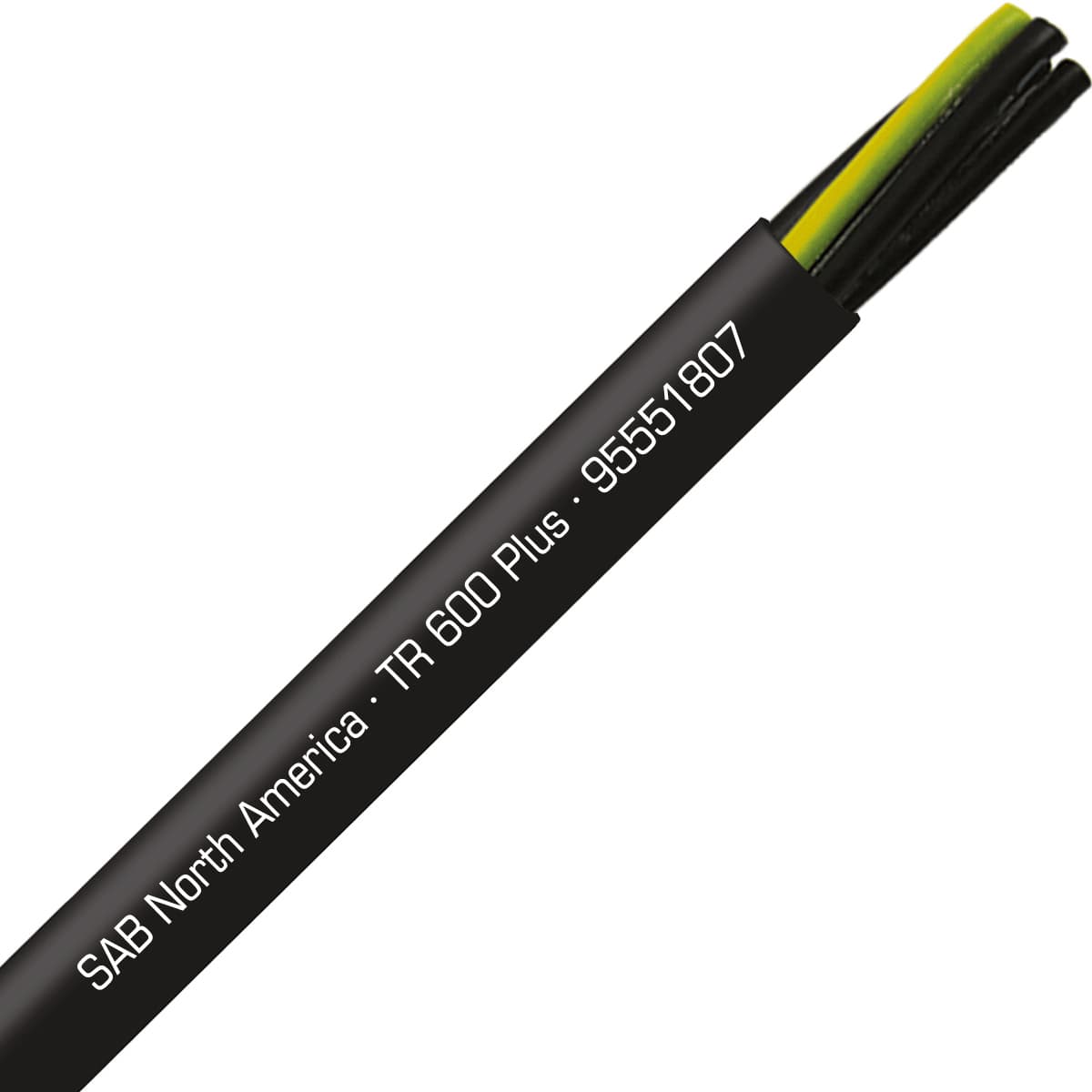

TR 600 Plus - 12 AWG/3c, UV and oil resistant flexible exposed run tray cable with reduced O.D., UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 95551203 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
53.07 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
YES
Halogen Free
NO
Submersible
NO
Direct Burial
YES
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
12 AWG
Number of conductors
3
Cable configuration
12 AWG/3c
Stranding type
bare copper strands, class 5
Insulation type
PVC/Nylon
Shielded
No
Voltage
600
Approvals
UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS
RoHS
YES
Temperature range
-25°C to +105°C

Outside diameter (OD)

0.386 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

95551203 Description

SAB 95551203 Tray Cable is part of TR 600 Plus product family, and is designed for Control, Power applications. This cable is 12 AWG with 3 conductors, and 12 AWG/3c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class 5 stranding. It has 0.386 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -25°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.
