95551007 SAB Tray Cables

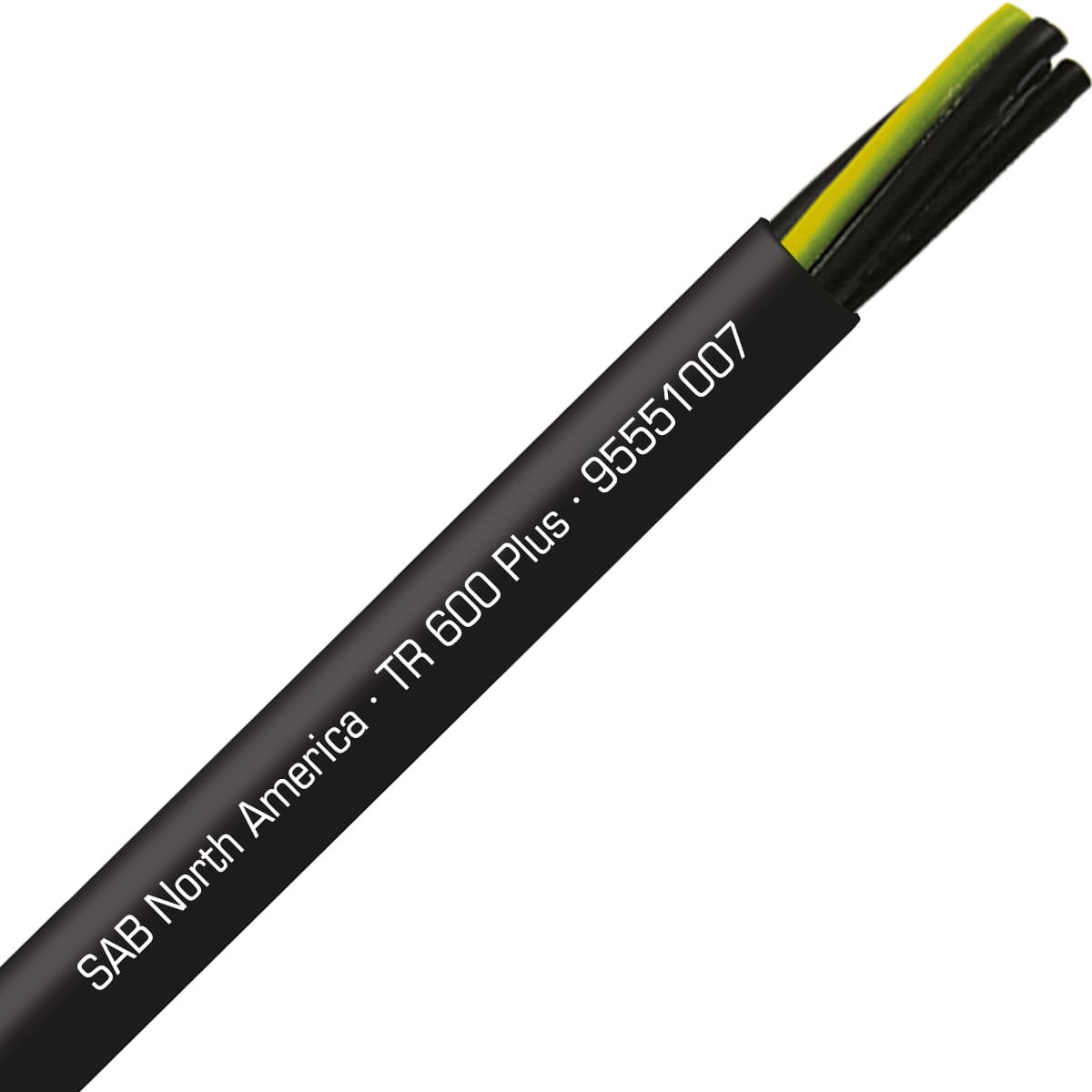

SAB 95551007 TR 600 Plus - 10 AWG/7c, UV and oil resistant flexible exposed run tray cable with reduced O.D., UL, CSA, CE, RoHS
SAB

Part#:95551007

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

TR 600 Plus - 10 AWG/7c, UV and oil resistant flexible exposed run tray cable with reduced O.D., UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 95551007 SAB price in the box on the right side or send a quick quote.

Product Details

  • Gauge
    10 AWG
  • Halogen Free
    NO
  • Chemical Resistant
    NO
  • Movement Type
    Stationary/Flexible
  • Outside diameter (OD)
    0.685 in
  • Weight
    169.64 g
  • Shielded
    No
  • Temperature range
    -25°C to +105°C
  • Submersible
    NO
  • Cable configuration
    10 AWG/7c
  • Approvals
    UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS
  • UOM
    ft
  • UV Resistant
    YES
  • Direct Burial
    YES
  • Number of conductors
    7
  • Color
    Black
  • Insulation type
    PVC/Nylon
  • RoHS
    YES
  • UL Certification
    YES
  • CSA Certification
    YES
  • Oil Resistant
    Yes
  • CE Certification
    YES
  • Application
    Control, Power
  • Voltage
    600
  • Stranding type
    bare copper strands, class 5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

95551007 Description

SAB 95551007 Tray Cable is part of TR 600 Plus product family, and is designed for Control, Power applications. This cable is 10 AWG with 7 conductors, and 10 AWG/7c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class 5 stranding. It has 0.685 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -25°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 95551007 Specs

95551007 TR_600_Plus.pdf
