63451834 SAB Halogen Free Cables
Part#:63451834
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

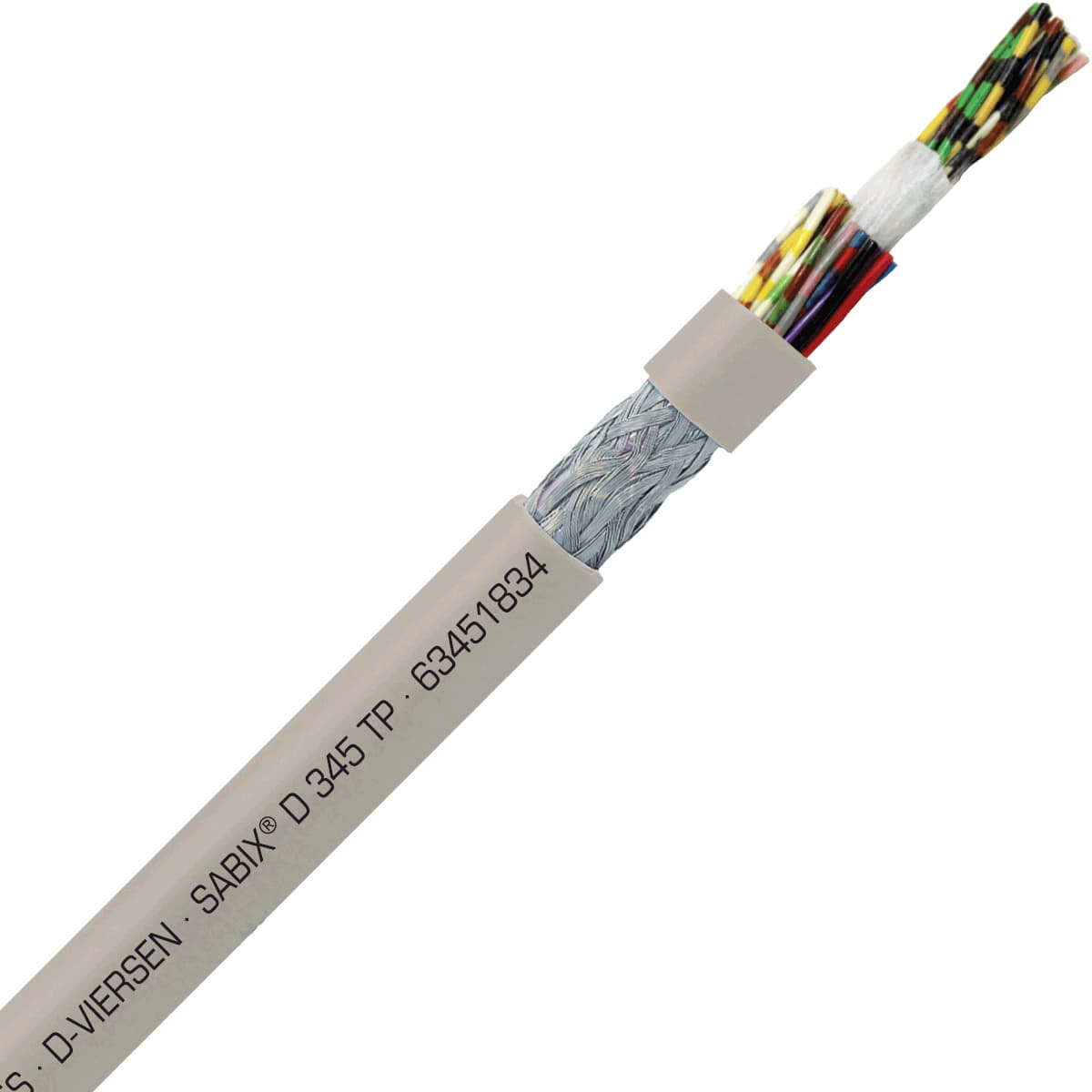

SABIX D 345 FRNC TP - 22 AWG/18pr, halogen-free flame retardant paired data cable, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Halogen Free Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 63451834 SAB price in the box on the right side or send a quick quote.
Product Details
- Gauge 22 AWG
- Insulation type SABIX
- RoHS YES
- UOM ft
- CE Certification YES
- Application Data
- Stranding type bare copper, fine strands
- Voltage 500
- Oil Resistant No
- Direct Burial NO
- Number of conductors 36
- Color Grayish Tan
- CSA Certification NO
- Chemical Resistant NO
- Outside diameter (OD) 0.602 in
- UL Certification NO
- UV Resistant NO
- Submersible NO
- Pair count 18
- Shielded Yes
- Halogen Free YES
- Movement Type Stationary/Flexible
- Cable configuration 22 AWG (≈ 7/30)/18pr
- Approvals CE, EAC, RoHS
- Temperature range -40°C to +85°C
- Weight 96.61 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
63451834 Description
SAB 63451834 Halogen Free Cable is part of SABIX® D 345 FRNC TP product family, and is designed for Data applications. This cable is 22 AWG with 36 conductors, and shielded 22 AWG (≈ 7/30)/18pr cable configuration. Featuring Grayish Tan color jacket, SABIX insulation, and bare copper, fine strands stranding. It has 0.602361 in OD, constructed to support Stationary/Flexible movement type, and rated for 500 volts. This Data cable can operate in -40°C to +85°C temperature range, it is Halogen free, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Data applications.
Related documents 63451834 Specs
