PXU11D30 Red Lion Industrial Automation Components

PXU11D30 on Advantage Electric Supply
Red Lion

Part#:PXU11D30

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

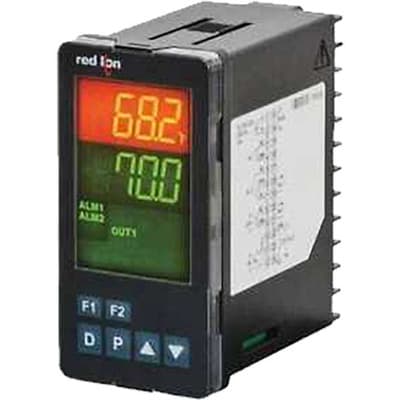

Red Lion PXU11D30 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design with relay control output and a secondary relay control output, housed in a 1/8 DIN vertical format measuring 49.5mm wide by 96.5mm high. The display consists of 12mm orange/green digits, enhancing visibility. This model is part of the PXU PID controllers series and requires a supply voltage (AC) of 100-240Vac, accommodating a wide range of input voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. It offers a degree of protection rated at IP65 NEMA 4X, ensuring durability in various environments. The PXU11D30 has a frequency of 10Hz for analog input sampling and utilizes the RS-485 communication protocol for connectivity. It is equipped with two digital outputs (one rated at 250Vac 3A and another for secondary control), and two analog inputs supporting multiple signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a sample period of 100ms and accuracy of 0.1 to 1°. Additionally, it features a remote setpoint input, heater current monitoring for protection, and a digital input for user input.

Product Details

  • Primary brand
    Red Lion
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy) 1 x analog input (0-5Vdc / 1-5Vdc / 0-10Vdc / 0-20mA / 4-20mA) (Remote setpoint input)
  • Order code / Manufacturer SKU
    PXU11D30
  • Communication protocol
    RS-485
  • Protection functions
    Heater current monitoring
  • Sub-range name
    PXU PID controllers series
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Network frequency
    50/60 Hz
  • Main function
    Temperature controller (Digital)
  • Functions
    Digital temperature / process PID controller
  • Ambient air temperature for operation
    0...+50 °C
  • Digital outputs
    1 x digital output (contact type 250Vac 3A) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Product series / family name
    Process controllers
  • Design
    rly. control output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Digital inputs
    1 x digital input (user input)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Frequency
    10Hz analog input sampling rate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
