PXU11C30 Red Lion Industrial Automation Components

PXU11C30 on Advantage Electric Supply
Red Lion

Part#:PXU11C30

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

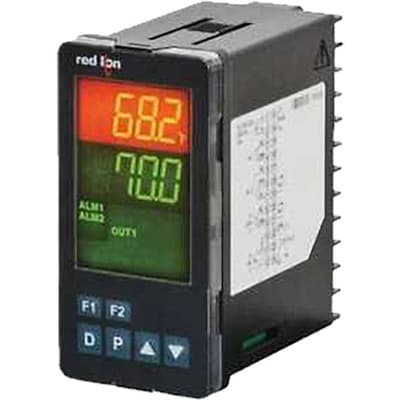

Red Lion PXU11C30 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design that includes 1 user input, RS-485 analog retransmission output, relay control output, and a secondary relay control output, all within a 1/8 DIN vertical configuration measuring 48x96mm with 12mm orange/green digits. The supply voltage (AC) requirement is versatile, accommodating 100-240Vac across various standard voltages. As part of the PXU PID controllers series, it has dimensions of W49.5mm x H96.5mm (1.89" x 3.77") and offers a degree of protection rated at IP65 NEMA 4X. The frequency for analog input sampling is 10Hz, utilizing an RS-485 communication protocol. It includes 1 x digital output (contact type 250Vac 3A), 1 x digital output (contact type) for secondary control, and 1 x analog input supporting a wide range of signals including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouple types, and RTD with a 100ms sample period and 0.1 to 1° accuracy. The PXU11C30 also features heater current monitoring for protection, 1 x digital input for user input, and 1 x analog output for retransmission.

Product Details

  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Functions
    Digital temperature / process PID controller
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Sub-range name
    PXU PID controllers series
  • Digital inputs
    1 x digital input (user input)
  • Ambient air temperature for operation
    0...+50 °C
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Product series / family name
    Process controllers
  • Design
    1 user input RS-485 analog retransm. output rly. control output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Communication protocol
    RS-485
  • Protection functions
    Heater current monitoring
  • Frequency
    10Hz analog input sampling rate
  • Digital outputs
    1 x digital output (contact type 250Vac 3A) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Analog outputs
    1 x analog output (retransmission)
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Network frequency
    50/60 Hz
  • Order code / Manufacturer SKU
    PXU11C30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU11C30 Related Documents

Red Lion - PXU - Manual.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Data Sheet.pdf
