TRS5-6/10R Mersen Fuses
Part#:TRS5-6/10R
Manufacturer:Mersen
Category:Fuses
Alt. Part#:782001748746
Product Lifecycle:Active
Get a quick Quote!

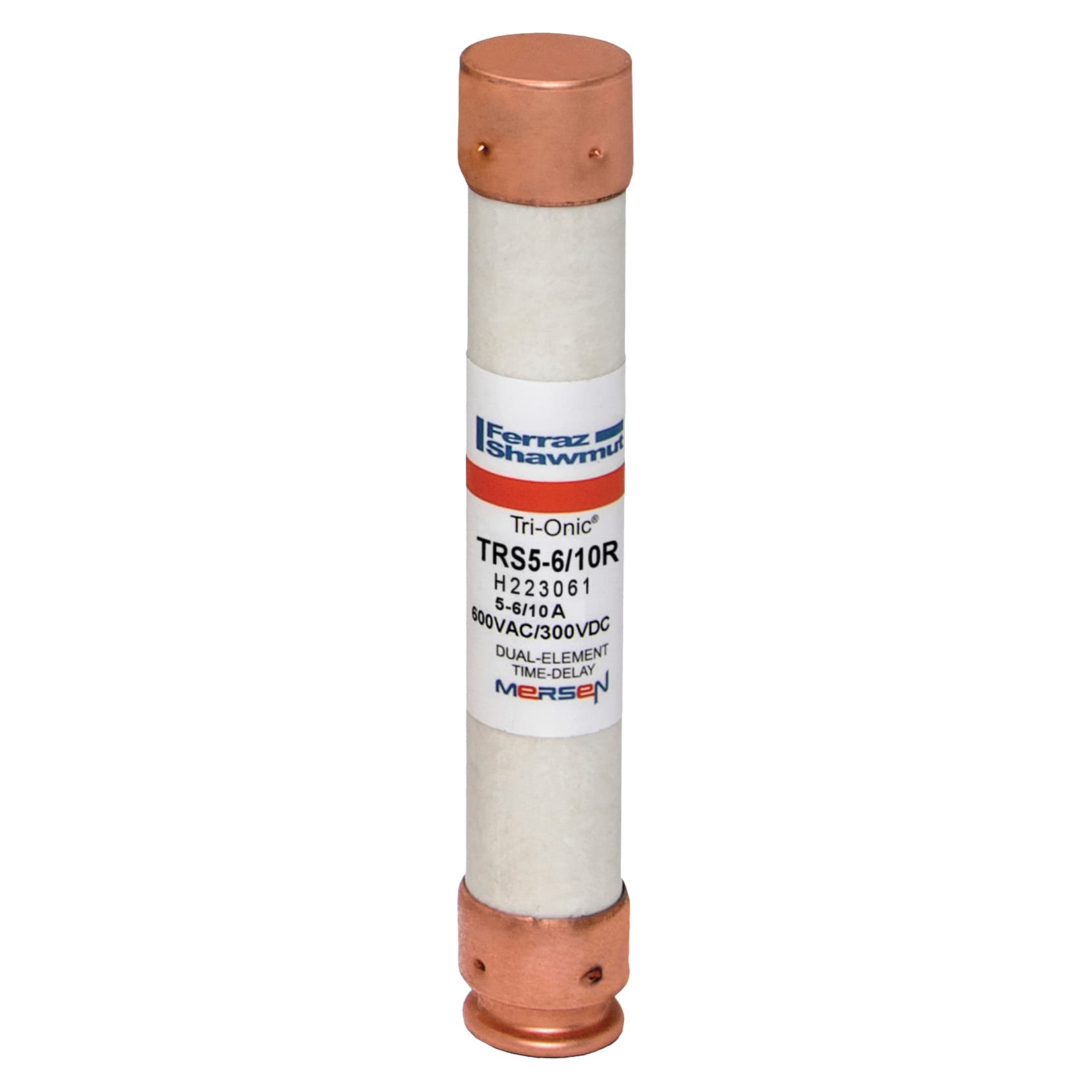

TRS5-6/10R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 5.6A Ferrule Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TRS5-6/10R Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 5.6 A
- Terminal Type Ferrule
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 62.1295 g
- Voltage 600 VAC / 600 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- Shipping Weight: 0.10 lbs.
- Shipping Length: 5.00 In.
- Shipping Height: 1.00 In.
- Shipping Width: 1.00 In.
- UPC: 78200174874
- Sell Pack Height 1.75 in
- Sell Pack Width 4.12 in
- Sell Pack Length 5.12 in
- Sell Pack Quantity 10 Each
- Body/Insulating Material PolyTube
- Connection/Terminal Type Ferrule
- Sell Pack Weight 2.1 lb
- Product Diameter 0.81 in
- Product Weight 0.2 lb
- Product Length 5 in
- Connection/Terminal Material Copper
- Mounting Clip
- Fuse Class Class RK5
- Frequency 50/60 Hz
- Rated voltage AC UL 600 V
- Ampere Rating 5.6 A
- AC Max I.R./Breaking Capacity: I1 200 kA
- Speed/Characteristic Time Delay
- Rated voltage DC UL 600 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TRS5-6/10R Description
TRS5-6/10R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 5.6A Ferrule Tri-Onic®
