TRS350RID Mersen Fuses

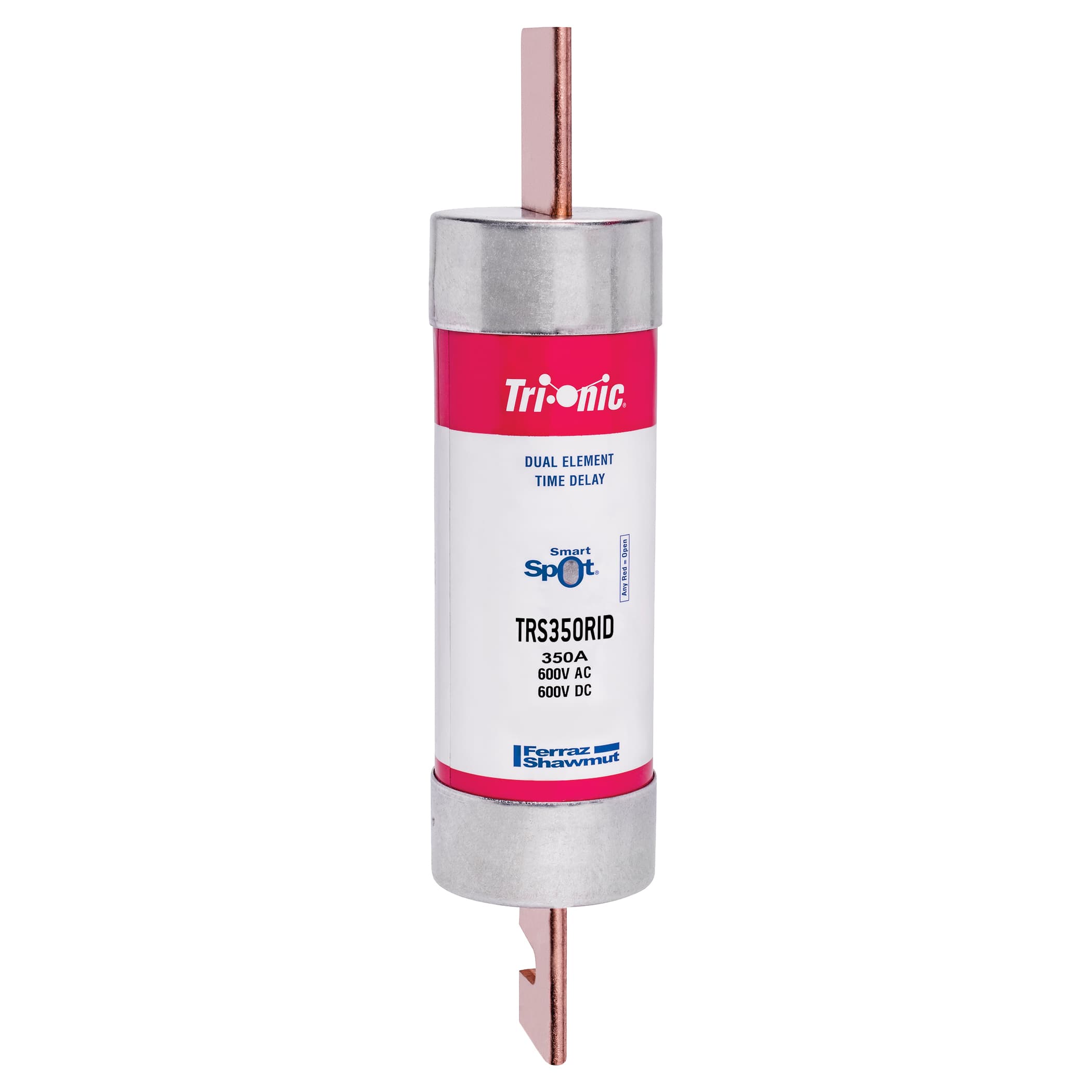

Mersen TRS350RID TRS350RID Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 350A Blade SmartSpot® Tri-Onic®
Mersen

Part#:TRS350RID

Manufacturer:Mersen

Alt. Part#:782001415266

Product Lifecycle:Active

Get a quick Quote!

TRS350RID Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 350A Blade SmartSpot® Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TRS350RID Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    350 A
  • Terminal Type
    Blade
  • Material
    PolyTube
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    1423.99 g
  • Voltage
    600 VAC / 600 VDC
  • Approvals
    *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Class RK5
  • Sell Pack Weight
    3.85 lb
  • Sell Pack Width
    2.62 in
  • Sell Pack Length
    2.62 in
  • Sell Pack Height
    11.75 in
  • Product Length
    11.63 in
  • Sell Pack Quantity
    1 Each
  • Product Diameter
    2.56 in
  • Body/Insulating Material
    PolyTube
  • Product Weight
    3.67 lb
  • Connection/Terminal Type
    Blade
  • Indication System Type
    SmartSpot®
  • Indication System
    Yes
  • Rated voltage AC UL
    600 V
  • Mounting
    Clip
  • Connection/Terminal Material
    Tin-Plated Copper
  • Frequency
    50/60 Hz
  • Fuse Class
    Class RK5
  • Ampere Rating
    350 A
  • Speed/Characteristic
    Time Delay
  • ROHS Compliant
    Yes
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Rated voltage DC UL
    600 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TRS350RID Description

TRS350RID Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 350A Blade SmartSpot® Tri-Onic®

Related documents TRS350RID Specs

TRS350RID F4CBE75113D140759F39ED374ED6CB59-1en.pdf
