HP6J90 Mersen Fuses
Part#:HP6J90
Manufacturer:Mersen
Alt. Part#:782001426613
Product Lifecycle:Active
In-stock parts: 2
Sep 30, 2024

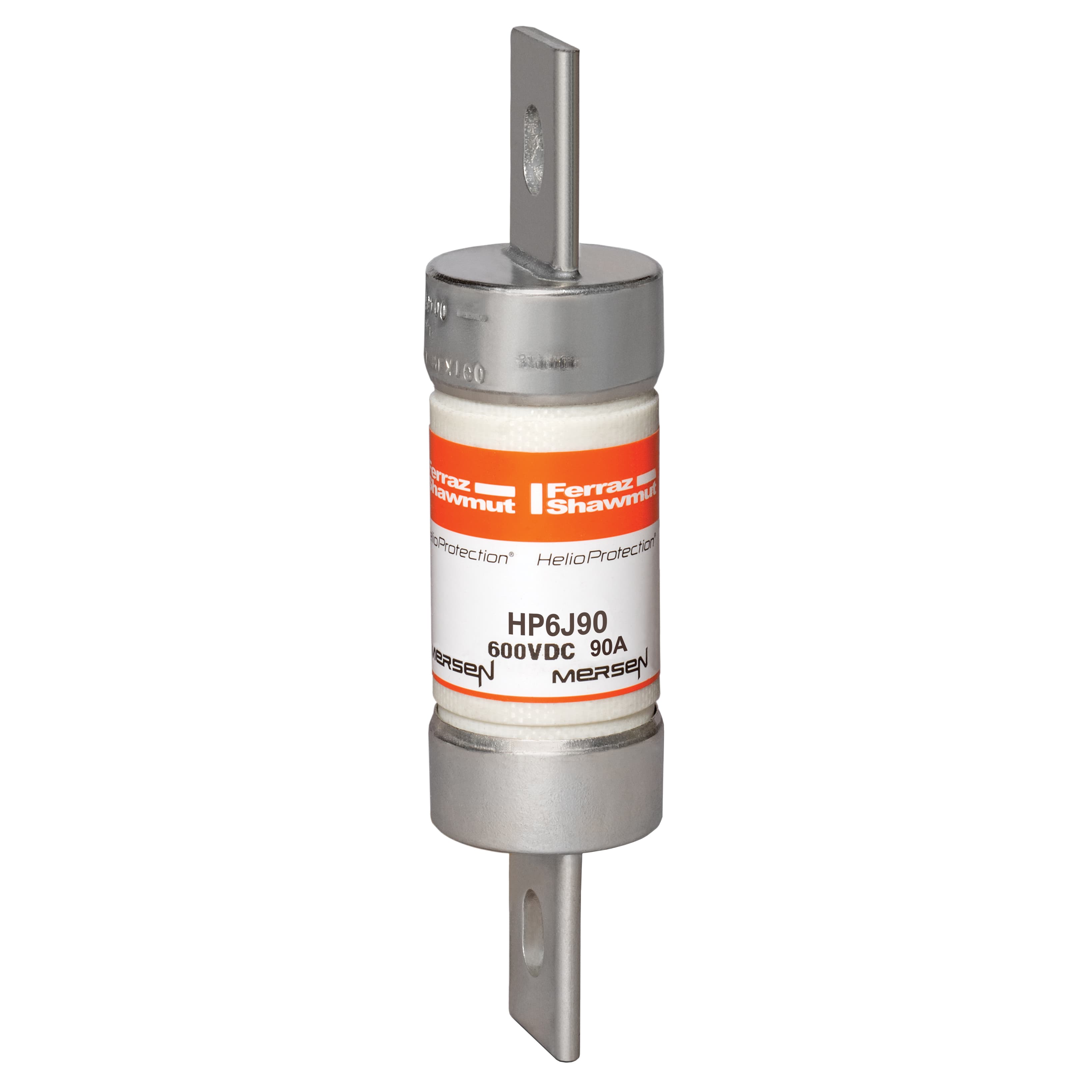

HP6J90 Mersen Photovoltaic fuse gPV 600VDC UL 90A With Blade For Clip or Bolted
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the HP6J90 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 90 A
- Terminal Type Blade
- Type Photovoltaic Fuses
- Weight 0.25 lb
- Voltage 600 VDC
- UL Certification YES
- Trip Class Photovoltaic
- Country Of Origin MX
- Fuse Class Special Purpose Fuses
- Sell Pack Length 1.06 in
- Sell Pack Height 6 in
- Product Weight 0.25 lb
- Ampere Rating 90 A
- Sell Pack Weight 1.31 lb
- Sell Pack Width 5.38 in
- Speed/Characteristic gPV
- Sell Pack Quantity 5 Each
- Product Diameter 1.08 in
- Product Length 4.62 in
- Body/Insulating Material GMG
- Mounting Clip or Bolted
- Fuse Class Photovoltaic
- AC Max I.R./Breaking Capacity: I1 10 kA
- ROHS Compliant Yes
- Rated voltage DC UL 600 V
- Connection/Terminal Material Silver-Plated Copper
- Connection/Terminal Type Blade
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
HP6J90 Description
HP6J90 Mersen Photovoltaic fuse gPV 600VDC UL 90A With Blade For Clip or Bolted
Mersen’s HP6J photovoltaic (PV) fuse series was engineered specifically
for DC Recombiner Boxes in the protection of 600VDC photovoltaic
systems. Its enhanced construction makes it ideal for continuous
temperature and current cycling withstand adding to system longevity.
The 600VDC rated HP6J designed for low minimum breaking capacity
capabilities of 1.35 times the fuse rated current value allows for safe circuit
interruption under typical low fault current conditions produced by PV
arrays. Protect your off-grid or grid tied PV system from unexpected
ground faults and line faults using Mersen’s HelioProtection® fuse line.
*Smallest footprint in the industry
*UL class J dimensions
*Low fault current interrupting capability
*Durable construction for enhanced system longevity
*Temperature cycle withstand capability
*Guaranteed operation at temperature extremes
*Industry’s first UL Listed Solution
*Globally accepted
*Re-combiner (sub-combiner, array combiner, master combiner) applications
*Inverter DC input protection
*Battery charge controllers
