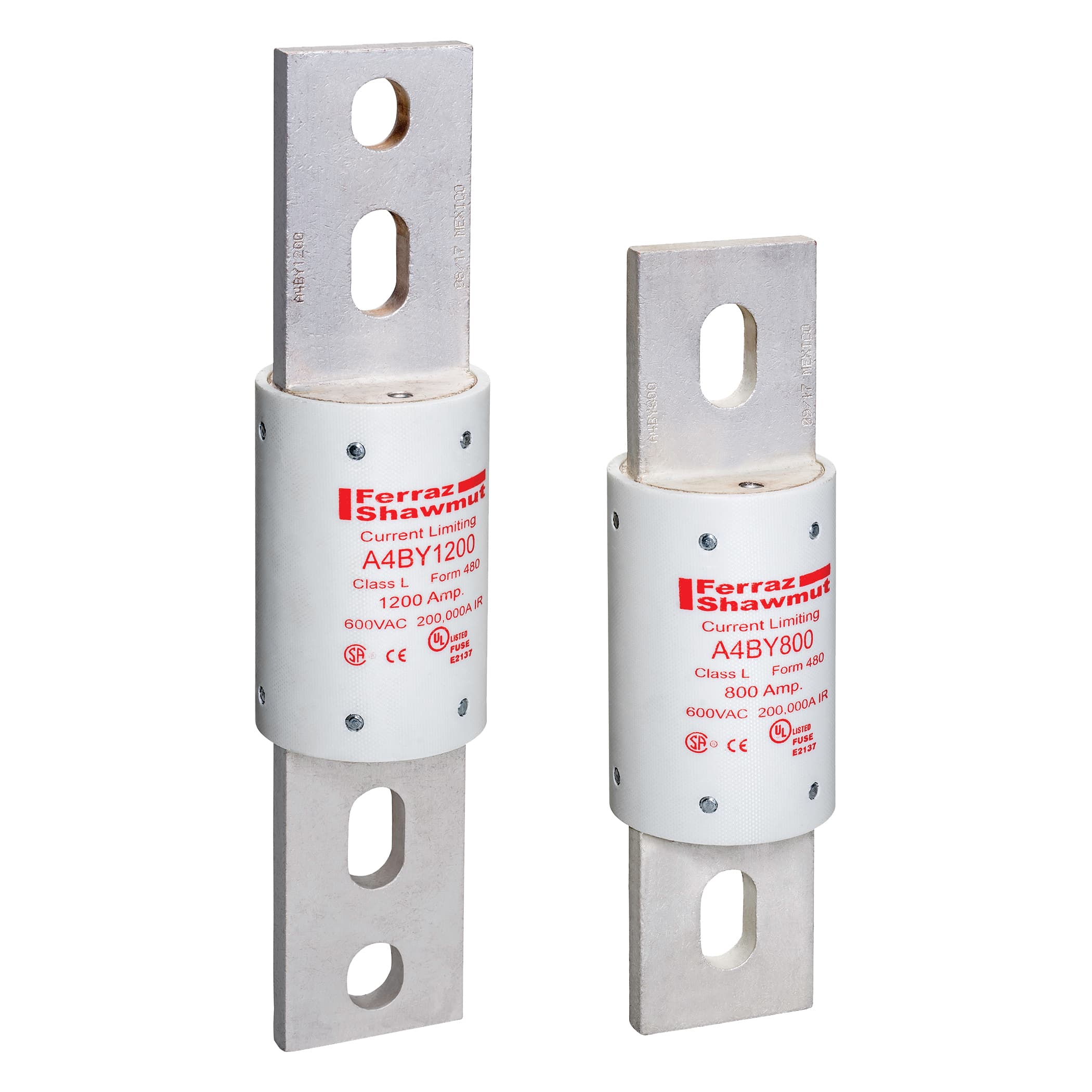

A4BY2500-TI Mersen Fuses
Product Details
- Current Rating 2500 A
- Terminal Type Blade
- Material GMG
- Type Low Voltage UL/CSA Fuses
- Weight 6938.55 g
- Voltage 600 VAC / 300 VDC
- Approvals *Mersen Self-Certification, UL Listed to Standard 248-10, File E2137 *CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1 *DC Tested to UL 248 limits (Mersen Self-Certified)
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class L
- Sell Pack Length 11.75 in
- Sell Pack Height 4.62 in
- Sell Pack Width 5.06 in
- Sell Pack Weight 16.07 lb
- Body/Insulating Material GMG
- Product Length 10.75 in
- Sell Pack Quantity 1 Each
- Product Diameter 4.5 in
- Product Weight 15.3 lb
- Connection/Terminal Type Blade
- Connection/Terminal Material Silver-Plated Copper
- Rated voltage AC UL 600 V
- Fuse Class Class L
- Speed/Characteristic Time Delay
- Mounting Bolted
- Indication System Type TI Indicator
- Indication System Yes
- AC Max I.R./Breaking Capacity: I1 200 kA
- Rated voltage DC UL 300 V
- ROHS Compliant Yes
- Ampere Rating 2500 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A4BY2500-TI on Advantage Electric Supply is $8,865.43. Order now.
About the product
A4BY2500-TI Mersen - Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 2500A Blade TI Indicator Amp-Trap®
