A4BY3000 Mersen Fuses

A4BY3000 on Advantage Electric Supply
Mersen

Part#:A4BY3000

Alt. Part#:782001939267

Manufacturer:Mersen

Category:Fuses

Product Lifecycle:Active

Product description

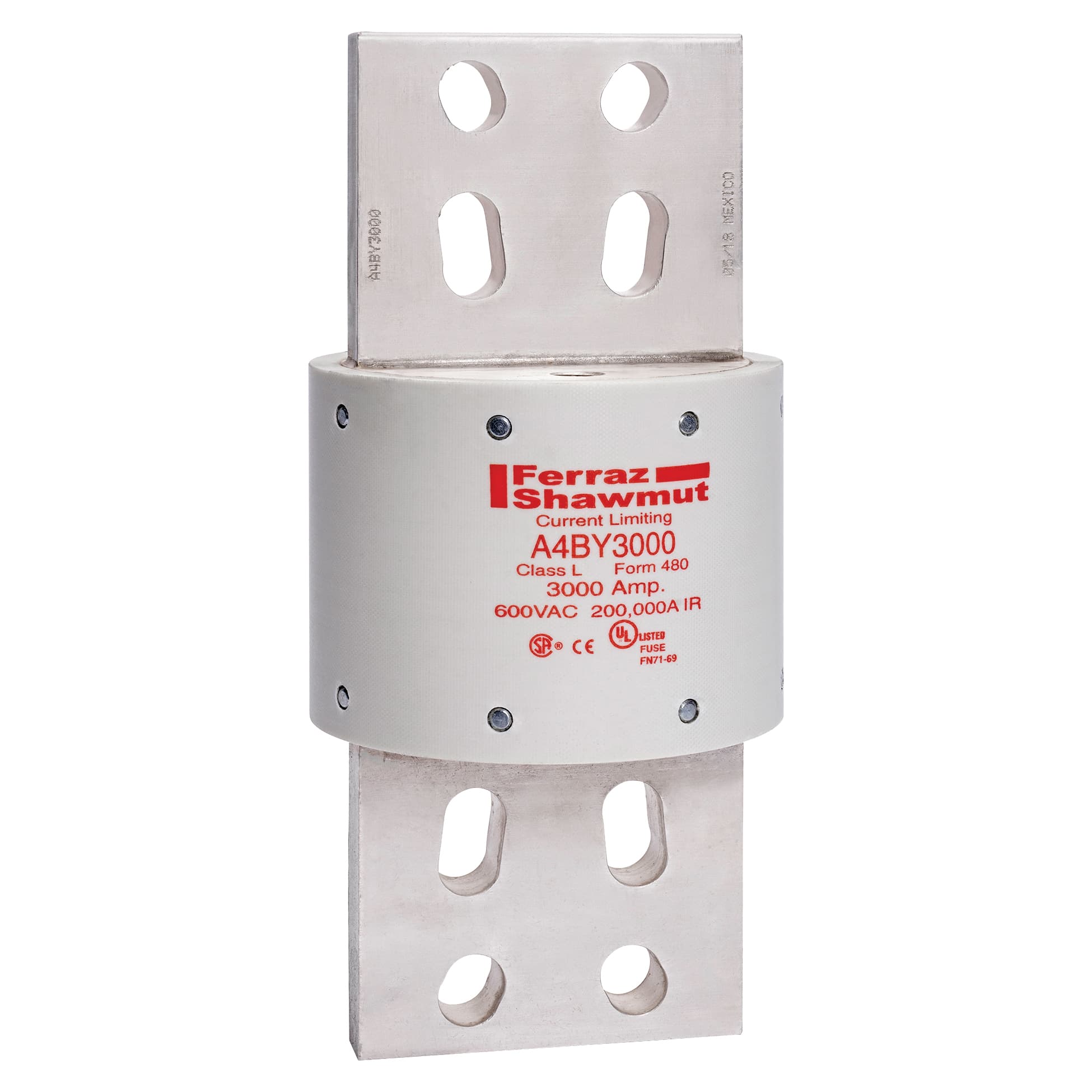

A4BY3000 Mersen - Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 3000A Blade Amp-Trap®

Product Details

  • Current Rating
    3000 A
  • Terminal Type
    Blade
  • Material
    GMG
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    8752.55 g
  • Voltage
    600 VAC / 300 VDC
  • Approvals
    *Mersen Self-Certification, UL Listed to Standard 248-10, File E2137 *CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1 *DC Tested to UL 248 limits (Mersen Self-Certified)
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Class L
  • Volts:
    600 VAC
  • Time Delay:
    Voltage Rating
  • Terminal Type:
    Blade
  • Series:
    A4BY
  • Type:
    Class L
  • Length:
    10-3/4 Inch
  • Interrupting Rating:
    200 Kiloamp (AC)
  • Amps:
    3000 A
  • Diameter:
    5 Inch
  • Shipping Weight:
    17.50 lbs.
  • Shipping Width:
    6.00 In.
  • Approval:
    UL 248/248-10
  • UPC:
    782001939267
  • Characteristics:
    Time Delay
  • Shipping Height:
    6.00 In.
  • Shipping Length:
    13.00 In.
  • Sell Pack Width
    5.25 in
  • Sell Pack Height
    5.62 in
  • Sell Pack Weight
    20.27 lb
  • Sell Pack Length
    11.75 in
  • Sell Pack Quantity
    1 Each
  • Product Diameter
    5 in
  • Product Length
    10.75 in
  • Body/Insulating Material
    GMG
  • Rated voltage AC UL
    600 V
  • Product Weight
    19.3 lb
  • Connection/Terminal Type
    Blade
  • Connection/Terminal Material
    Silver-Plated Copper
  • Fuse Class
    Class L
  • Rated voltage DC UL
    300 V
  • Speed/Characteristic
    Time Delay
  • Ampere Rating
    3000 A
  • ROHS Compliant
    Yes
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Mounting
    Bolted

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A4BY3000 on Advantage Electric Supply is $8,047.91. Order now.


About the product

A4BY3000 Mersen - Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 3000A Blade Amp-Trap®
