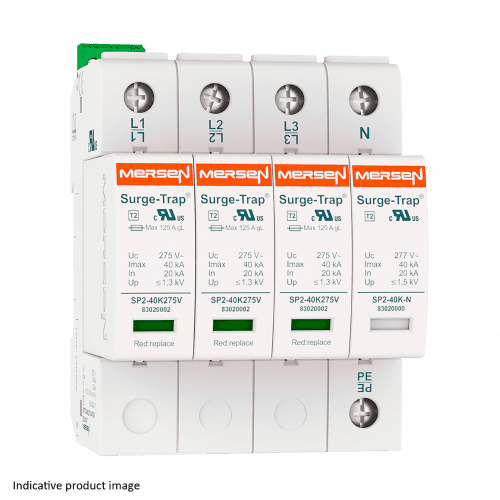

83020144 Mersen Electronic Components

Product Details

• Sell Pack Height
  80 mm
• Sell Pack Length
  105 mm
• Sell Pack Quantity
  1 EACH
• Sell Pack Width
  80 mm
• Sell Pack Weight
  0.4 kg
• Product Length
  70 mm
• Product Weight
  0.4 kg
• Product Width
  72 mm
• Product Height
  90 mm
• Replacement Plug N-PE
  SP2-40K-N
• VPR L-N
  700 V
• Replacement Plug L-N
  SP2-40K150V
• VPR N-G
  700 V
• VPR L-L
  1200 V
• VPR L-G
  1200 V
• MCOV L-N
  175 V
• MCOV N-G
  277 V
• MCOV L-L
  350 V
• MCOV L-G
  175 V
• Up at In (L-N)
  ≤1 kV
Up at In (N-PE)
≤1.5 kV
Uc (N-PE)
277 V
Uc (L-N)
175 V
Indication System
Yes
Indication System Type
Visual Indicator
MOV Response Time
25 ns
Short Circuit Withstand (ISCCR)
25 kA
Housing Material
PA66 CT1; V-0
Number of Poles
4-Pole
Max. Back-Up Fuse
125 A gG
Short Circuit Current Rating (SCCR)
50 ... 100 kA
Torque Rating
4 N m
AC or DC
AC
ROHS Compliant
Yes
Nominal Operating Volt Rating (Un)
120 / 208 V
Catalogue No.
STPT2-40K150V-4PG
Following Current (Ifi)
0,1 kA
IEC SPD Type
Type 2 / Class II
Max Discharge Current : Imax (8/20)
40kA
System Configuration
TT. TNS
Nominal Discharge Current (In) (8/20)
20kA
