601404 Lapp Industrial Automation Components

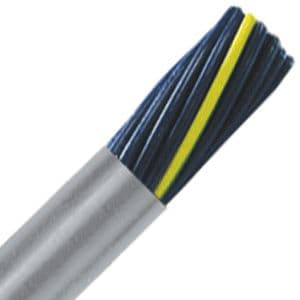

Lapp 601404 ÖLFLEX 190 4G2.5 14/4C
Lapp

Part#:601404

Manufacturer:Lapp

Product Lifecycle:Active

In-stock parts: 5

Sep 19, 2024

ÖLFLEX 190 4G2.5 14/4C

About the manufacturer: Lapp is one of the manufacturers that offers Industrial Automation Components that you can order at Advantage Electric Supply site. Lapp Group is a leading worldwide provider of premium cables, wires, cable accessories, and systems.

Check out the 601404 Lapp price in the box on the right side or send a quick quote.

Product Details

  • WEIGHT LBS/MFT
    121
  • MANUFACTURER PART NUMBER
    601404
  • STANDARDS/APPROVALS
    UL Approved CSA Approved CE Approved
  • UL STYLE / STANDARD
    UL 13 UL 2277
  • DYNAMIC TEMPERATURE RATING
    -13°F to +194°F-25°C to +90°C
  • ATTRIBUTES
    UL Oil Res I/IISunlight resistant Direct burialNFPA 79
  • NOMINAL OD (MM)
    9.8
  • TRAY RATINGS
    UL TC-ER
  • NOMINAL OD (IN)
    0.386
  • INSULATION
    PVC
  • STATIC TEMPERATURE RATING
    -40°F to +221°F-40°C to +105°C
  • VOLTAGE
    600V
  • SHIELDING
    Unshielded
  • TEMPERATURE
    -13°F to +194°F -25°C to +90°C
  • JACKET COLOR
    Gray
  • NUMBER OF CONDUCTORS
    4
  • CONDUCTOR STRANDING
    Stranded
  • JACKET MATERIAL
    Thermoplastic Polymer
  • SERIES
    ÖLFLEX® 190 / 190 CY
  • CONDUCTOR COLOR
    Black with white printing plus green/yellow ground
  • CONDUCTOR MATERIAL
    Bare copper
  • AWG/GAUGE
    14

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 601404 Specs

601404 Datasheet.pdf
