S1201 Lapp Industrial Automation Components

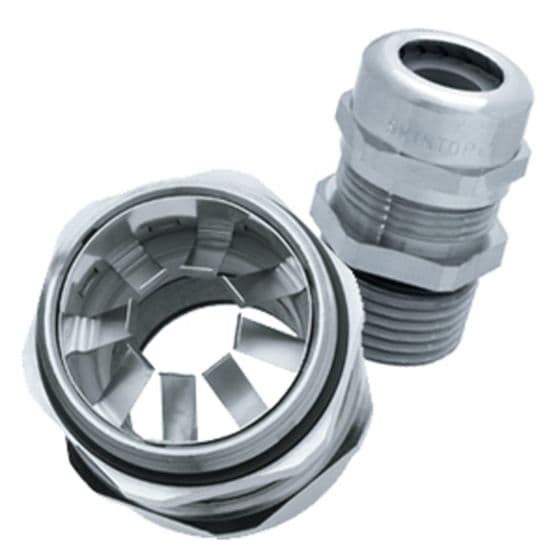

Lapp S1201 SLRN 1" SKINTOP GY
Lapp

Part#:S1201

Manufacturer:Lapp

Product Lifecycle:Active

In-stock parts: 3

Sep 19, 2024

SLRN 1" SKINTOP GY

About the manufacturer: Lapp is one of the manufacturers that offers Industrial Automation Components that you can order at Advantage Electric Supply site. Lapp Group is a leading worldwide provider of premium cables, wires, cable accessories, and systems.

Check out the S1201 Lapp price in the box on the right side or send a quick quote.

Product Details

  • MANUFACTURER PART NUMBER
    S1201
  • STANDARDS/APPROVALS
    UL Approved
  • IP RATING
    IP68
  • STATIC TEMPERATURE RATING
    -40°F to +212°F-40°C to +100°C
  • DYNAMIC TEMPERATURE RATING
    -13°F to +176°F-25°C to +80°C
  • BUSHING
    CR
  • CLAMPING RANGE (MM)
    14 - 25
  • LOCKNUT
    Not Included
  • WRENCHING FLATS (IN)
    1.654
  • CLAMPING RANGE (IN)
    0.551 - 0.984
  • THREAD TYPE
    NPT
  • OVERALL LENGTH (IN)
    2.362
  • COLOR
    Gray
  • BODY MATERIAL
    Polyamide
  • THREAD SIZE
    1
  • THREAD LENGTH (IN)
    0.591
  • SERIES
    SKINTOP® SLRN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents S1201 Specs

S1201 Datasheet.pdf

This item can ship within 24h!

Manufacturer warranty

$6.52

Stock:

3

Select Qty:

$6.52

$6.52 each
