RO3104 ifm Electronic Electronic Components
Part#:RO3104
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

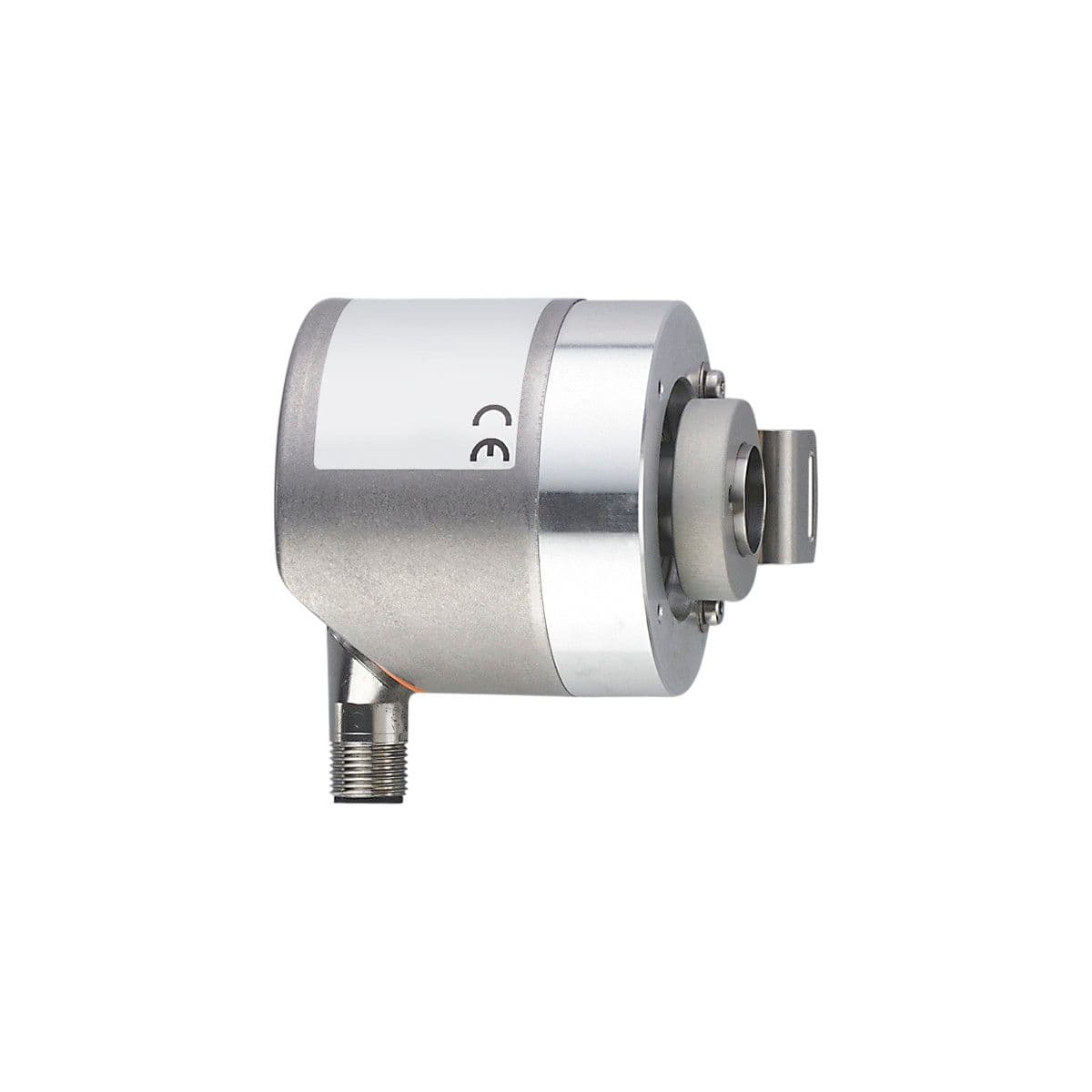

Incremental encoder with hollow shaft, Resolution: 1...10000; (configurable; Factory setting: 1024) resolution, Communication interface: IO-Link, Shaft design: hollow shaft open to one side, Shaft diameter [mm]: 15.875, Function principle: incremental, De
Product Details
- Short-circuit protection yes
- Phase difference A und B [°] 90
- Factory setting Output function: HTL (50 mA)
- Switching frequency [kHz] 1000
- Reverse polarity protection yes
- Electrical design HTL/TTL
- Max. revolution electrical [U/min] 12000
- Power-on delay time [s] 0.5
- Protection class III
- Current consumption [mA] < 150
- Detection system magnetic
- Resolution 1...10000; (configurable; Factory setting: 1024) resolution
- Operating voltage [V] 4.75...30 DC
- Communication interface IO-Link
- Shaft diameter [mm] 15.875
- Function principle incremental
- Shaft design hollow shaft open to one side
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
