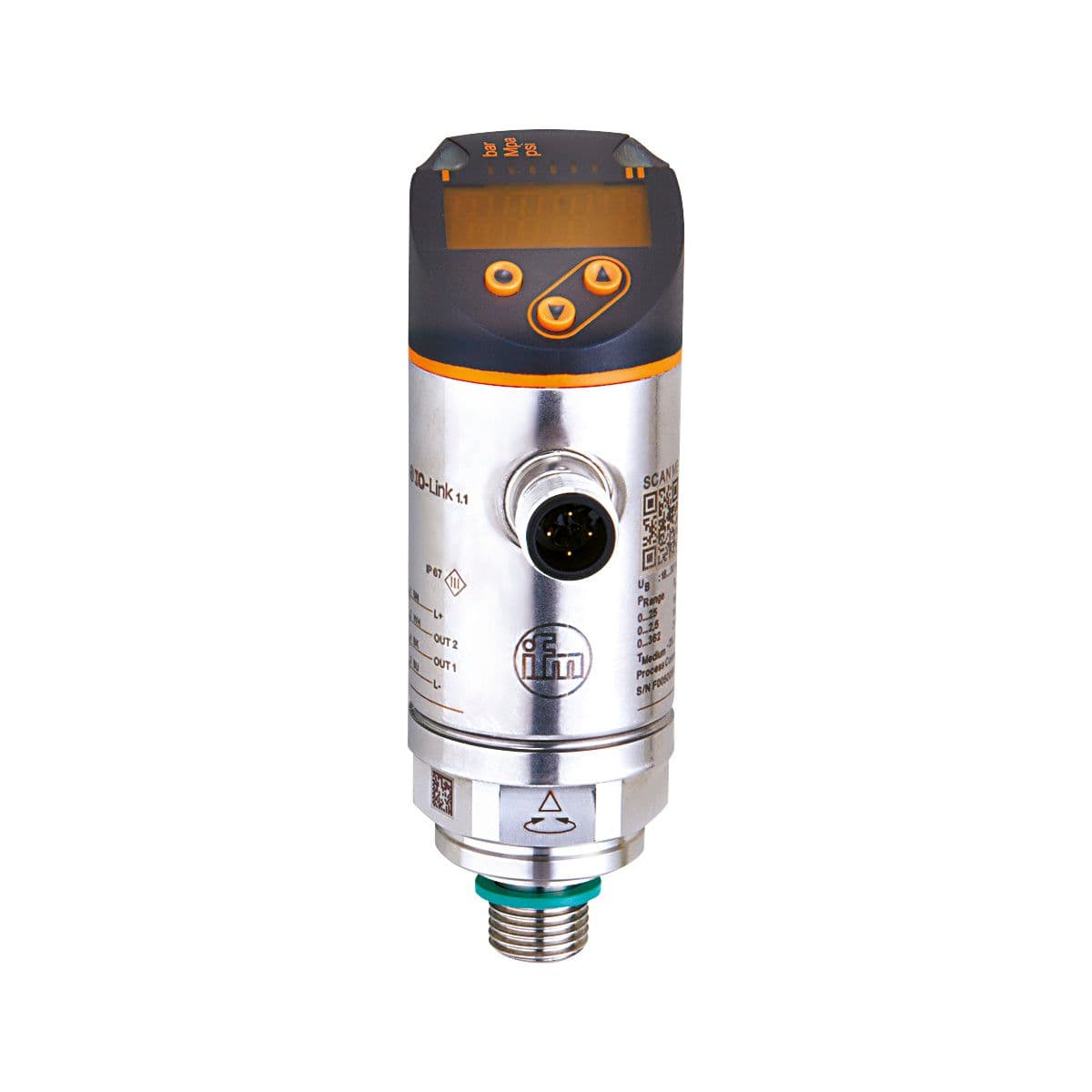

PN7594 ifm Electronic Electronic Components

Product Details

• Overload protection
  yes
• Output function
  normally open / closed; (configurable)
• Reverse polarity protection
  yes
• Min. bursting pressure
  150 bar 2175 psi 15 MPa
• Output signal
  switching signal; IO-Link; (configurable)
• Type of short-circuit protection
  yes (non-latching)
• Integrated watchdog
  yes
• Electrical design
  PNP/NPN
• Short-circuit protection
  yes
• Switching frequency DC [Hz]
  < 170
• Max. voltage drop switching output DC [V]
  2.5
• Permanent current rating of switching output DC [mA]
  150; (200 (...60 °C) 250 (...40 °C))
• Number of digital outputs
  2
• Number of inputs and outputs
  Number of digital outputs: 2
• Current consumption [mA]
  < 35
• Total number of outputs
  2
• Power-on delay time [s]
  < 0.3
• Protection class
  III
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Type of pressure
relative pressure; vacuum
Pressure rating
75 bar 1087 psi 7.5 Mpa
Vacuum resistance [mbar]
-1000
Measuring range
-1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
Application
for industrial applications
Medium temperature [°C]
-25...80
Media
liquids and gases
Measuring element
ceramic-capacitive pressure measuring cell
System
gold-plated contacts
Process connection
threaded connection G 1/4 external thread Internal thread:M5
