PN7515 ifm Electronic Electronic Components
Part#:PN7515
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

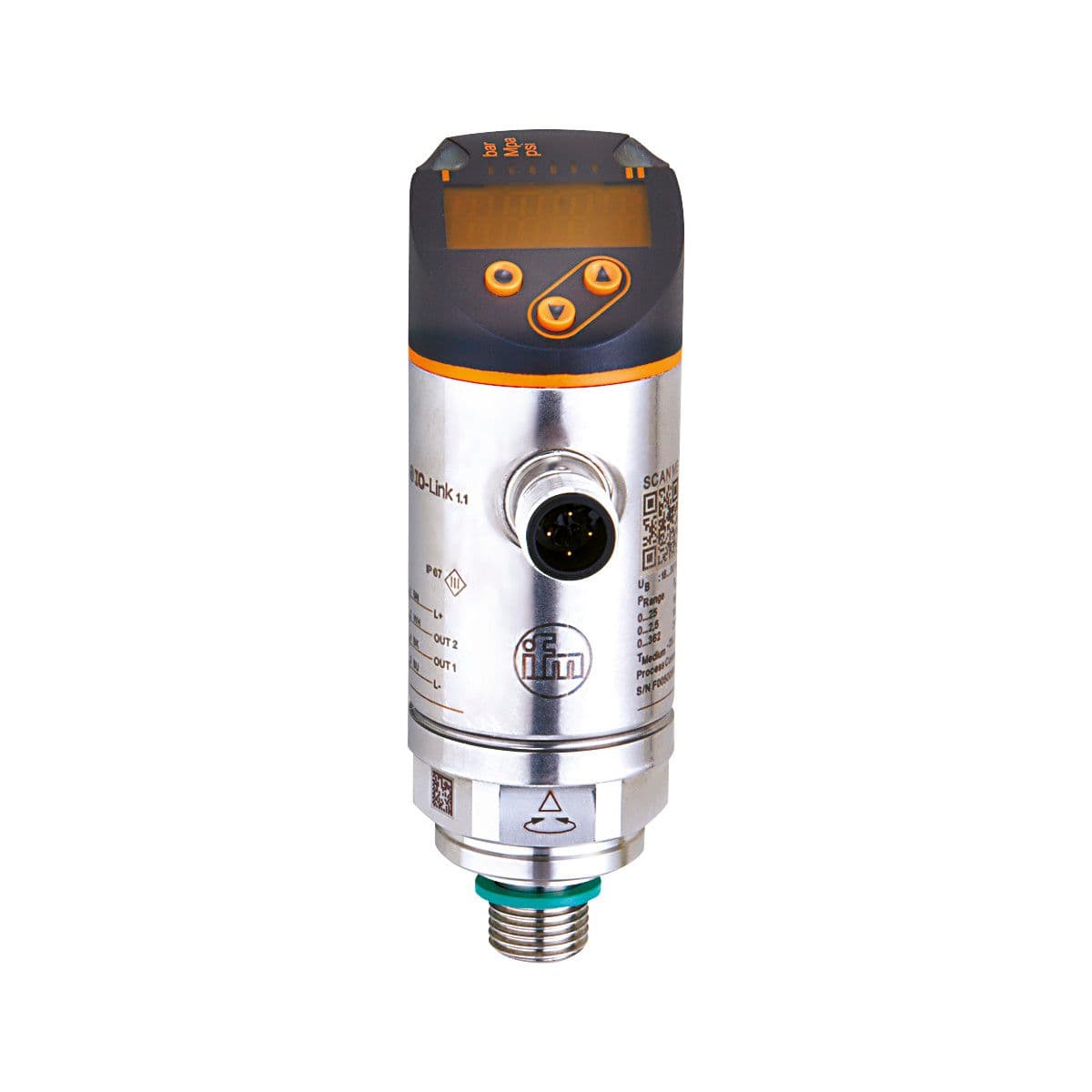

Pressure sensor with display, Two switching outputs, one of them with IO-Link communication interface, Output signal: switching signal; IO-Link; (configurable), Measuring range: -1...6 bar -14.5...87 psi 100...600 kPa, Process connection: threaded connect
Product Details
- Overload protection yes
- Short-circuit protection yes
- Type of short-circuit protection yes (non-latching)
- Switching frequency DC [Hz] < 170
- Permanent current rating of switching output DC [mA] 150; (200 (...60 °C) 250 (...40 °C))
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open / closed; (configurable)
- Electrical design PNP/NPN
- Number of digital outputs 2
- Number of inputs and outputs Number of digital outputs: 2
- Total number of outputs 2
- Integrated watchdog yes
- Reverse polarity protection yes
- Power-on delay time [s] < 0.3
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Current consumption [mA] < 35
- Protection class III
- Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
- Type of pressure relative pressure; vacuum
- Pressure rating 40 bar 600 psi 4000 kPa
- Vacuum resistance [mbar] -1000
- Min. bursting pressure 100 bar 1500 psi 10000 kPa
- System gold-plated contacts
- Measuring element ceramic-capacitive pressure measuring cell
- Application for industrial applications
- Media liquids and gases
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Medium temperature [°C] -25...80
- Output signal switching signal; IO-Link; (configurable)
- Measuring range -1...6 bar -14.5...87 psi 100...600 kPa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
