PM1789 ifm Electronic Electronic Components
Part#:PM1789
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

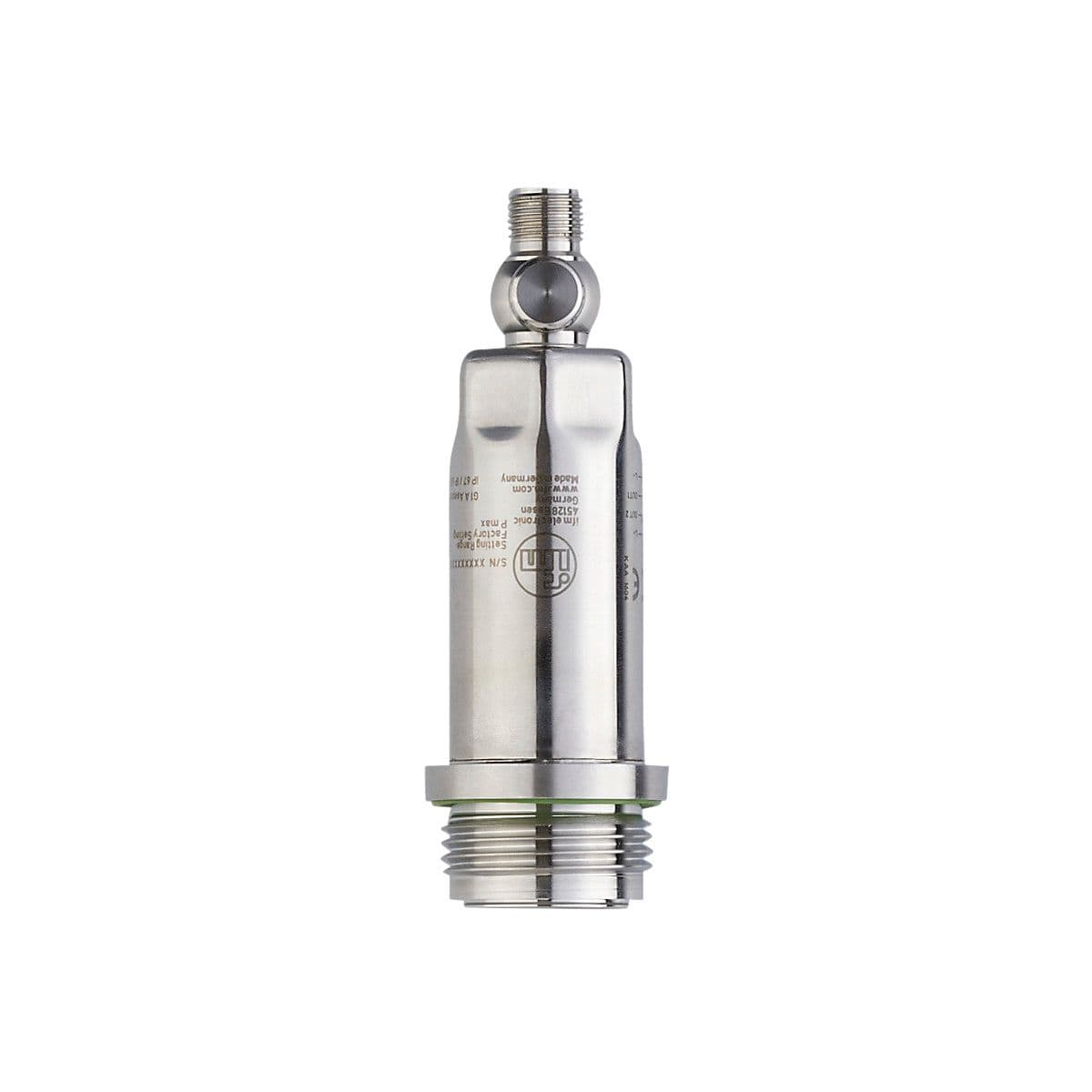

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link; (configurable), Measuring range: -0.005...0.1 bar -5...100 mbar -0.073...1.45 psi -0.5...10 kPa, Process connectio
Product Details
- Short-circuit proof yes
- Output signal analog signal; IO-Link; (configurable)
- Number of inputs and outputs Number of analog outputs: 1
- Power-on delay time [s] 1
- Total number of outputs 2
- Analog current output [mA] 4...20; (scalable)
- Current consumption [mA] 3.5...21.5
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Application flush mountable for the food and beverage industry
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Overload protection yes
- Number of analog outputs 1
- Integrated watchdog yes
- Protection class III
- Reverse polarity protection yes
- Operating voltage [V] 18...30 DC
- MAWP (for applications according to CRN) [bar] 4
- Type of pressure relative pressure
- No dead space yes
- Pressure rating 4000 mbar 58 psi 400 kPa
- Vacuum resistance [mbar] -1000
- Min. bursting pressure 30000 mbar 435 psi 3000 kPa
- Temperature monitoring no
- Medium temperature [°C] -25...125; (150 max. 1h)
- Media viscous media and liquids with suspended particles; liquids and gases
- Measuring element ceramic-capacitive pressure measuring cell
- System gold-plated contacts
- Process connection threaded connection G 1 external thread Aseptoflex Vario
- Measuring range -0.005...0.1 bar -5...100 mbar -0.073...1.45 psi -0.5...10 kPa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
