PM1709 ifm Electronic Electronic Components
Part#:PM1709
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

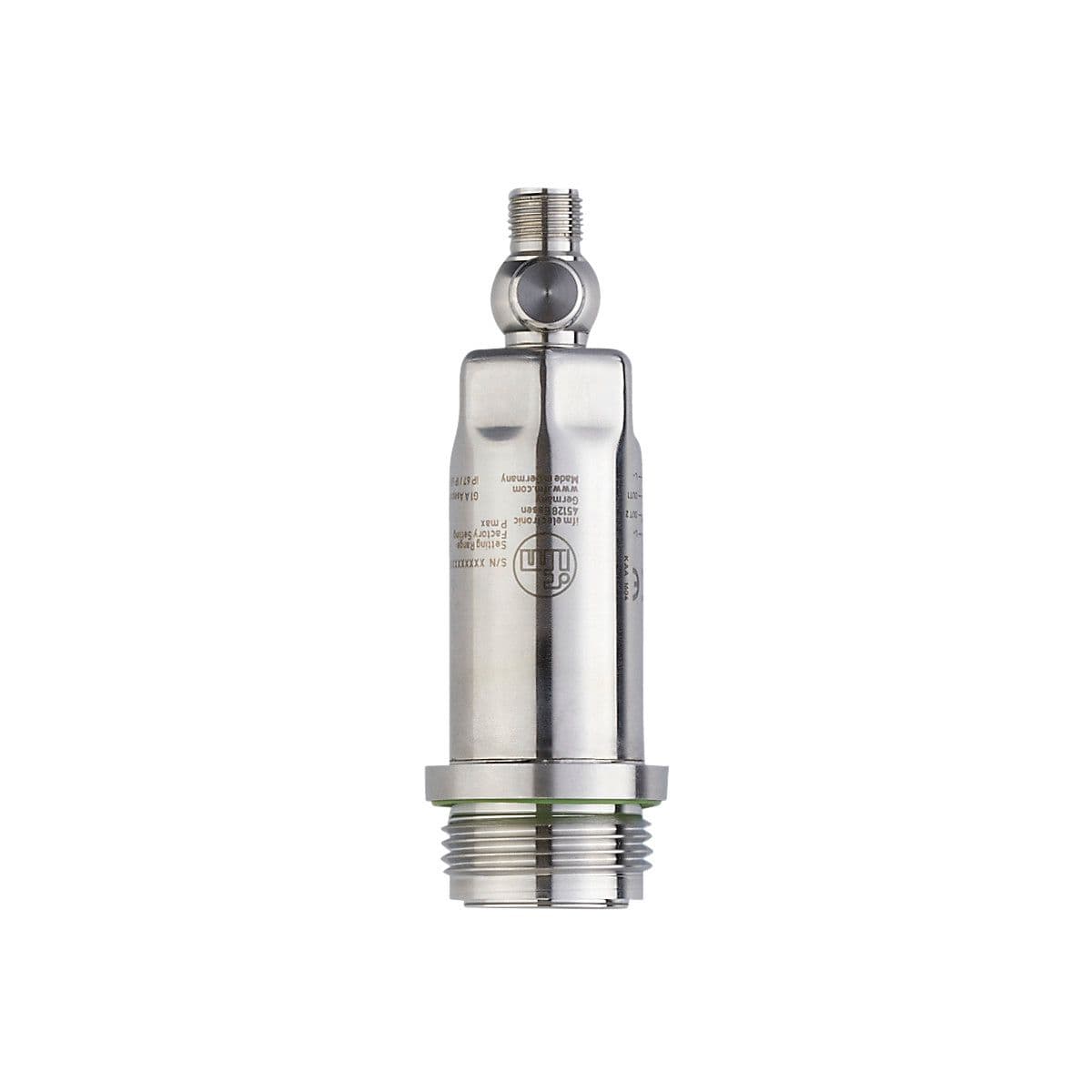

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link; (configurable), Measuring range: -1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa, Process connection:
Product Details
- Power-on delay time [s] 1
- Analog current output [mA] 4...20; (scalable)
- Output signal analog signal; IO-Link; (configurable)
- Number of inputs and outputs Number of analog outputs: 1
- Operating voltage [V] 18...30 DC
- MAWP (for applications according to CRN) [bar] 10
- Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
- Overload protection yes
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Short-circuit proof yes
- Number of analog outputs 1
- Total number of outputs 2
- Current consumption [mA] < 45
- Integrated watchdog yes
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Reverse polarity protection yes
- Protection class III
- No dead space yes
- Type of pressure relative pressure; vacuum
- Vacuum resistance [mbar] -1000
- Min. bursting pressure 30000 mbar 435 psi 3000 kPa
- Pressure rating 10000 mbar 145 psi 1000 kPa
- Measuring element ceramic-capacitive pressure measuring cell
- Temperature monitoring no
- Application flush mountable for the food and beverage industry
- Medium temperature [°C] -25...125; (150 max. 1h)
- Process connection threaded connection G 1 external thread Aseptoflex Vario
- Media viscous media and liquids with suspended particles; liquids and gases
- System gold-plated contacts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
