PM1604 ifm Electronic Electronic Components
Part#:PM1604
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

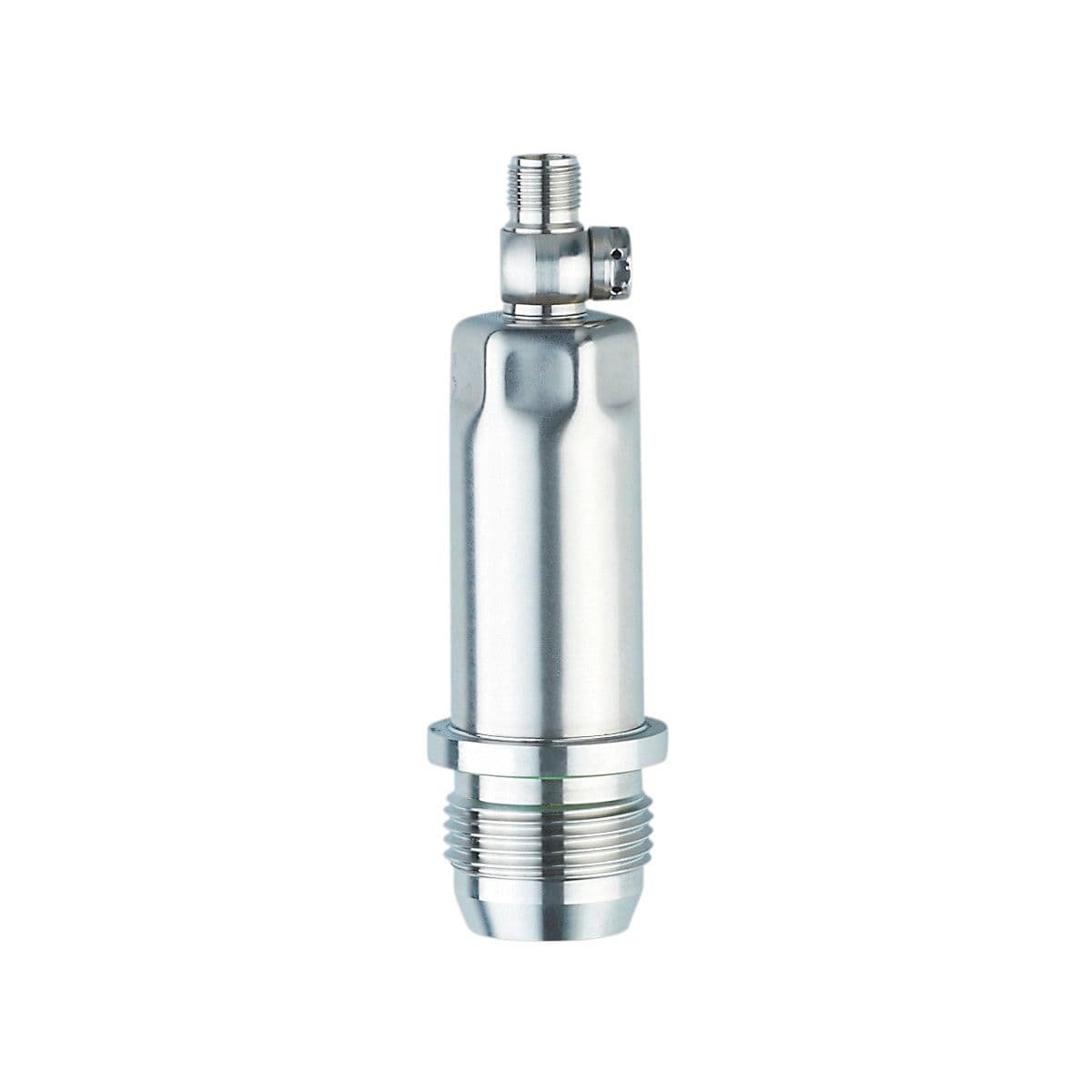

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link; (configurable), Measuring range: -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa, Process connection: thr
Product Details
- Overload protection yes
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Number of analog outputs 1
- Analog current output [mA] 4...20; (scalable)
- Short-circuit proof yes
- Total number of outputs 2
- Reverse polarity protection yes
- Number of inputs and outputs Number of analog outputs: 1
- Current consumption [mA] 3.5...21.5
- Power-on delay time [s] 0.5
- Integrated watchdog yes
- Type of pressure relative pressure; vacuum
- MAWP (for applications according to CRN) [bar] 50
- No dead space yes
- Pressure rating 50 bar 725 psi 5 Mpa
- Min. bursting pressure 150 bar 2175 psi 15 MPa
- Operating voltage [V] 18...30 DC
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Protection class III
- Vacuum resistance [mbar] -1000
- Medium temperature [°C] -25...125; (150 max. 1h)
- Application flush mountable for the food and beverage industry
- Media viscous media and liquids with suspended particles; liquids and gases
- Temperature monitoring no
- Measuring element ceramic-capacitive pressure measuring cell
- Process connection threaded connection G 1 external thread sealing cone
- System gold-plated contacts
- Measuring range -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
- Output signal analog signal; IO-Link; (configurable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
