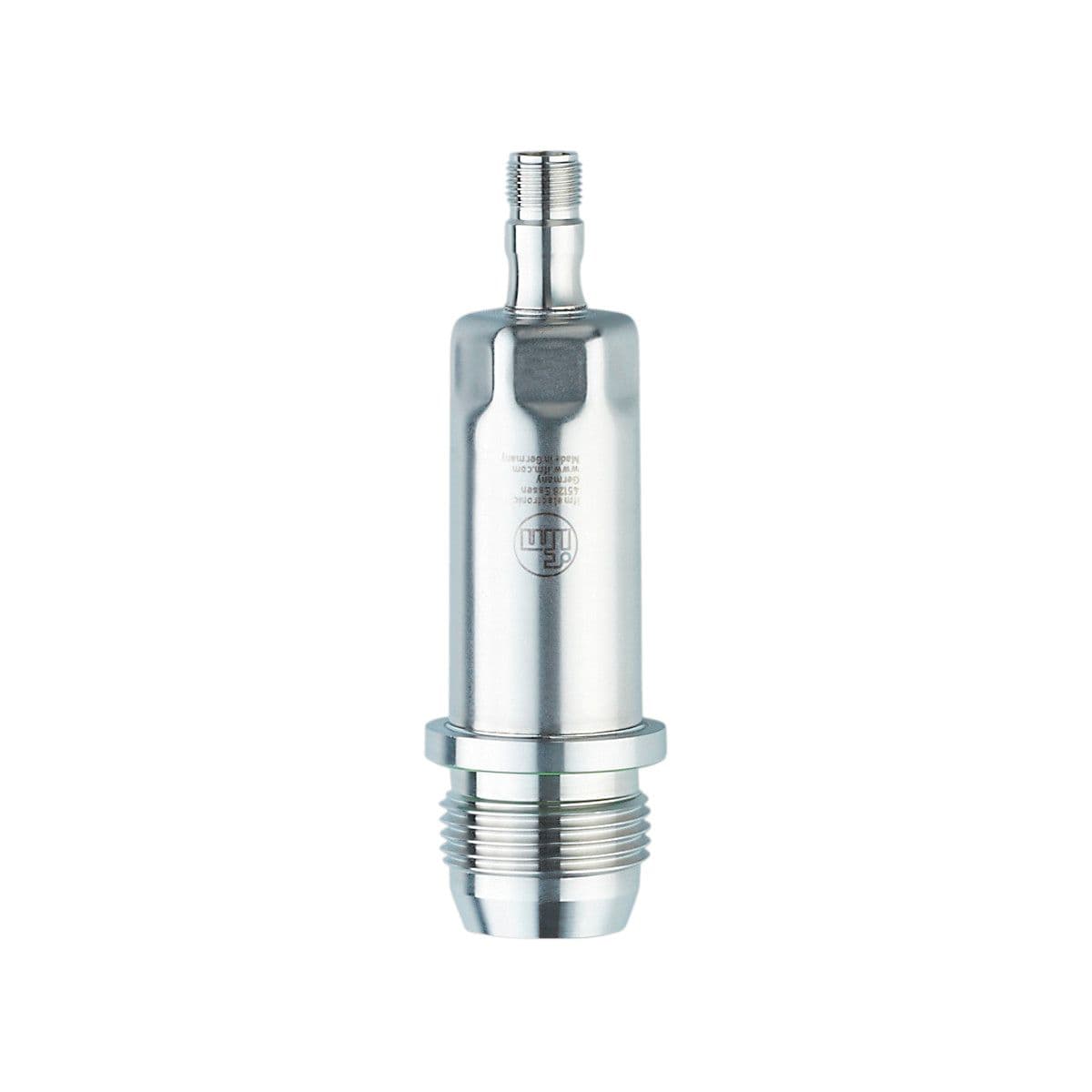

PM1602 ifm Electronic Electronic Components

Product Details

• Operating voltage [V]
  18...30 DC
• No dead space
  yes
• Type of pressure
  relative pressure; vacuum
• Pressure rating
  200 bar 2900 psi 20 Mpa
• Media
  viscous media and liquids with suspended particles; liquids and gases; use in gases at pressures > 25 bar only on request
• Min. bursting pressure
  650 bar 9425 psi 65 MPa
• Medium temperature [°C]
  -25...125; (150 max. 1h)
• Application
  flush mountable for the food and beverage industry
• Process connection
  threaded connection G 1 external thread sealing cone
• Temperature monitoring
  no
• System
  gold-plated contacts
• Measuring element
  ceramic-capacitive pressure measuring cell
• Measuring range
  -1...100 bar -15...1450 psi -0.1...10 MPa
• Output signal
  analog signal; IO-Link; (configurable)
• Short-circuit proof
  yes
• Overload protection
  yes
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• Number of analog outputs
  1
• Total number of outputs
  2
• Analog current output [mA]
  4...20; (scalable)
Number of inputs and outputs
Number of analog outputs: 1
Reverse polarity protection
yes
Protection class
III
Min. insulation resistance [MΩ]
100; (500 V DC)
Power-on delay time [s]
0.5
Current consumption [mA]
< 45
Integrated watchdog
yes
Vacuum resistance [mbar]
-1000
