PI2309 ifm Electronic Electronic Components
Part#:PI2309
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

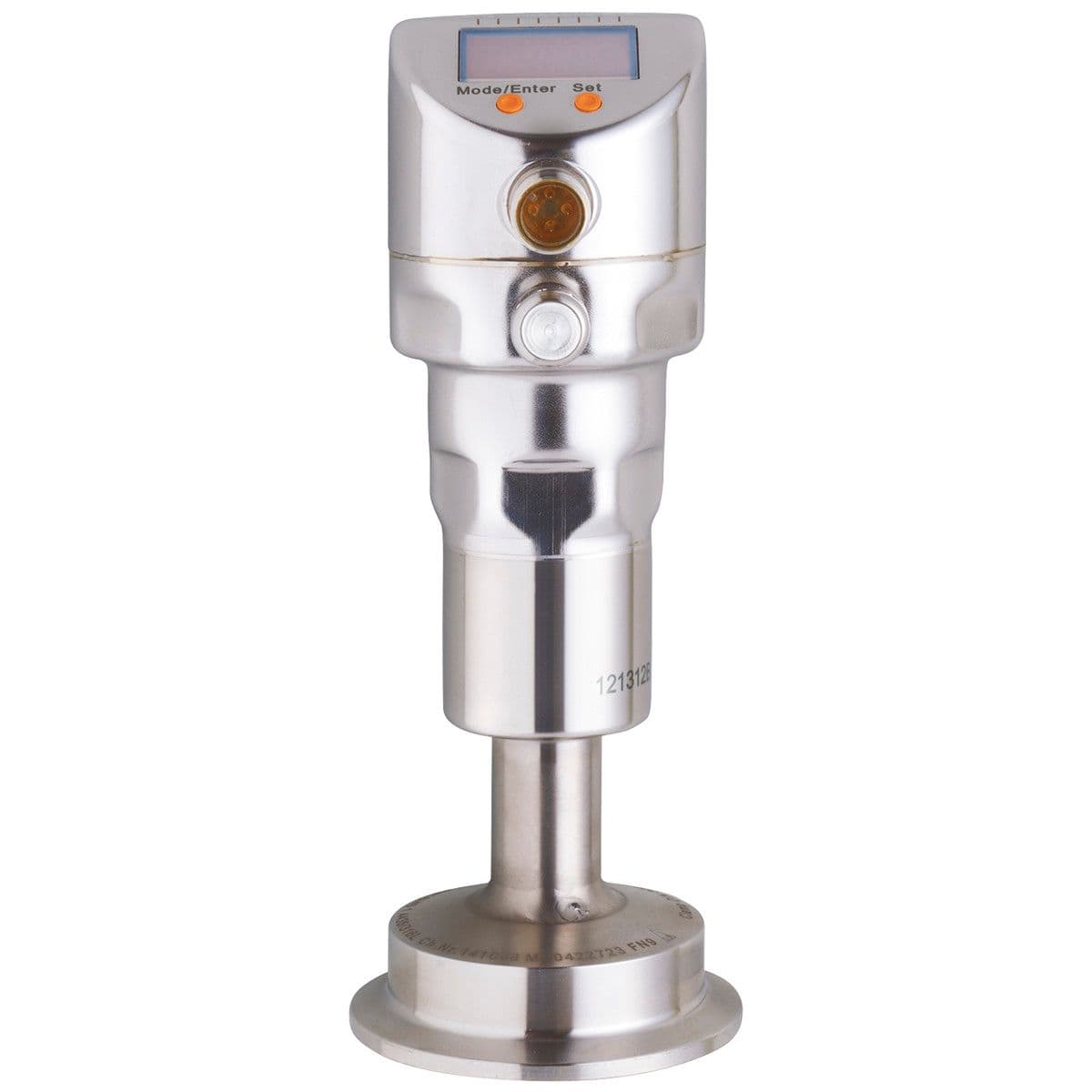

Flush pressure sensor with display, For use in high temperatures in the food and beverage industry, Output signal: switching signal; analog signal; IO-Link; (configurable), Measuring range: -1000...1000 mbar -14.5...14.5 psi -100...100 kPa, Process connec
Product Details
- Switching frequency DC [Hz] 125
- Permanent current rating of switching output DC [mA] 250
- Max. voltage drop switching output DC [V] 2
- Type of short-circuit protection yes (non-latching)
- Max. load [Ω] (Ub - 10 V) / 20 mA
- Overload protection yes
- Analog current output [mA] 4...20, invertible; (scalable)
- Short-circuit protection yes
- Electrical design PNP/NPN
- Number of analog outputs 1
- Output function normally open / closed; (configurable)
- Number of digital outputs 2
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Integrated watchdog yes
- Current consumption [mA] < 45
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Operating voltage [V] 18...32 DC
- Power-on delay time [s] 0.5
- Type of pressure relative pressure; vacuum
- Protection class III
- Reverse polarity protection yes
- Media viscous media and liquids with suspended particles; liquids and gases
- Application flush mountable for the food and beverage industry
- Min. bursting pressure 30000 mbar 435 psi 3000 kPa
- System gold-plated contacts
- Medium temperature [°C] -25...200
- Output signal switching signal; analog signal; IO-Link; (configurable)
- Pressure rating 10000 mbar 145 psi 1000 kPa
- Process connection Clamp DN50 (2") DIN 32676 (ISO 2852)
- Measuring range -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
