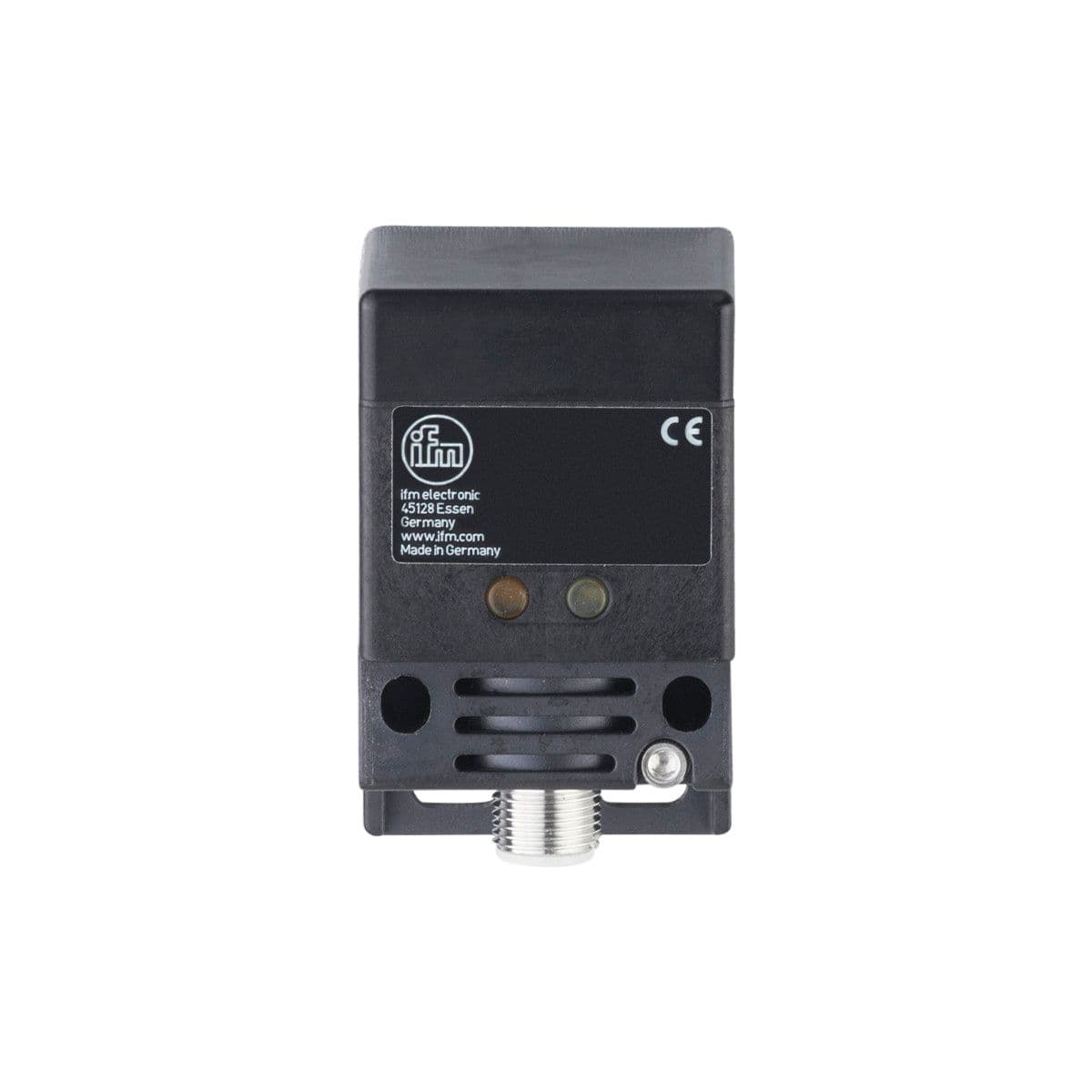

IM5098 ifm Electronic Electronic Components

Name: IM5098
Brand: ifm Electronic

Part#:IM5098

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, Correction factor K=1: Constant sensing range on all metals, Electrical design: PNP, Output function: complementary, Sensing range [mm]: 35, Housing: rectangular, Dimensions [mm]: 40 x 40 x 66, System: gold-plated contacts; correction fa

Product Details

Overload protection
yes
Permanent current rating of switching output DC [mA]
250
Protection class
II
Short-circuit protection
yes
Switching frequency DC [Hz]
250
Type of short-circuit protection
yes (non-latching)
Reverse polarity protection
yes
Max. voltage drop switching output DC [V]
2.5
Current consumption [mA]
20; (24 V)
Magnetic-field immune
yes
Operating voltage [V]
10...36 DC
Dimensions [mm]
40 x 40 x 66
System
gold-plated contacts; correction factor = 1; Magnetic-field immune; weld coated
Sensing range [mm]
35
Housing
rectangular
Output function
complementary
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
