IM5037 ifm Electronic Electronic Components
Part#:IM5037
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

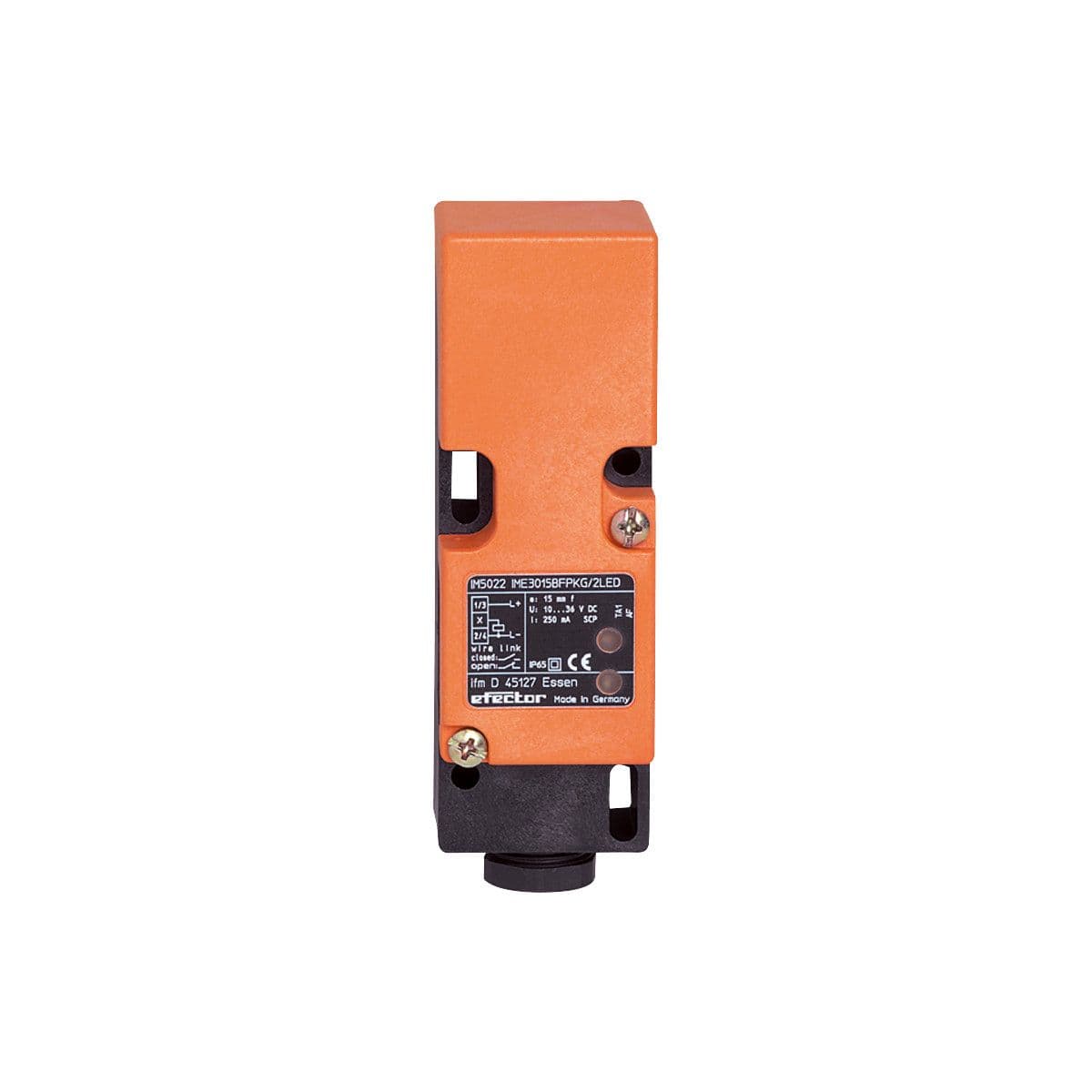

Inductive sensor, Long sensing range for use in conveying, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 15, Housing: rectangular, Dimensions [mm]: 40 x 40 x 120
Product Details
- Short-circuit protection yes
- Max. voltage drop switching output DC [V] 4.6
- Minimum load current [mA] 4
- Switching frequency DC [Hz] 250
- Permanent current rating of switching output DC [mA] 400
- Max. leakage current [mA] 1
- Overload protection yes
- Type of short-circuit protection yes (non-latching)
- Reverse polarity protection yes
- Protection class II
- Operating voltage [V] 10...55 DC
- Dimensions [mm] 40 x 40 x 120
- Housing rectangular
- Sensing range [mm] 15
- Output function normally open / closed; (selectable)
- Electrical design PNP/NPN
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
