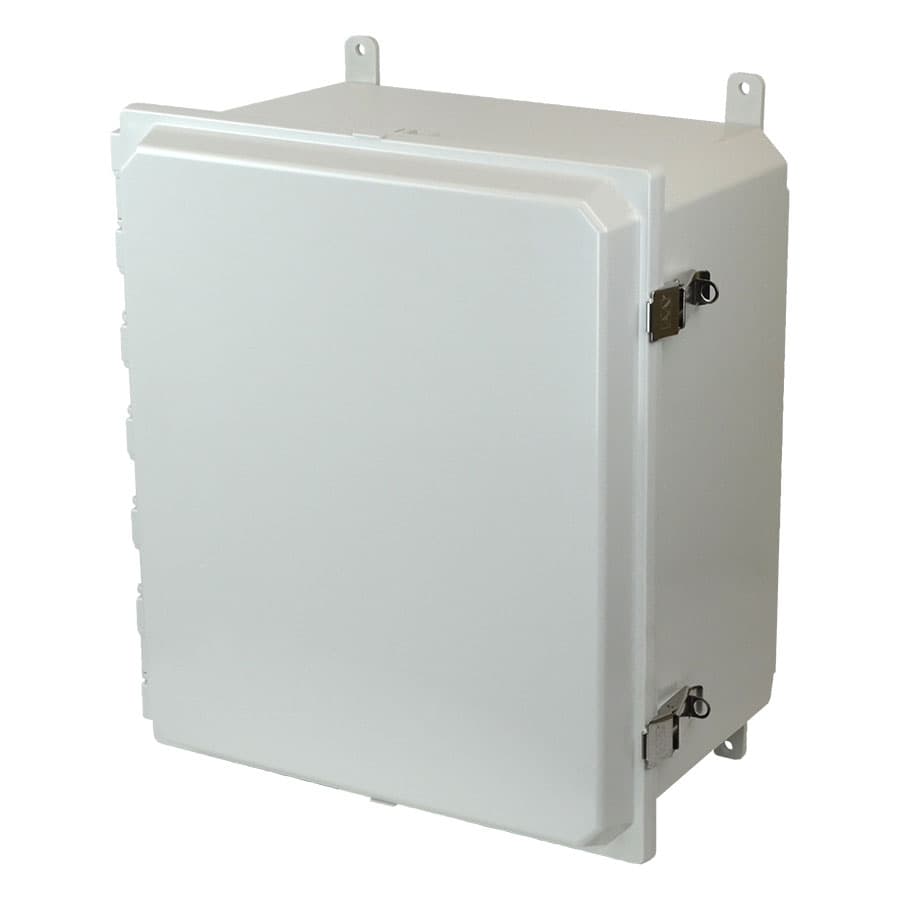

AMP1648L Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  13.98 in
• Height
  15.98 in
• Depth
  7.81 in
• NEMA Rating
  4X
• Material
  Polycarbonate
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Material:
  Polycarbonate box and cover
• Patents:
  U.S. Patent No. 7,572,975
• Country of Origin:
  United States of America
• Color:
  Gray (RAL 7035)
• Carton Quantity:
  1
• UPC:
  85339991274
Carton Weight:
9 lbs
Brand:
POLYLINE®
Volume:
1968 cu. in.
Standards:
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
UNSPSC:
39121324
Depth:
7.81 in
Cover Type:
Opaque
Mounting Description:
Nonmetal feet fastened to back side brass inserts
Enclosure Type:
JIC Size
Closure Type:
Metal Snap Latch
Width:
13.98 in
Height:
15.98 in
Usable Depth:
8.27 in

Related documents AMP1648L Specs
