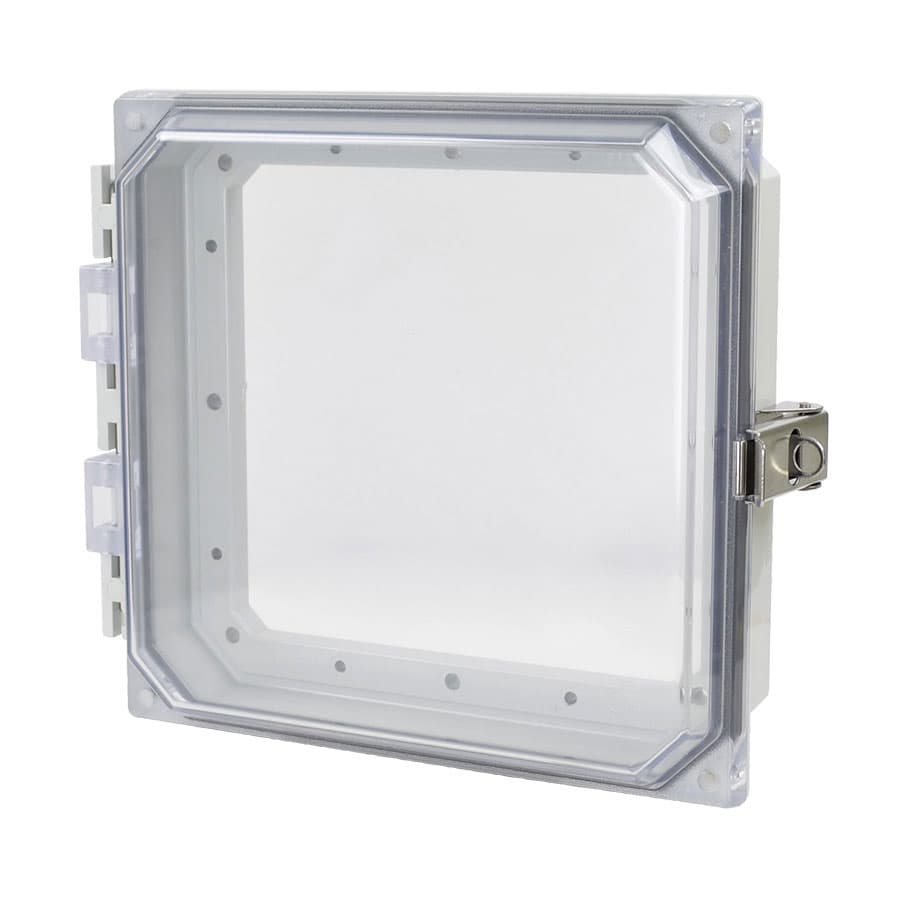

AMHMI88CCL Allied Moulded Products Enclosure Accessories

Product Details

• Width
  8.15 in
• Height
  7.93 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of Type 4X enclosures. No need to open the enclosure to view electronics or perform main
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
• Carton Weight:
  3 lbs
• Material:
  Polycarbonate frame and clear polycarbonate cover
• Country of Origin:
  United States of America
• Color:
  Gray (RAL 7035) with clear cover
• Carton Quantity:
  1
• Mounting Description:
  8 Screws
• Depth:
  0.96 in
• Width:
  8.15 in
• Cover Type:
  Clear Polycarbonate
• UNSPSC:
  39121302
• Usable Depth:
  2.27 in
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• UPC:
  85339978404
Height:
7.93 in
Closure Type:
Metal Snap Latch

Related documents AMHMI88CCL Specs
