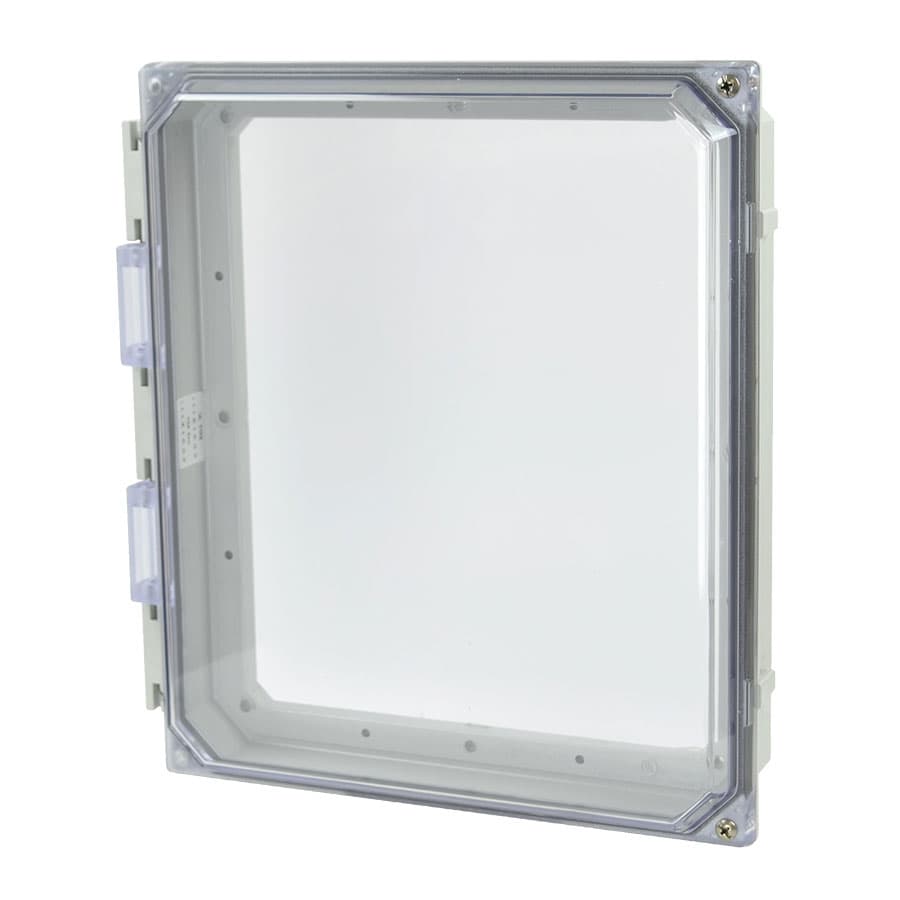

AMHMI120CCH Allied Moulded Products Enclosure Accessories

Product Details

• Width
  10.15 in
• Height
  11.93 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Color
  Gray
• Color:
  Gray (RAL 7035) with clear cover
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
• Carton Quantity:
  1
• Country of Origin:
  United States of America
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Material:
  Polycarbonate frame and clear polycarbonate cover
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• UNSPSC:
  39121302
• Carton Weight:
  4 lbs
• UPC:
  85339991861
• Mounting Description:
  8 Screws
• Cover Type:
  Clear Polycarbonate
• Volume:
  275 cu. in.
• Usable Depth:
  2.27 in
• Closure Type:
  2-Screw
Width:
10.15 in
Height:
11.93 in
Standards:
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Depth:
0.96 in

Related documents AMHMI120CCH Specs
