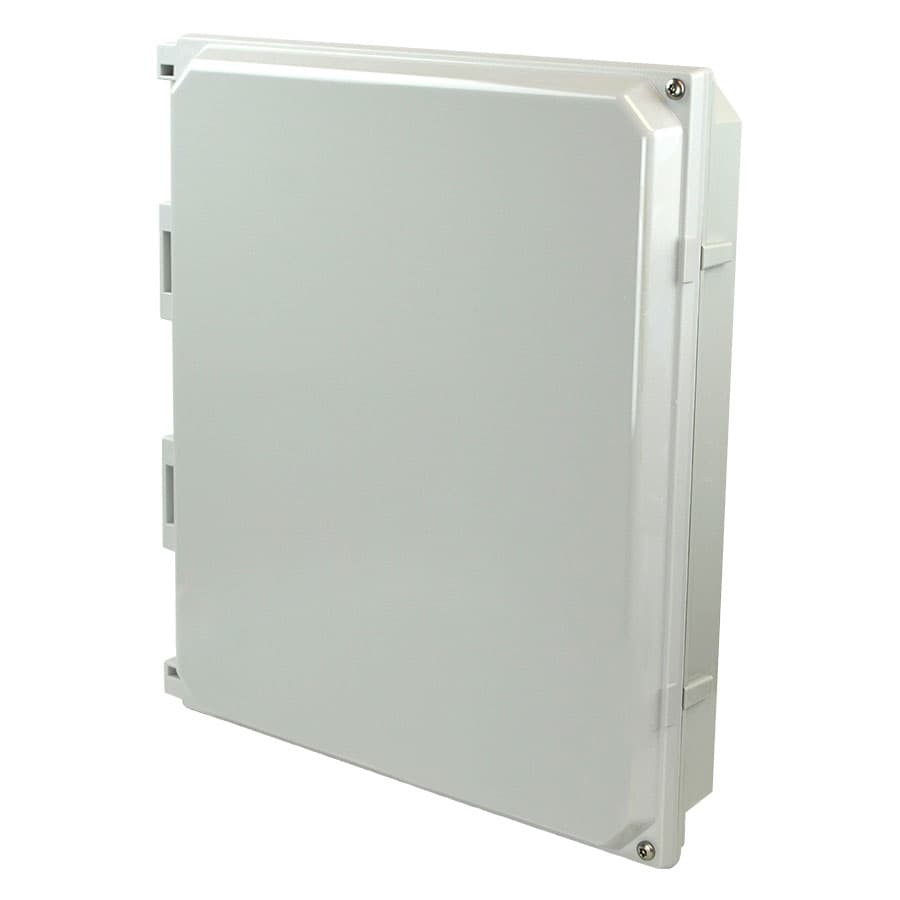

AMHMI142HTP Allied Moulded Products Enclosure Accessories

Product Details

• Width
  12.07 in
• Height
  13.95 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
• Carton Quantity:
  1
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Carton Weight:
  5 lbs
• Material:
  Polycarbonate frame and cover
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• UPC:
  85339991939
• Country of Origin:
  United States of America
• UNSPSC:
  39121302
• Color:
  Gray (RAL 7035)
• Usable Depth:
  2.2 in
• Depth:
  0.96 in
• Volume:
  370 cu. in.
• Cover Type:
  Opaque
• Width:
  12.07 in
Closure Type:
2-Screw (Tamper-Proof)
Height:
13.95 in
Mounting Description:
10 Screws

Related documents AMHMI142HTP Specs
