AMEC3630123PTW Allied Moulded Products Electrical Enclosures
Part#:AMEC3630123PTW
Manufacturer:Allied Moulded Products
Category:Electrical Enclosures
Product Lifecycle:Active
Get a quick Quote!

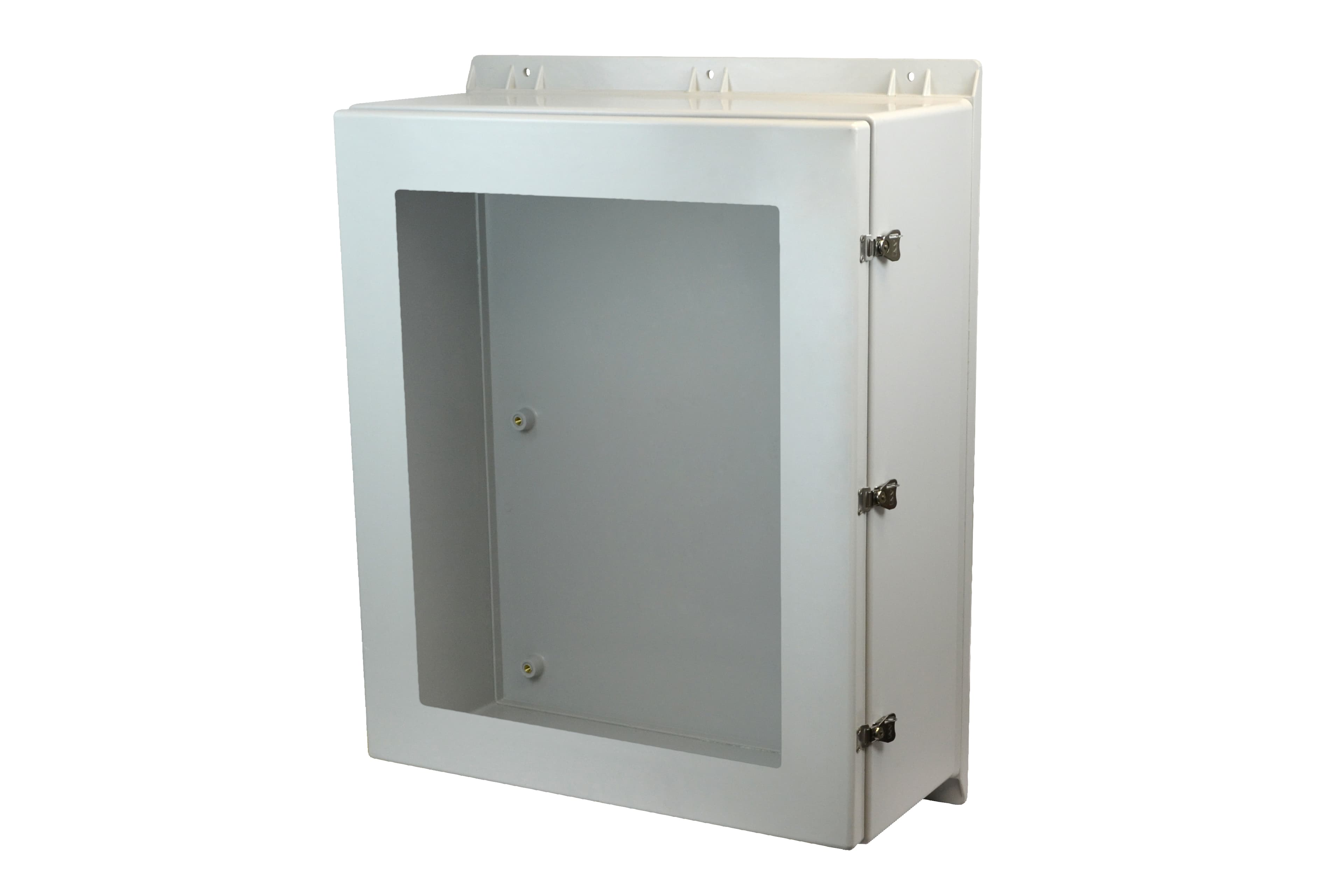

36"x30"x12" Empire Series fiberglass wall mount enclosure assembly with hinged window cover and stainless-steel 3-point latching handle
About the manufacturer: Allied Moulded Products is one of the manufacturers that offers Electrical Enclosures that you can order at Advantage Electric Supply site. Allied Moulded offers a wide range of products for residential and manufactured housing, including fiberglass range/dryer receptacle boxes, floor boxes, lampholders, luminaires, and more. These products are designed to meet the needs of both electrical professionals and DIY enthusiasts.
Check out the AMEC3630123PTW Allied Moulded Products price in the box on the right side or send a quick quote.
Product Details
- UL Standard 508A
- UL CCN NITW
- UL File No. E120175
- Width 30.5 in
- Height 36.5 in
- Depth 12.03 in
- NEMA Rating 4X
- Material Fiberglass
- Color Gray
- Type Wallmount
- Door Qty 1
- Application: Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
- Features: Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a formed-in-place polyurethane gasket system.
- Additional Materials: 316 stainless steel external hardware, Brass inserts, Plated carbon steel internal hardware, Polyurethane (FIP) Formed-In-Place gasket system
- Color: Gray (RAL 7035) with clear window
- Carton Quantity: 1
- UPC: 85339972280
- Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
- Brand: Empire Series
- Country of Origin: United States of America
- Carton Weight: 79 lbs
- UNSPSC: 39121324
- Closure Type: 3-Point Handle
- Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
- Usable Depth: 12.48 in
- Volume: 15062 cu. in.
- Enclosure Type: Wall Cabinets
- Cover Type: Opaque with Viewing Window
- Mounting Description: Molded flange
- Height: 36.5 in
- Width: 30.5 in
- Depth: 12.03 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents AMEC3630123PTW Specs
